Nortel BCM50a - Appendix E Hardware specifications; Cable pin assignments

229
BCM50a Integrated Router Configuration — Advanced
Appendix E
Hardware specifications
Cable pin assignments

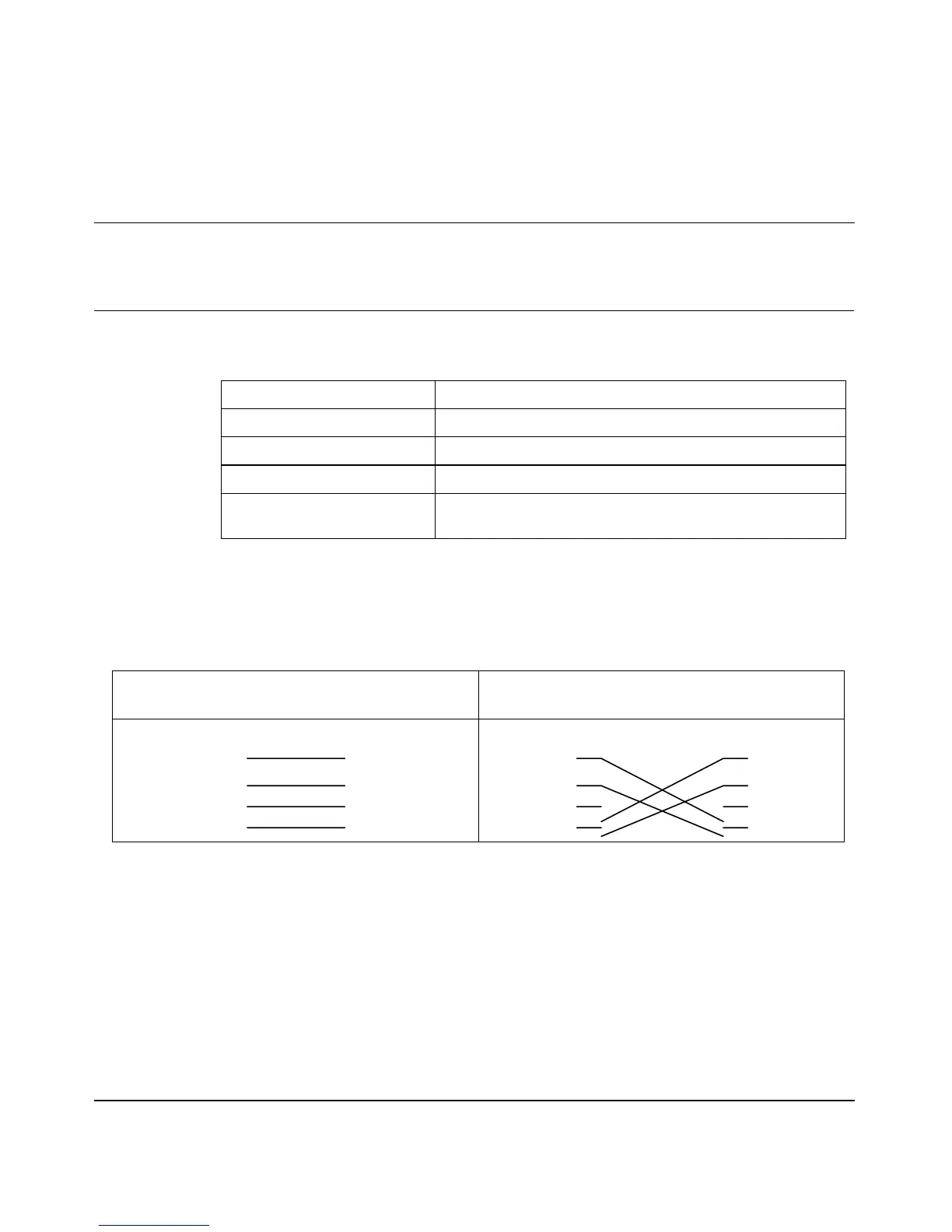

Figure 134 Ethernet cable pin assignments
Table 42 General specifications
Power Specification I/P AC 100~240V 50/60Hz; O/P DC 18V 1.1A
MTBF 266997 hrs (Mean Time Between Failures)
Operation Temperature 0º C ~ 40º C
ADSL Specification for WAN ADSL/ADSL2/ADSL2+ with TR-067 compliance
Ethernet Specification for
LAN/ VPN Ports
10/100Mb/s Half / Full autonegotiation, autosensing
WAN/LAN Ethernet Cable Pin Layout:
Straight-Through Crossover
(Switch)
1 IRD +
(Adapter)
1 OTD +
(Switch)
1 IRD +
(Switch)
1 IRD +
2 IRD - 2 OTD - 2 IRD - 2 IRD -
3 OTD + 3 IRD + 3 OTD + 3 OTD +
6 OTD - 6 IRD - 6 OTD - 6 OTD -
