Nortel BCM50a - Figure 112 IP Alias

Appendix B Triangle Route 207
BCM50a Integrated Router Configuration — Advanced
2 The BCM50a Integrated Router reroutes the packet to Gateway B, which is in
Subnet 2.
3 The reply from WAN goes to the BCM50a Integrated Router.
4 The BCM50a Integrated Router ends the response to the computer in Subnet
1.

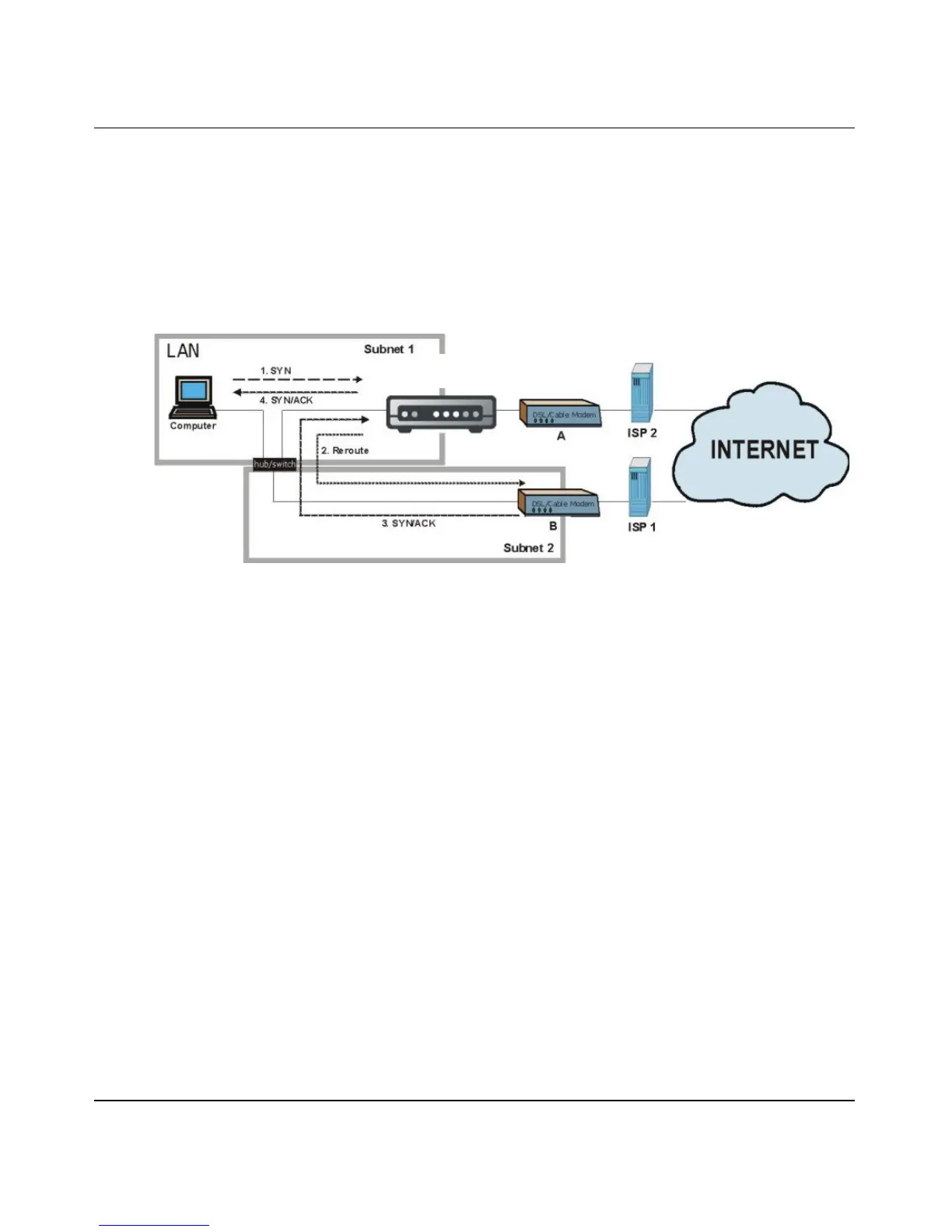

Figure 112 IP Alias
BCM50a Integrated Router
WAN
