Novanta ScanMaster User Manual

Installation
1040-0011 Revision 24
15V – 48V
Power Supply
V+
V-
1
2
3
CHASSIS
6
4
5
J1
RED
BLACK
WHITE
GREEN
Cable SMC-PWR-01 or
equivalent
+/- 15(24)V
XY2-100
Scan-head
Power Supply
V+
V-
COM
NOTE: The Scan-head Power Supply Common must be
connected to the SMC V- signal to avoid damage to the
SMC or Scan-head interface circuitry
To Scan-head

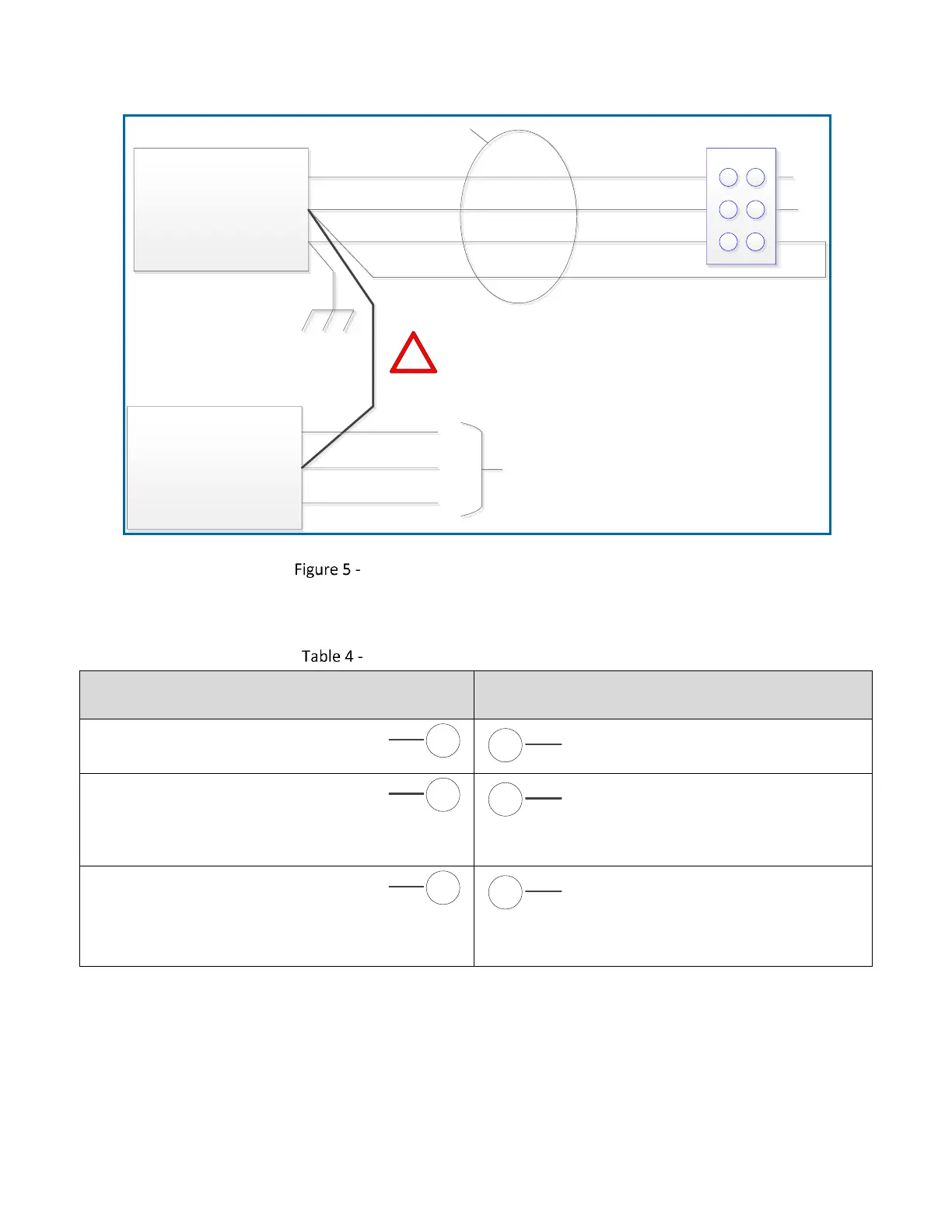

Recommended Power Supply Connections
The following tables contain full descriptions of the signals on the J1 Connector and the J3 Connector.
Connector J1 (Power) Signal Descriptions
Pins 1 – 3
Pins 4 – 6
V+
15-48 Volts referenced to V-
1
4
V+
15-48 Volts referenced to V-
V-
Return for V+
Note: This pin and Pin 6 (GND) should be at
the same voltage level.
2
5
V-
Return for V+
CHASSIS
Expected to be tied to earth ground
3
6
GND
Digital ground reference
Note: This pin and Pin 2 (V-) should be at the
same voltage level.
