Installation
1040-0011 Revision 45

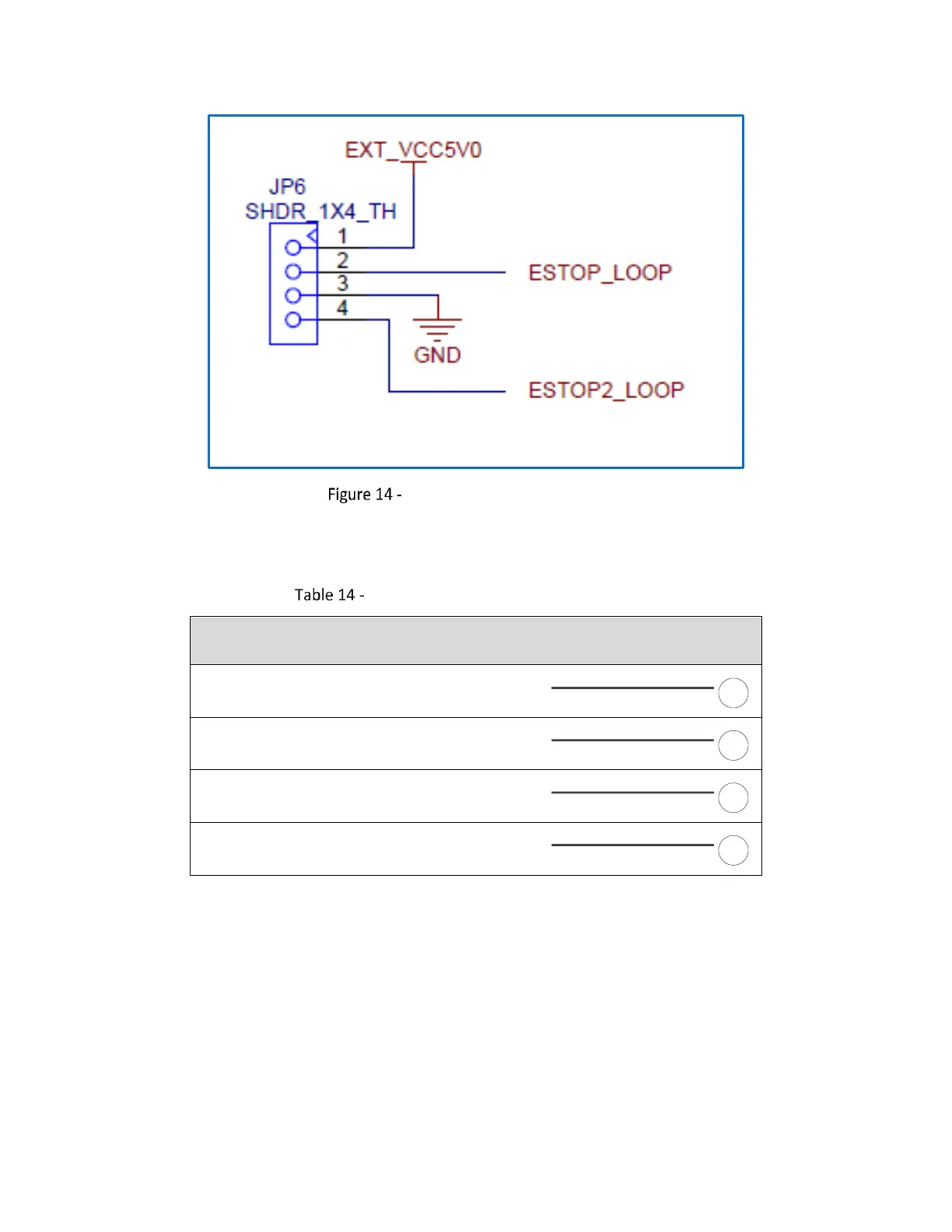

Connector JP6 (E-STOP) Pinouts
The following table contains a full description of the signal for each pin in the JP6 Connector.
Connector JP6 (E-STOP) Signal Descriptions
Pins 1 4
EXT_VCC5V0
SMC supplied +5V source
1
ESTOP_LOOP
Signal ESTOP_LOOP on J18 pins 20 and 49
2
GND
Digital ground reference
3
ESTOP2_LOOP
Signal ESTOP2_LOOP on J18 pins 24 and 50
4
