Novanta ScanMaster - System Control Inputs - J13 and J16; START Input - J17 and J15; Signal Conditioning for System Control Inputs (J13 and J16); Signal Conditioning for START Input (J17 and J15)

Installation
1040-0011 Revision 50
4.6.5 System Control Inputs – J13 and J16
AUX_START_ISO
AUX_RESET_N_ISO
AUX_ABORT_ISO
VCC
4.7K
AUX_COM_ISO
3
3
X 3
J13 & J16 Signals
Internal System
Control Signals

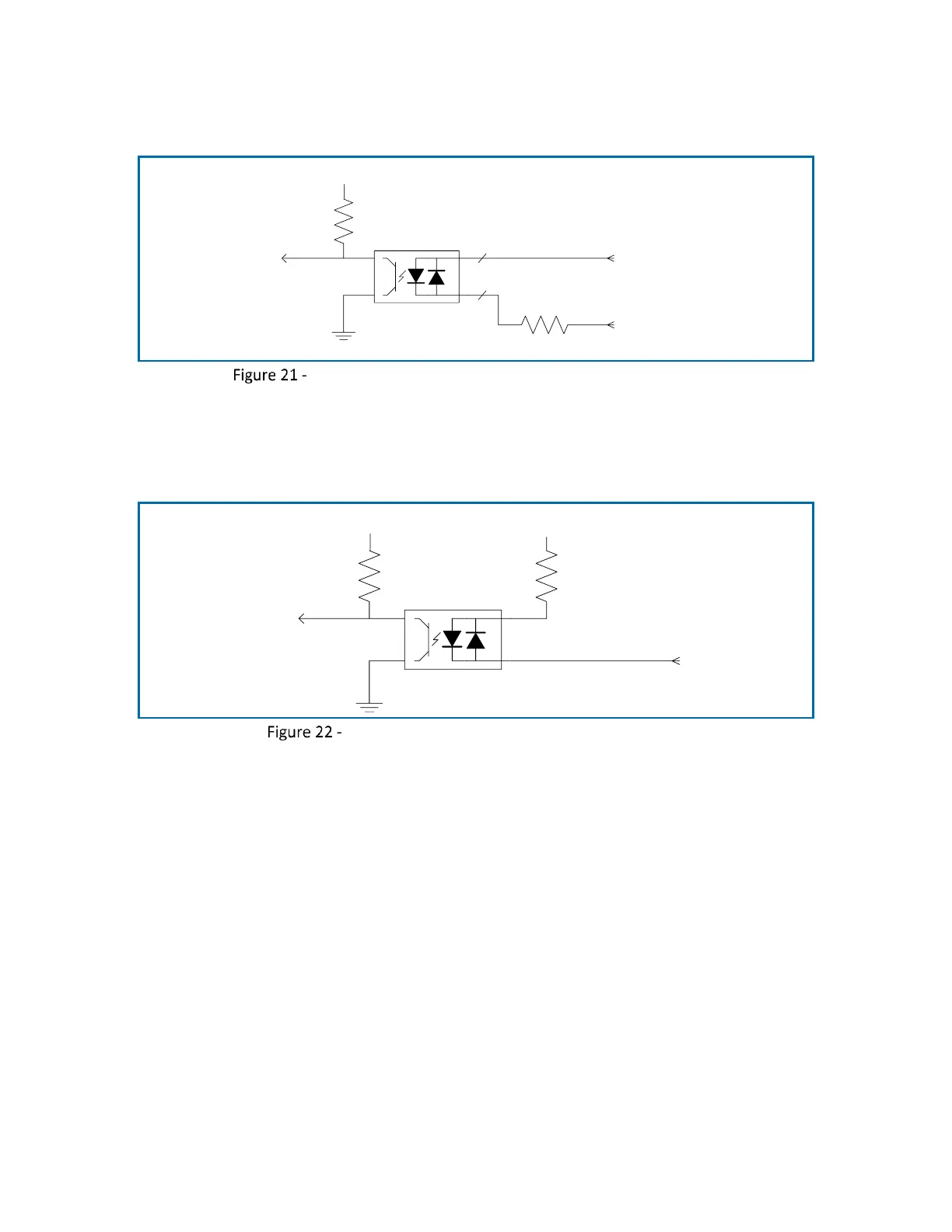

Signal Conditioning for System Control Inputs (J13 and J16)
4.6.6 START Input – J17 and J15
VCC
Internal System
Control Signals
J17 & J15 Signal
START
+5V
Signal Conditioning for START Input (J17 and J15)
