Appendix A - SMC-IO-01 Auxiliary I/O Module
1040-0011 Revision 59

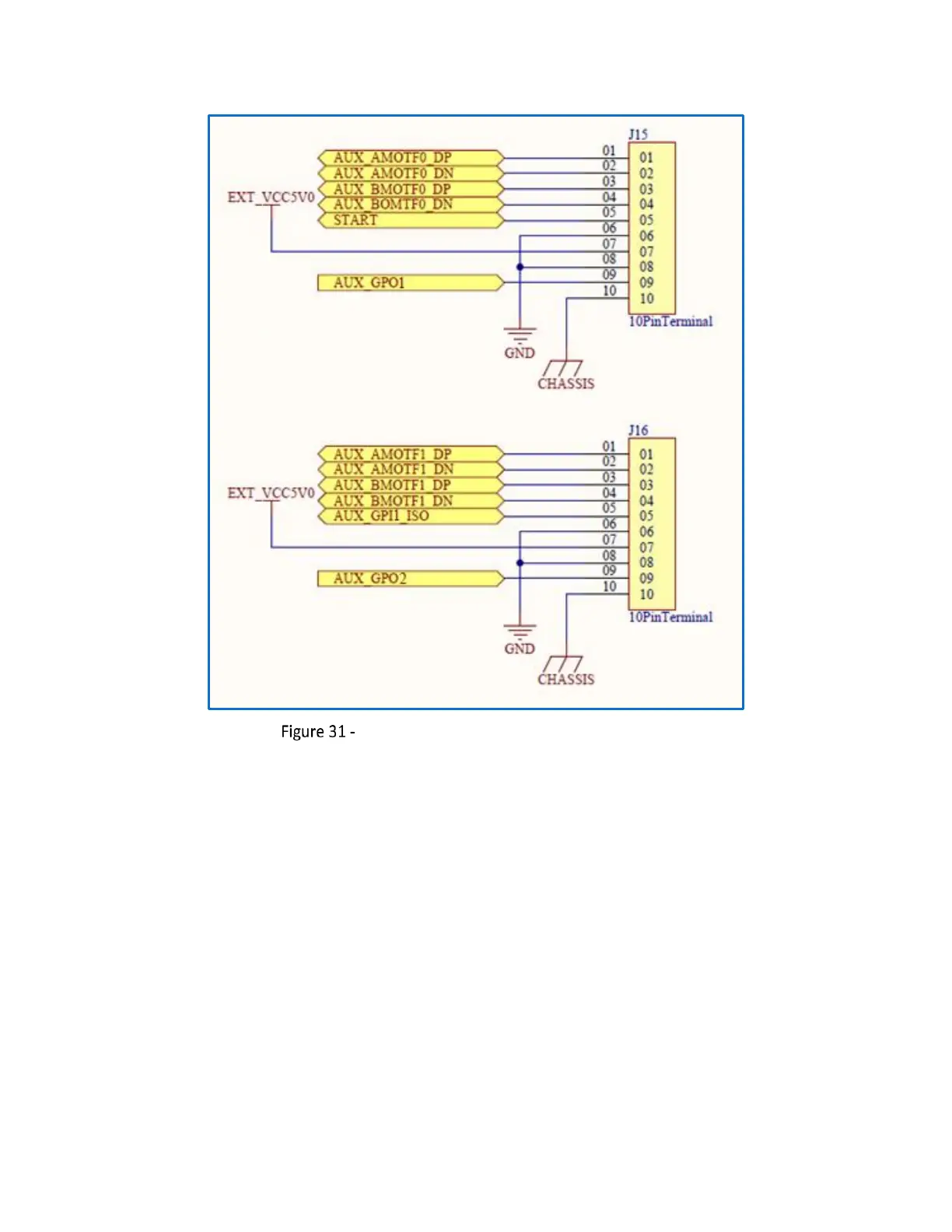

J15 MOTF Port 0 (X) and J16 MOTF Port 1 (Y)
5.3.5 J6 and J8 – Extended Digital Inputs
These inputs are 5- to 24V-compatible optically isolated inputs. The inputs can be sourcing or sinking
depending on the connection of the COM input. The signal conditioning is shown below in Figure 34 -
Extended Inputs Signal Conditioning.
Note: EXT_VCC5V0 is an internally supplied voltage. +24V is expected to be externally supplied. This
signal is also connected to the SMC main module +24V input, which is described in Section 4.5.1
("Power Signal Pinouts (Connectors J1 and J3)").
To Next Page
