Installation
1040-0011 Revision 37

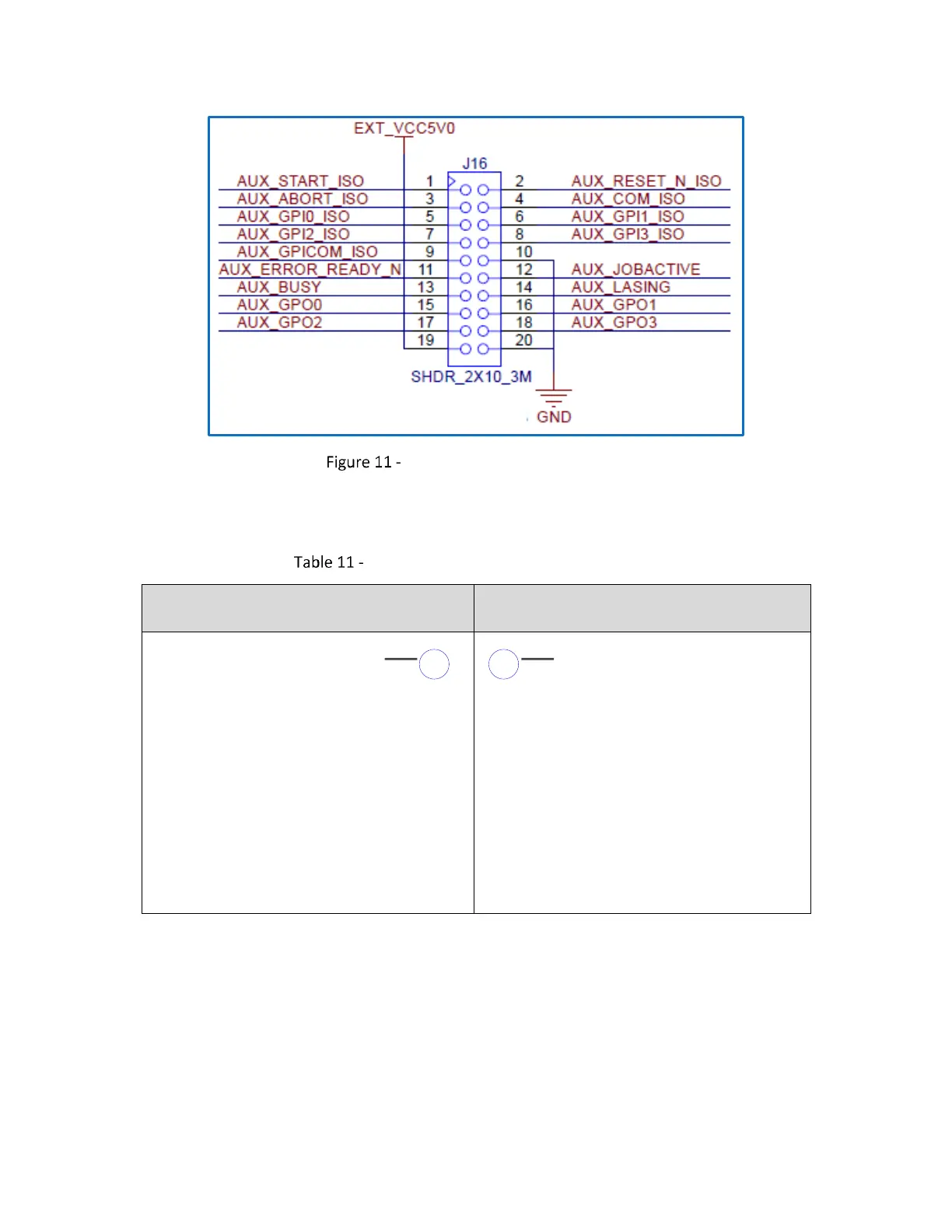

Connector J16 (Control) Pinouts
The following table contains a full description of the signal for each pin in the J16 Connector.
Connector J16 (Control) Signal Descriptions
Odd-numbered Pins (1 – 19)
Even-numbered Pins (2 – 20)
AUX_START_ISO
A marking job may contain an
instruction that causes a pause in
execution until this signal is
asserted by external equipment.
Note: This function can also be
achieved using the AUX_START
and START signals.
AUX_RESET_N_ISO
Causes the SMC to execute a soft
reset forcing a complete re-
initialization of the firmware.
This signal must be actively driven
to activate:
If AUX_COM_ISO is tied to GND
then drive to VCC.
If AUX_COM_ISO is tied to VCC
then drive to GND.
Note: The board may take up to
30 seconds to reinitialize.
To Next Page
