Appendix B - SMC-LSR-01 IPG Laser Adapter
1040-0011 Revision 66
6 APPENDIX B - SMC-LSR-01 IPG LASER ADAPTER
6.1 INTRODUCTION
The IPG Laser Adapter provides convenient connectivity from the SMC Laser Connector (J18) to the
25-pin D-SUB Connector used by IPG Laser on their low-power YLP models.
The IPG Laser Adapter has the following features:
• Direct plug-in to the SMC Laser Connector (J18)
• Various cable lengths terminating in a bulk-head mountable female 25-pin D-SUB
connector.
• Signaling support for the IPG low-power YLP fiber laser family via the 25-pin D-SUB
Connector.
Note: The SMC-LSR-01 adapter cannot be used without modification with IPG YLP-HP lasers with a
Type B interface. The required modifications to this adapter for Type B interface compatibility are
described in Table 18 - and Table 19 -. Alternatively, a custom cable can be used between the 25P D-
Sub connector of the SMC-LSR-01 adapter and the YLP-HP laser. The pin mappings of such a cable
are described in
6.2 MECHANICAL LAYOUT

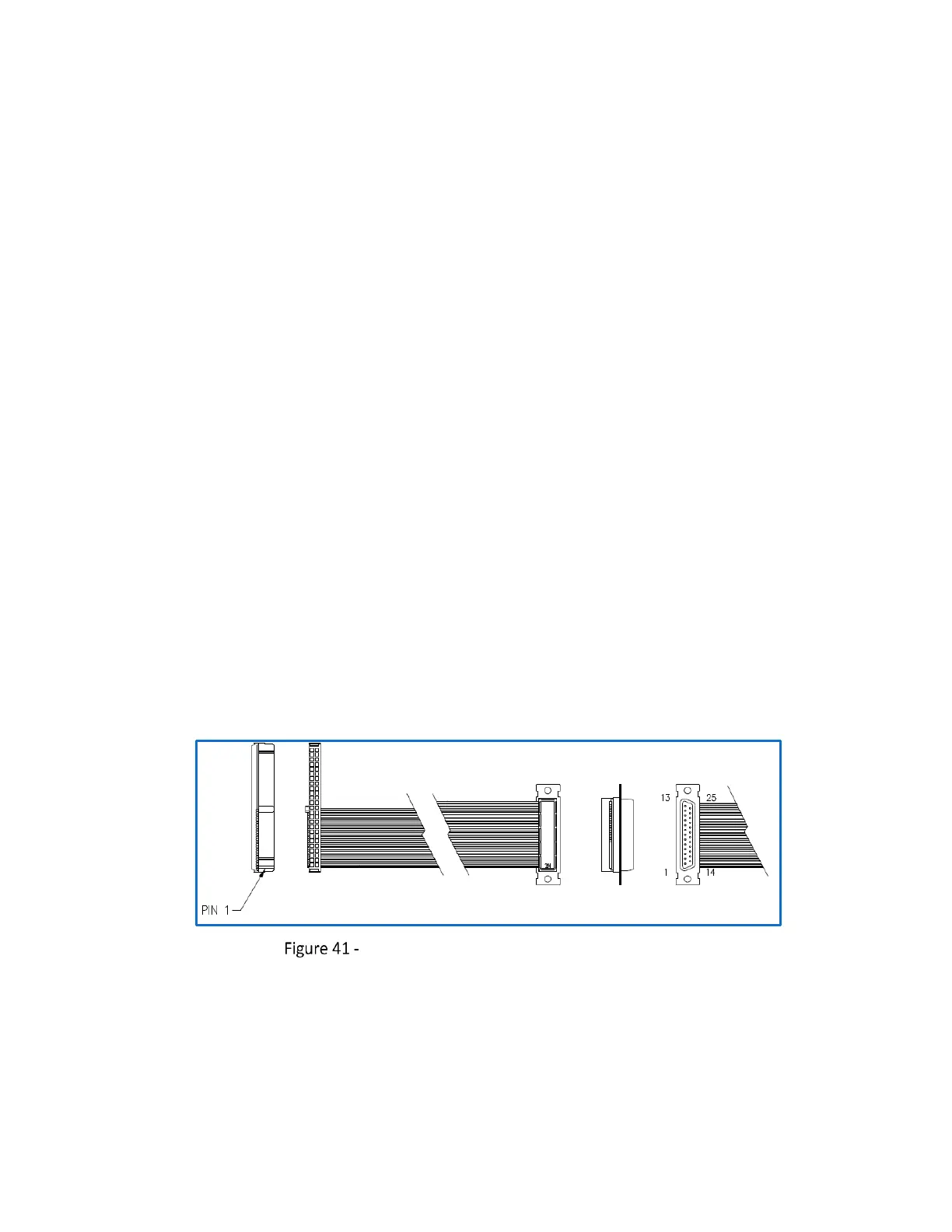

IPG Laser Adapter Cable Mechanical Layout
