Novanta ScanMaster - Connector J18 (Laser) Pinouts; Connector J18 (Laser) Signal Descriptions

Installation
1040-0011 Revision 41

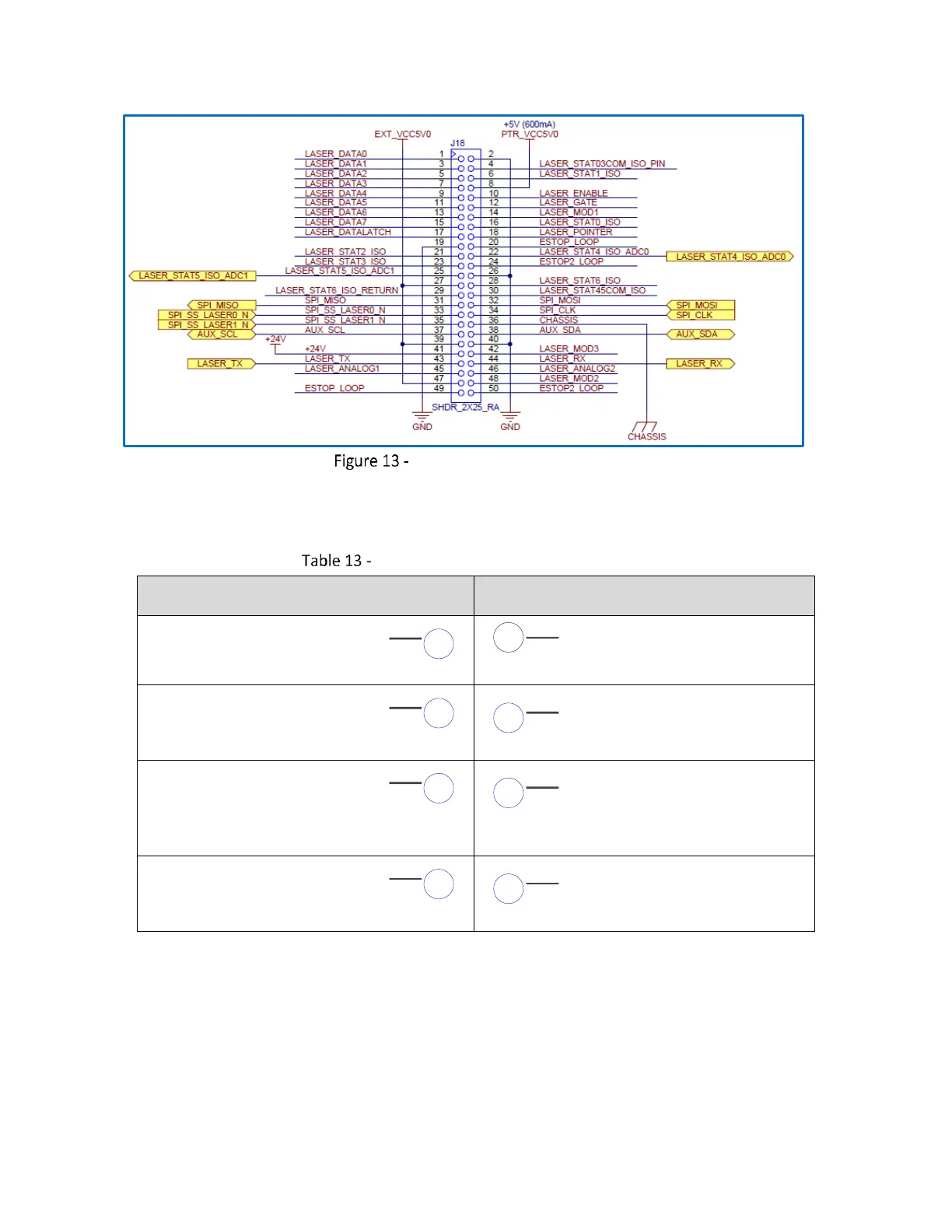

Connector J18 (Laser) Pinouts
The following table contains a full description of the signal for each pin in the J18 Connector.
Connector J18 (Laser) Signal Descriptions
Odd-numbered Pins (1 – 49)
Even-numbered Pins (2 – 50)
LASER_DATA0
Digital data representing a laser
power setting
1
2
GND
Digital ground reference
LASER_DATA1
Digital data representing a laser
power setting
3
4
LASER_STAT03COM_ISO_PIN
Optical isolation common for status
signals 0 - 3
LASER_DATA2
Digital data representing a laser
power setting
5
6
LASER_STAT1_ISO
General purpose status read back.
See notes on Interlock behavior,
below.
LASER_DATA3
Digital data representing a laser
power setting
7
8
PTR_VCC5V0
5 Volts available for laser pointer
power
