Appendix A - SMC-IO-01 Auxiliary I/O Module
1040-0011 Revision 55
5.2 MECHANICAL LAYOUT

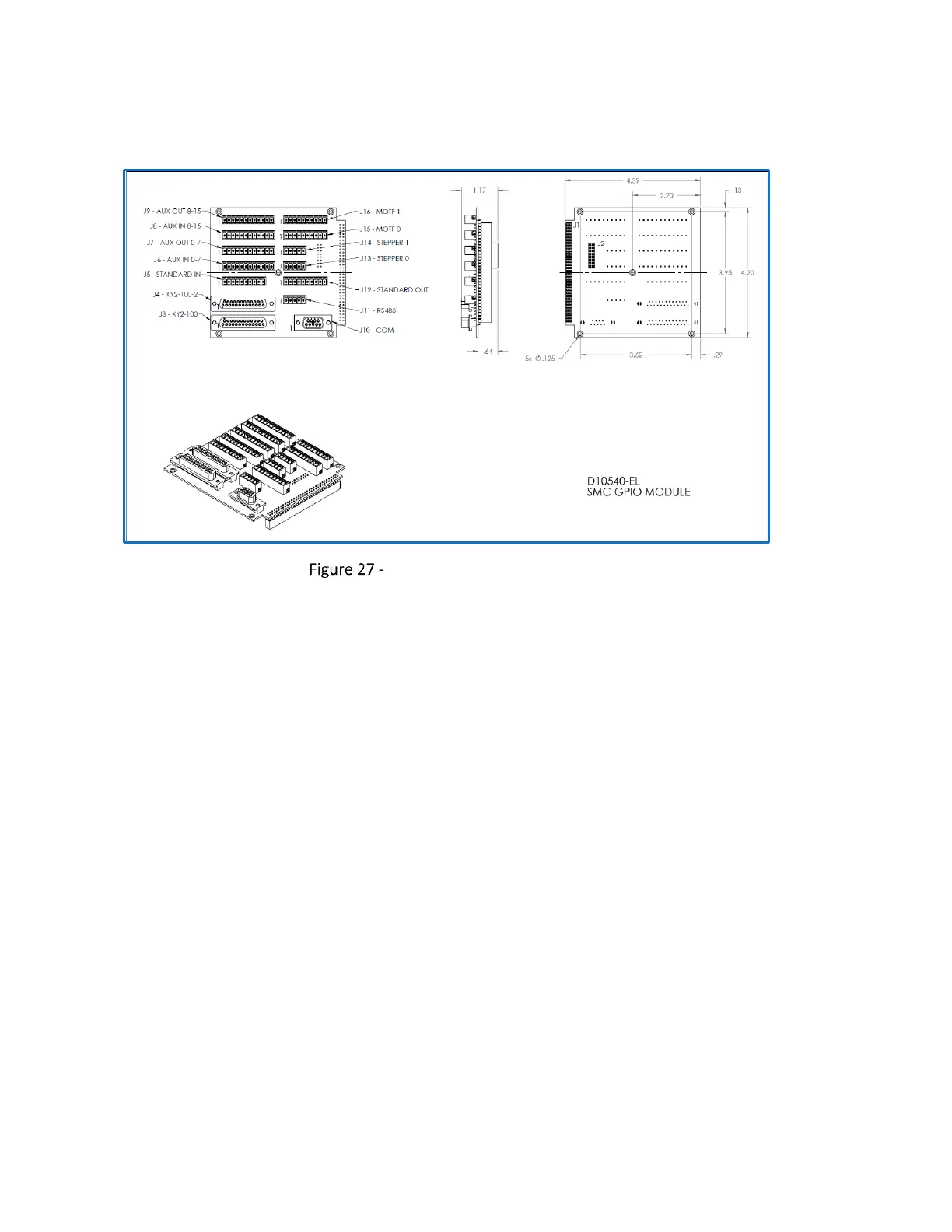

Auxiliary I/O module outline drawing
Regardless of the product family (Lightning II or ProSeries 2), the mechanical installation of the 3-Axis
Scanning System should proceed as described in the following pages.
5.3 CONNECTORS
5.3.1 J3 AND J4 - XY2 - 100 PORTS
Port 1 is the same port as on the XY2-100 Connector of the SMC Main Module. For a description of
the XY2-100 Connector of the SMC Main Module, refer to Section 4.5.3 ("XY2-100 Signal Pinouts
(Connector J11)") on page 20.
Port 2 is created from the SMC single-ended AUX_XY2 signal set by using differential drivers and
receivers.
Note: Pins 26 and 27 in the following drawing are a connector shell.
