Appendix A - SMC-IO-01 Auxiliary I/O Module
1040-0011 Revision 64

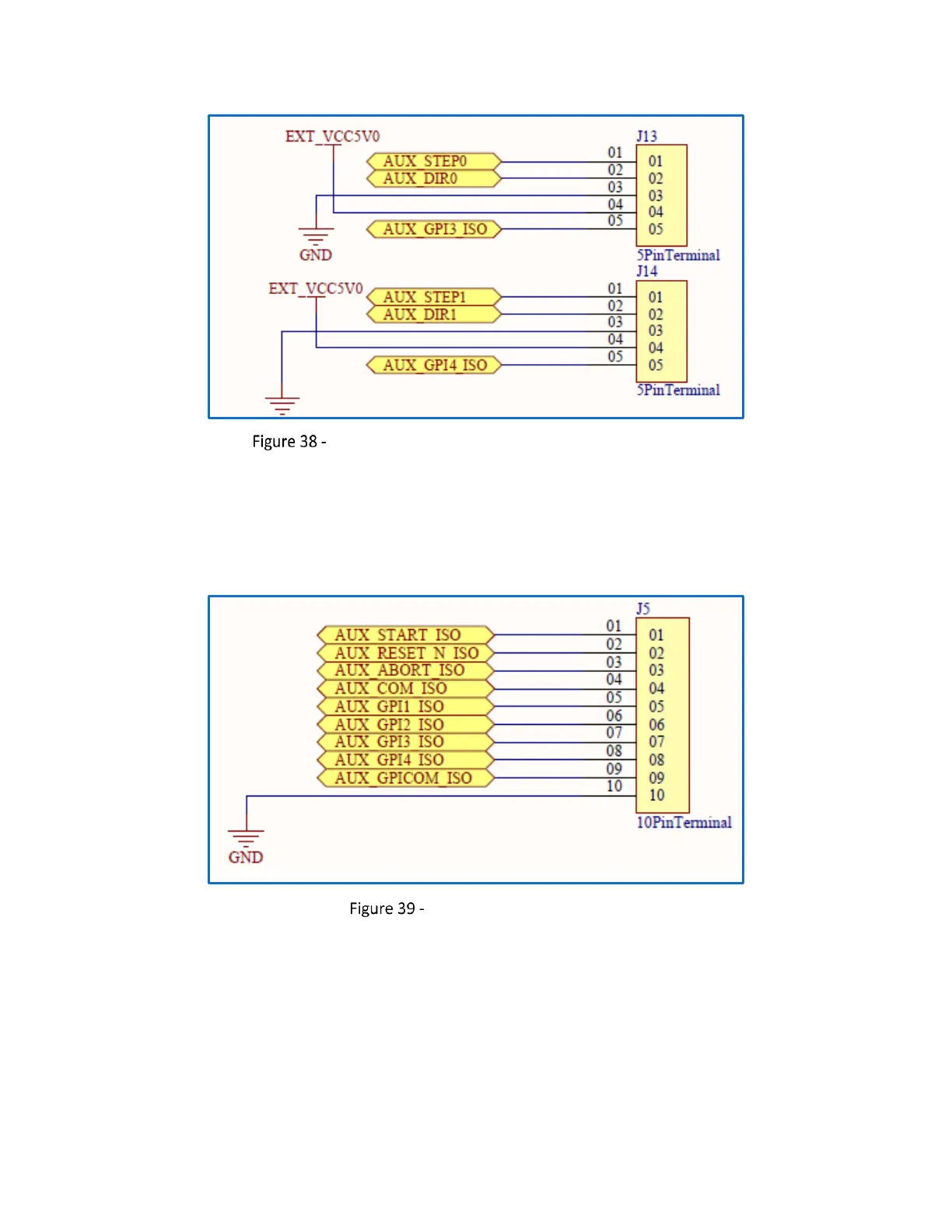

J13 and J14 External Motor Control Port 0 and Port 1
5.3.8 J5 and J12 - System Control Inputs and Outputs
These signals are the same as those for the Control Signals on Connector J16 of the SMC Main
Module. For descriptions of these signals, refer to Table 11 - Connector J16 (Control) Signal
Descriptions.
J5 System Control Inputs
Note: The silkscreen on Rev C of this module incorrectly labels AUX_GPI[1-4] as GPI[0-3]. This is
fixed in later revisions.
