104
While the NORM DIVE MAIN screen is displayed, press/
release the A button (< 2 sec) to view NORM DIVE ALT 1.
While the NORM DIVE ALT 1 screen is displayed, press/
release the A button (< 2 sec) to view NORM DIVE ALT 2.
Press/hold the A button (2 sec) to view the Secondary
Display (Temperature/Time).
Press/hold the M button (2 sec) to access the TMT 2-3 USE
screen and Gas Switch Routine (or Buddy Pressure Check).

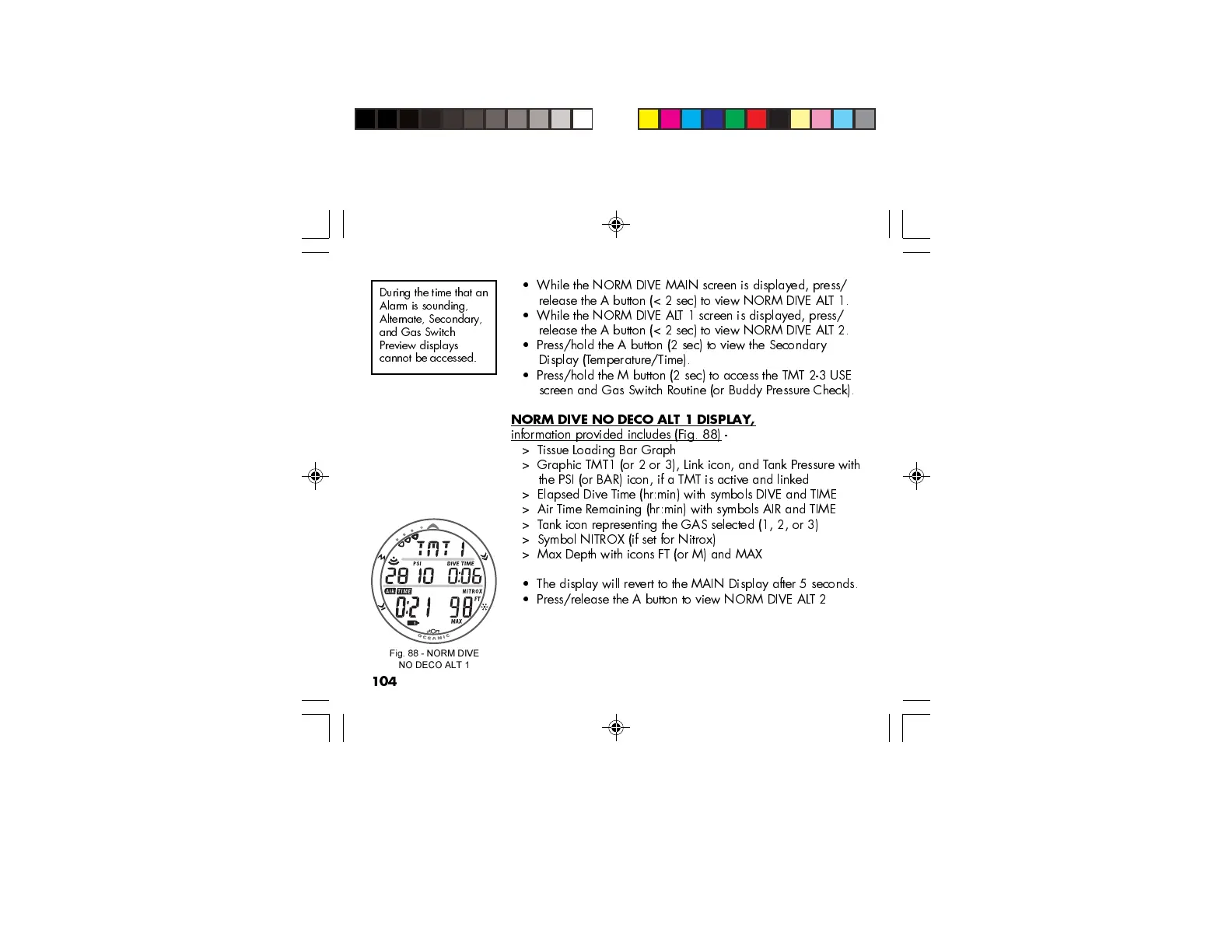

NORM DIVE NO DECO ALT 1 DISPLAY,
information provided includes (Fig. 88) -
> Tissue Loading Bar Graph
> Graphic TMT1 (or 2 or 3), Link icon, and Tank Pressure with
the PSI (or BAR) icon, if a TMT is active and linked
> Elapsed Dive T ime (hr:min) with symbols DIVE and TIME
> Air T ime Remaining (hr:min) with symbols AIR and TIME
> Tank icon representing the GAS selected (1, 2, or 3)
> Symbol NITROX (if set for Nitrox)
> Max Depth with icons FT (or M) and MAX
The display will revert to the MAIN Display after 5 seconds.
Press/release the A button to view NORM DIVE ALT 2
Fig. 88 - NORM DIVE
NO DECO ALT 1
During the time that an
Alarm is sounding,
Alternate, Secondary,
and Gas Switch
Preview displays
cannot be accessed.
