NORM DIVE NO DECO ALT 2 DISPLAY
(if set for Nitrox),
Information includes (Fig. 89) -
> O2 Bar Graph and symbol O2BG (O2 accumulated)
> TMT Link icon, if a TMT is active and linked
> Graphic GAS1 (or 2 or 3)
> Level of PO2 (ATA) with graphic PO2
> FO2 Setting and symbol FO2
> Tank icon representing the GAS selected (1, 2, or 3)
> Symbol NITROX (if set for Nitrox)
> Current Depth and symbol FT (or M)
The display will revert to the MAIN Display after 5 seconds.
NORM DIVE NO DECO SECONDARY DISPLAY,
informa-
tion includes (Fig. 90) -
> Day of the Week graphic (MON, TUE, etc.)
> Temperature with degrees icon and graphic F (or C)
> Time of Day (hour:minute:second).
This will be the Default Watch Time selected (MAIN or
ALTERNATE).
The display will revert to the MAIN Display after 5 seconds.
NOTE: The Alternate and Secondary Displays
cannot be accessed during the time when an
Alarm is sounding.

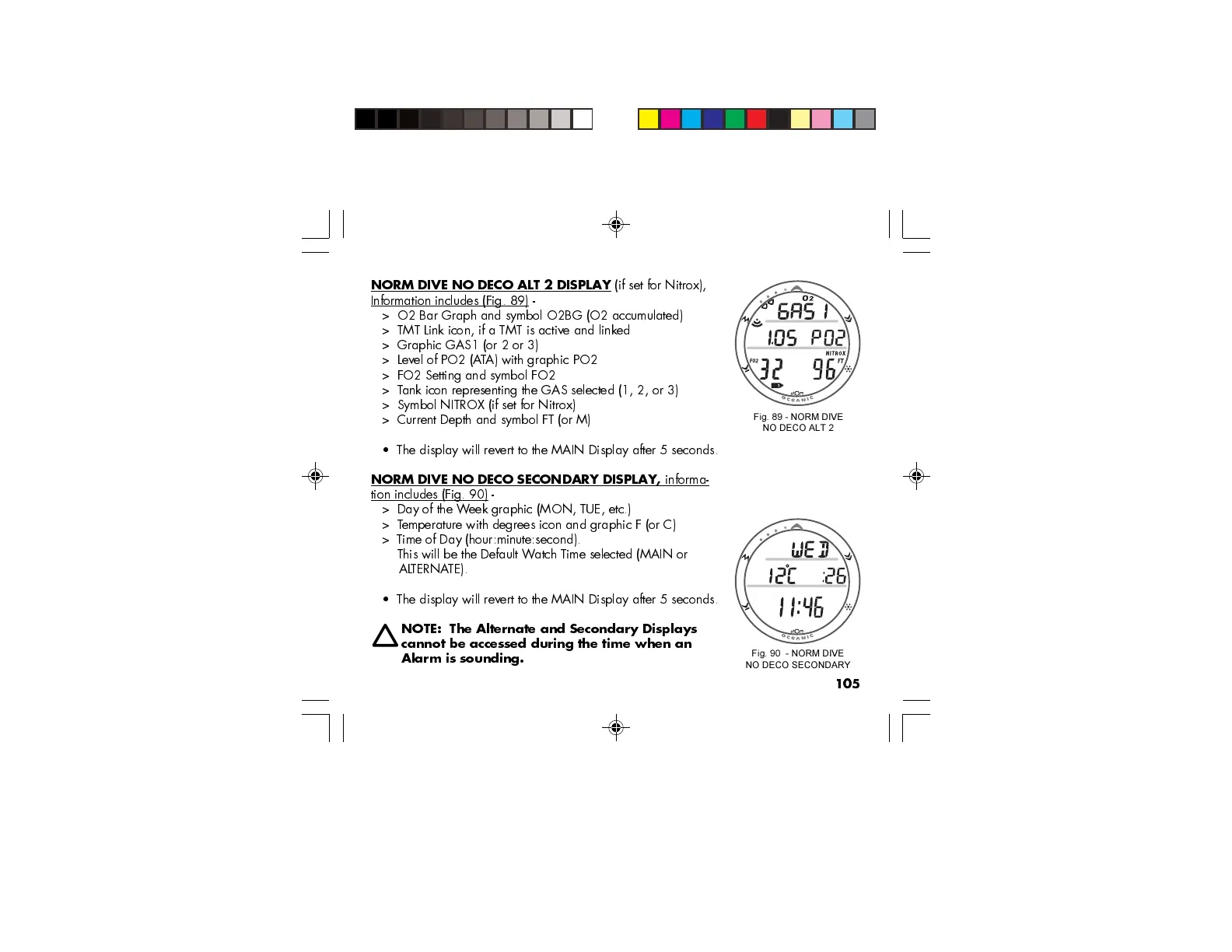

Fig. 89 - NORM DIVE
NO DECO ALT 2
Fig. 90 - NORM DIVE
NO DECO SECONDARY
