DECO STOP ALT 1 DISPLAY,
information includes (Fig. 95) -
> Tissue Loading Bar Graph (all segments)
> Graphic TMT1 (or 2 or 3), Link icon, and Tank Pressure
with the PSI (or BAR) icon, if a TMT is active and linked
> Elapsed Dive Time (hr:min) with symbols DIVE and TIME
> Air Time Remaining (hr:min) with symbols AIR and TIME
> Tank icon representing the GAS selected (1, 2, or 3)
> Symbol NITROX (if set for Nitrox)
> Max Depth with icons FT (or M) and MAX
The display will revert to the DECO STOP MAIN Display
after 5 seconds.
Press/release the A button to view DECO STOP ALT 2.
DECO STOP ALT 2 DISPLAY,
information includes (Fig. 96) -
> O2 Bar Graph and symbol O2BG (O2 accumulated)
> Graphics GAS1 (or GAS2 or GAS3)
> Link icon, if a TMT is active and linked
> Level of PO2 (ATA) with graphic PO2
> FO2 Setting and symbol FO2
> Tank icon representing the GAS selected (1, 2, or 3)
> Symbol NITROX
> Current Depth and symbol FT (or M)
The display will revert to the DECO MAIN after 5 seconds.

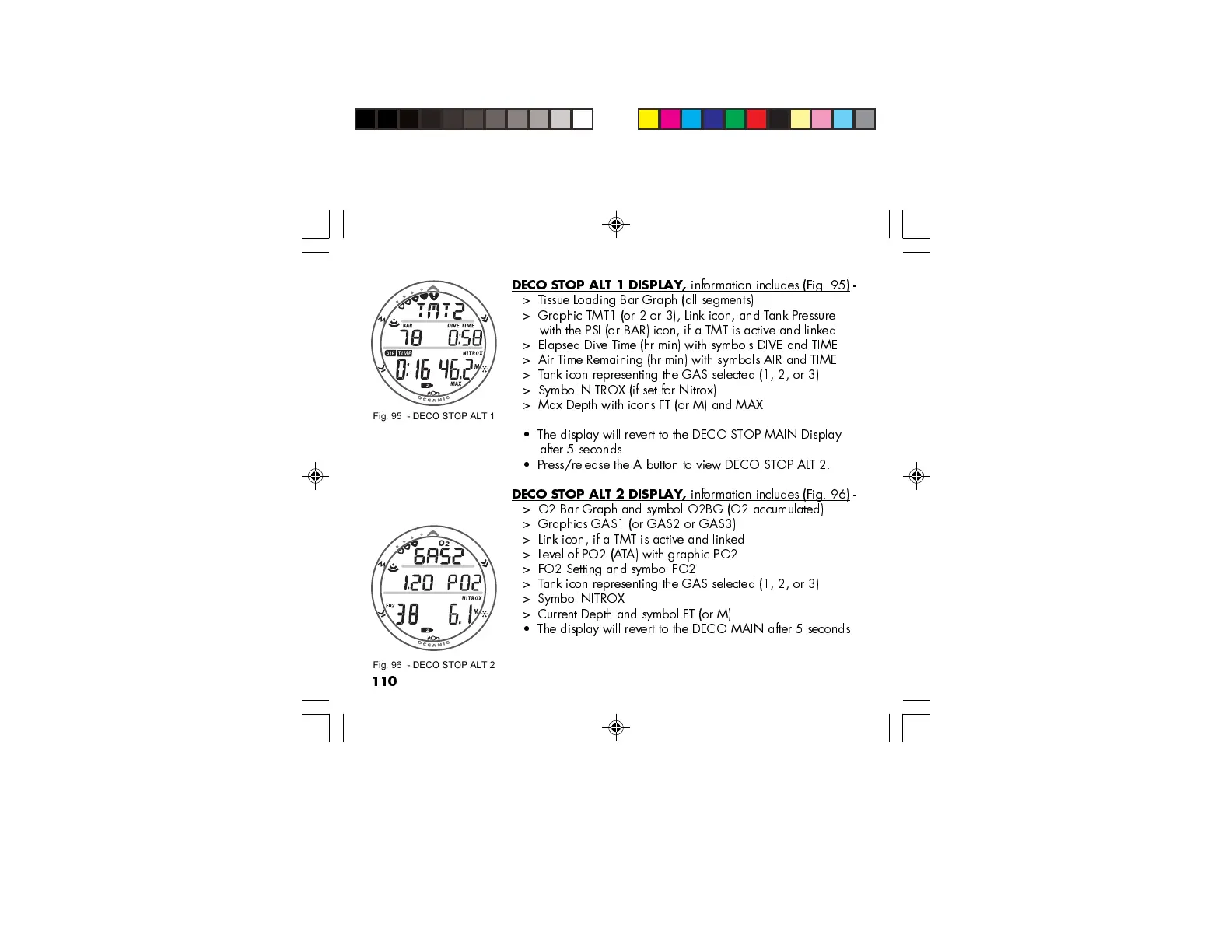

Fig. 95 - DECO STOP ALT 1
Fig. 96 - DECO STOP ALT 2
