114
Upon ascending above 330 FT (100 M), the Current Depth display will be restored,
however Max Depth will only display 3 dashes for the remainder of that dive. Also, the
Log for that dive will display 3 dashes as the Max Depth achieved.
IMMEDIATE VIOLATION AND VIOLA GAUGE MODE
If a Decompression Ceiling Stop Depth much greater than 60 FT (18 M) is required, an
Immediate Violation Mode will be entered. This situation would be preceded by entering
Delayed Violation Mode #2.
The ATOM would then operate in Violation Gauge Mode
during the remainder of that
dive and for 24 hours after surfacing. Violation Gauge Mode turns the ATOM into a
digital instrument without any decompression or oxygen monitoring functions.
VIOLATION GAUGE DIVE MAIN DISPLAY (Default),
information provided includes (Fig. 102) -
> Full TLBG and UP Arrow, flashing
> Message UP > VIOL, scrolling
> TMT Link icon and Tank Pressure with the PSI (or BAR) icon,
if a TMT is active and linked
> Elapsed Dive T ime (hr:min) with symbols DIVE and TIME
> Symbols TIME and NDC with 0:00 (hr:min) Time Remaining
> Tank icon representing the GAS selected (1, 2, or 3)
> Symbol NITROX (if set for Nitrox)
> Current Depth with symbol FT (or M)

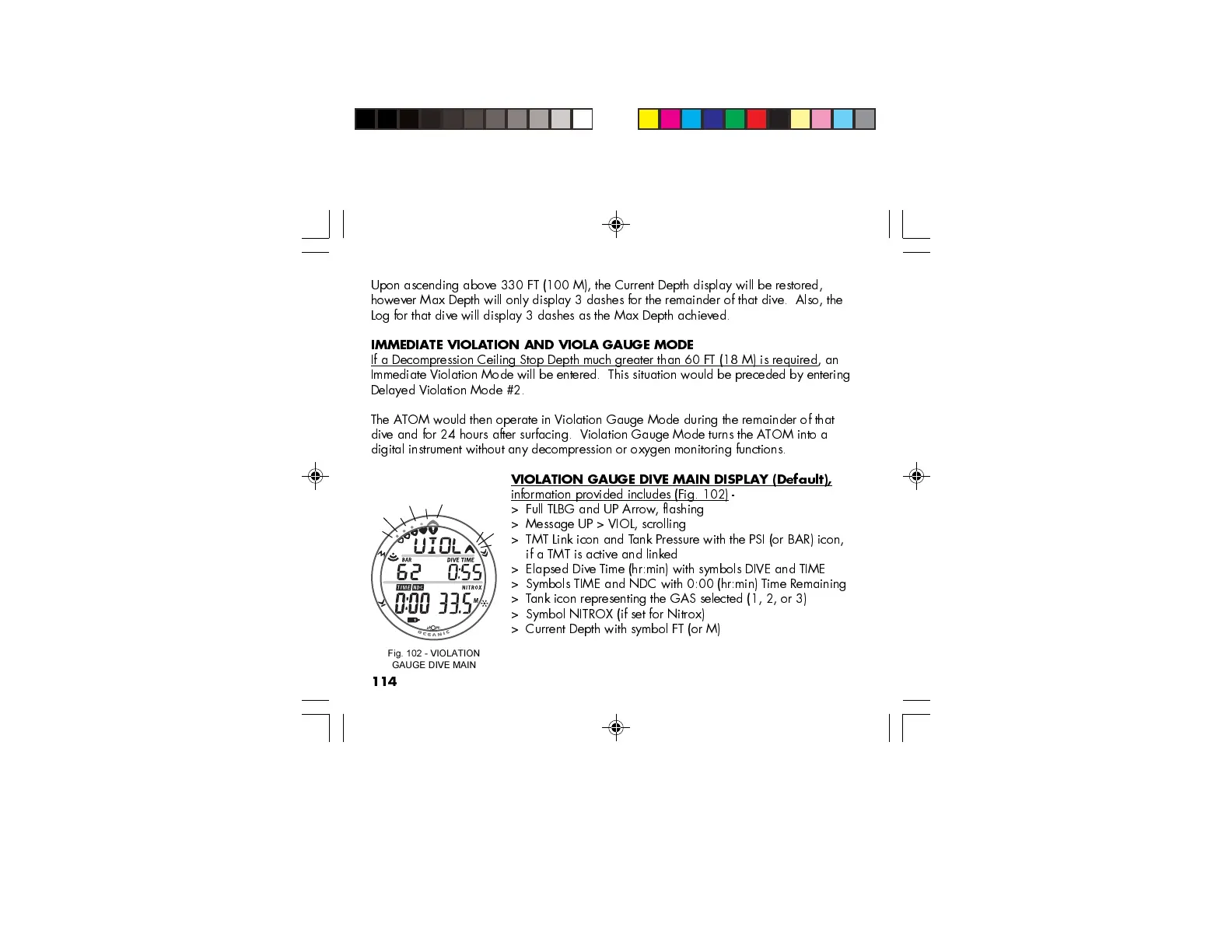

Fig. 102 - VIOLATION
GAUGE DIVE MAIN
