Chapter 4 Reprocessing Operations
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
When loading a 190 series endoscope
1
as a first
endoscope
Place the endoscope connector over the black marker located on the left side of
the divider as shown in Figure 4.17.

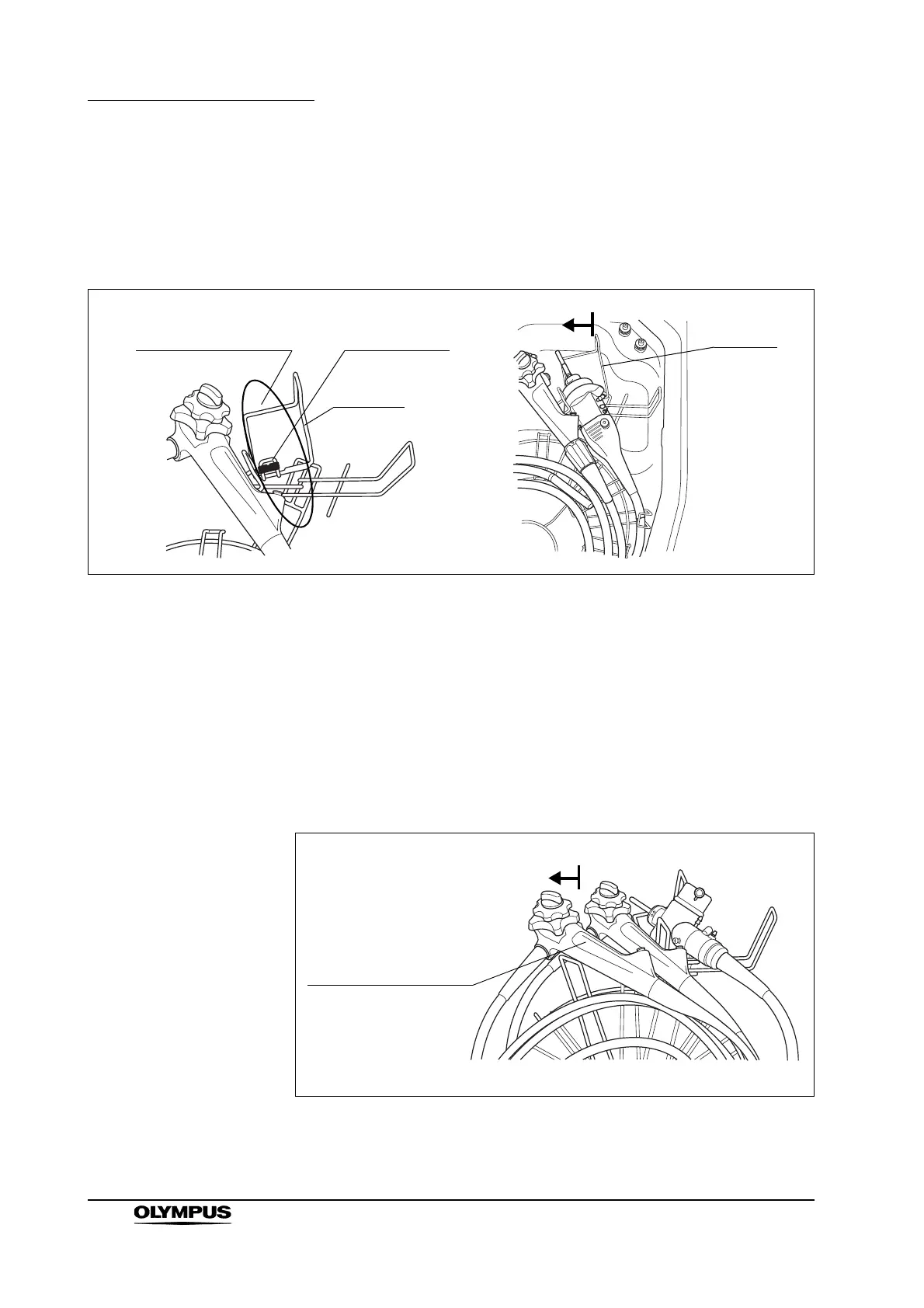

Figure 4.17
5. Adjust the positions of the insertion tube and universal cord to minimize
overlapping. Also, adjust the positioning of the insertion tube’s distal end by
turning the angulation control knobs (lever) on the control section. Again,
make sure that the universal cord is placed on the inside of the hook (see
Figure 4.14).
6. When placing a second endoscope, repeat Steps 1 to 4 above. The control
section of the second endoscope should be placed to the left of the first
endoscope as shown in Figure 4.18.
Figure 4.18
Setting position for
first endoscope
connector
Black marker
Divider
Divider
Control section of the
second endoscope
1 190 series endoscopes may not be available in some areas.
