176
Chapter 6 Other Functions
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual

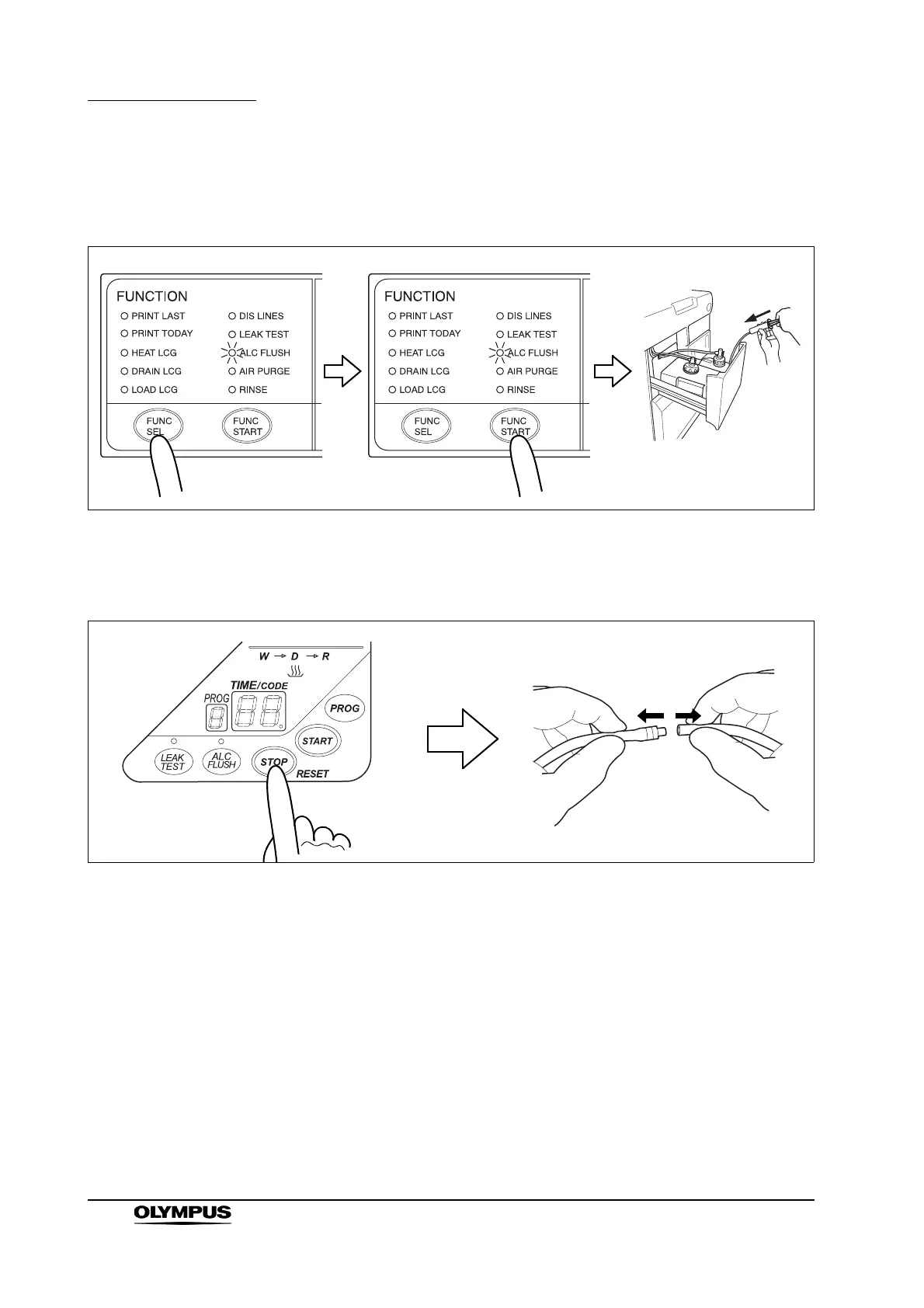

6. Press the FUNC SEL button on the subcontrol panel to select “ALC
FLUSH”, and press the FUNC START button. Flush air in the syringe within
30 seconds.
Figure 6.27
7. Press the STOP/RESET button on the main control panel to stop alcohol
flushing, and then disconnect the syringe’s tube from the ventilation tube.
Figure 6.28
To Next Page
