252
Chapter 7 Routine Maintenance
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual

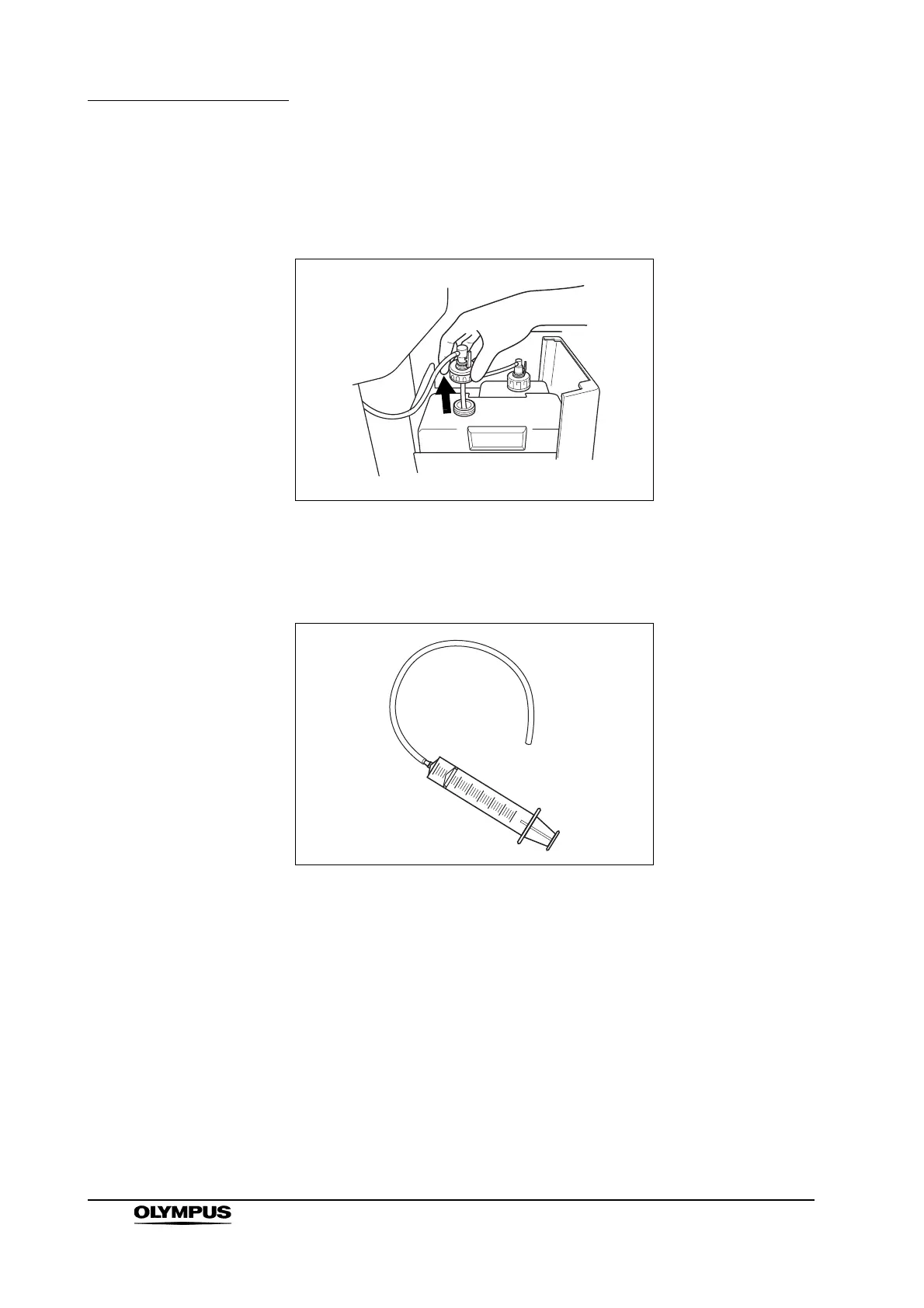

1. Pull out the detergent/alcohol drawer.
2. Detach the detergent tank cap to which a tube is connected (Do not
disconnect the connector.) (see Figure 7.87).
Figure 7.87
3. Step the foot pedal to open the lid.
4. Connect the provided syringe and tube.
Figure 7.88
5. Connect the tube attached to the syringe to the detergent nozzle inside the
reprocessing basin.
To Next Page
