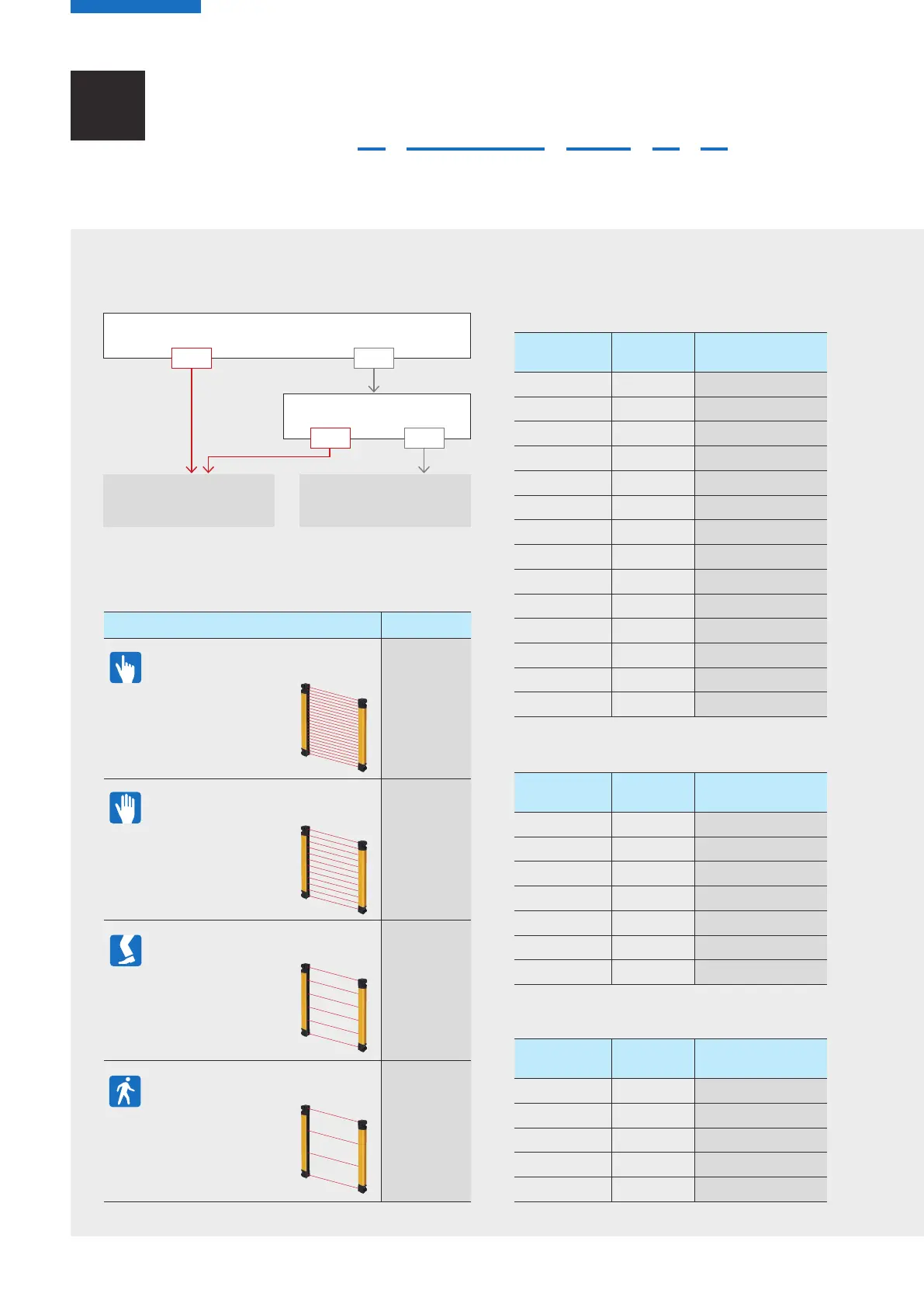

Complete the model number.
●❶
Select an application.
●❷ Select detection capability.
●❸ Select protective height.*
F3SG-4SR □ □□□□-□□-□-□
SR
❶ ❸ ❷ ❹ ❺
Finger Protection
Arm/Leg Protection
Body Protection
Protective height
(mm)
Number of
beams
●❸
160 15 □□□□＝0160
240 23
□□□□＝0240
320 31
□□□□＝0320
400 39
□□□□＝0400
480 47
□□□□＝0480
560 55
□□□□＝0560
640 63
□□□□＝0640
800 79
□□□□＝0800
1000 99
□□□□＝1000
1200 119
□□□□＝1200
1400 139
□□□□＝1400
1600 159
□□□□＝1600
1800 179
□□□□＝1800
2000 199
□□□□＝2000
Protective height
(mm)
Number of
beams
●❸
240 6 □□□□＝0240
400 10
□□□□＝0400
560 14
□□□□＝0560
720 18
□□□□＝0720
880 22
□□□□＝0880
1200 30
□□□□＝1200
1520 38
□□□□＝1520
Protective height
(mm)
Number of
beams
●❸
280 4 □□□□＝0280
440 6
□□□□＝0440
600 8
□□□□＝0600
760 10
□□□□＝0760
920 12
□□□□＝0920
Type
●❷
□□＝
14
□□＝
25
□□＝
45
□□＝
85
Indicator showing low light intensity
YES
□＝
A
Advanced
□＝
B
Standard
Vibration detection
YES NO
NO
Finger Protection
Detection capability
14-mm dia.
Hand Protection
Detection capability
25-mm dia.
Arm/Leg Protection
Detection capability
45-mm dia.
Body Protection
Detection capability
85-mm dia.
