Omron F3SG-SR Series - Manual Reset Mode with Reset Switch Connector

F3SG-SR/PG
71
Connections
(Basic Wiring Diagram)
Manual Reset Mode with Reset Switch Connector

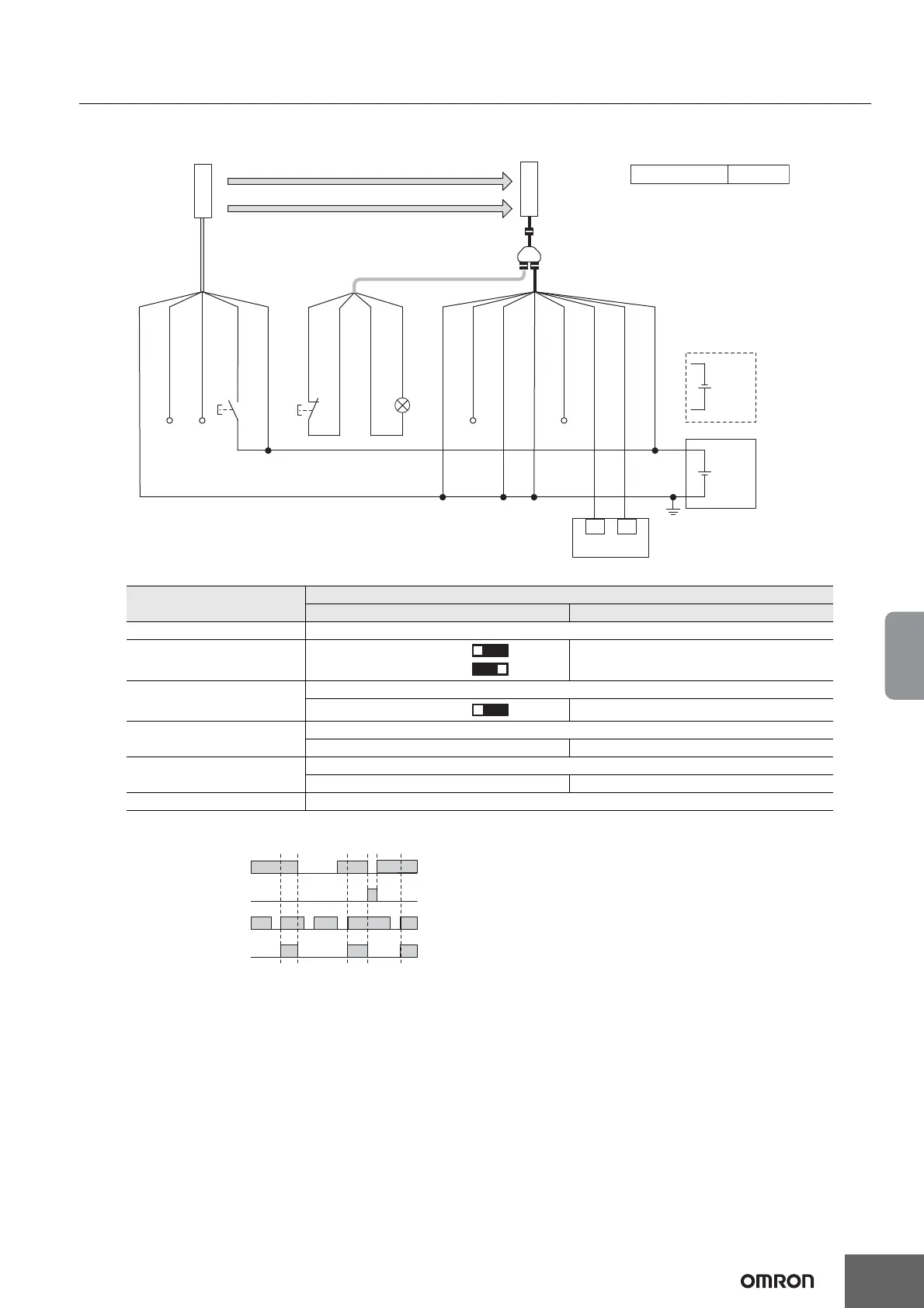

[Wiring Example]
Note: 1. When using the Reset Switch Connector (F39-GCNY3), the following functions are not available.
• External Device Monitoring (EDM)
2. For the functional earth connection, refer to page 66.
S2
S1
24 VDC
24 VDC
F39-JGC-L
F39-GCNY3
F39-JGR3K-D
XS5F-D42180-F
F39-JGA-D
IN1
IN2
L1
Wiring for NPN *1
OSSD 1 (Black) OSSD 2 (White) 24V/0V (Brown) TEST (Black) Not used (White) 24V/0V (Brown) 0V/24V (Blue) 0V/24V (Blue) AUX (Red) MUTE B (Pink) MUTE A (Gray) RESET (Yellow) 0V/24V (Blue) RESET (White) 24V/0V (Brown) AUX (Black) OPERATING RANGE SELECT INPUT (Yellow)
*2
Emitter
Receiver
Safety controller
*3 *4
Timing chart
Beam state: Unblocked
Blocked
Reset switch (S2)
Test switch (S1)
OSSD
S1: Test switch
S2: Lockout/interlock reset switch
L1: Lamp
*5
Innteligent Tap Needed
*1. Reverse the polarity of the power supply when using in the NPN
system. Select a PLC and a safety controller of PNP or NPN type
according to the system of your application.
*2. Connect the line to 0 VDC if Operating Range Selection is used in
Short Mode.
*3. Refer to page 75 for more information.
*4. The safety controller and the F3SG-SR must share the power
supply or be connected to the common terminal of the power
supply.
*5. This is the case for a PELV circuit.
*6. Set the function with the DIP Switches on the Intelligent Tap or the
SD Manager 3, restore the settings to the F3SG-SR, and perform
wiring according to the wiring diagram.
*7. This wiring example shows light emission stop when connected to
24 VDC with PNP setting, and light emission stop when
connected to 0 VDC with NPN setting. If TEST switch is not
needed, refer to the User's Manual (Man. No. Z405).
 : Indicates a switch position.
Function
Setting
DIP switch SD Manager 3
EDM EDM Disabled (factory default setting)
Interlock *6
Manual Reset (Start/
Restart Interlock)
[Start interlock] : Enable
[Restart interlock] : Enable
Operating Range Selection
Long : Open the OPERATING RANGE SELECT INPUT line of the emitter or connect the line to 24 VDC.
Long *6 [Operating Range Selection] : Long mode *6
Non-Muting system
Perform wiring according to the wiring diagram.
N/A [Muting] : Disable *6
External Test used
Connect the TEST line of the emitter to 24V/0V of the emitter via a test switch (NO contact). *7
N/A [External test signal inversion] : Disable
Optical Synchronization Open the COM(+) and COM(-) lines of the emitter.
4ON
5ON
8ON
