Omron F3SG-SR Series User Manual

F3SG-SR/PG
73
Connections

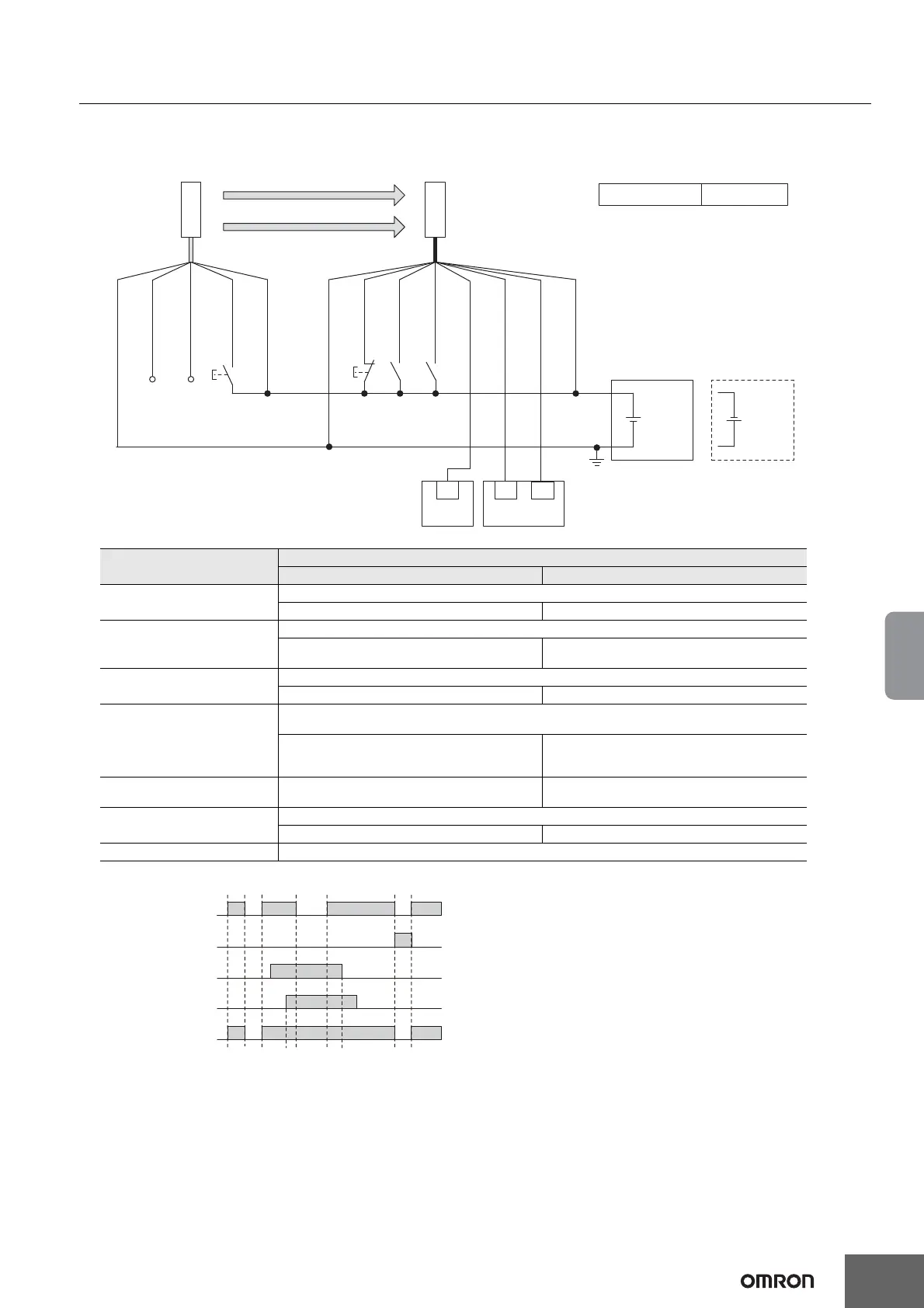

(Basic Wiring Diagram)
Muting System Wiring Examples
Standard Muting Mode/Exit-Only Muting mode
[Wiring Example]
Note: For the functional earth connection, refer to page 66.
F39-JGC-L
F39-JG
C-D
24 VDC
Wiring for NPN *1
24 VDC
S3 S4
*4
IN
PLC
*5
*8
IN1
Safety controller
*6 *7
IN2
S1
S2
Receiver
Emitter
OSSD 1 (Black) OSSD 2 (White) 24V/0V (Brown)
OPERATING RANGE SELECT INPUT (Yellow)
*2
TEST (Black) Not used (White) 24V/0V (Brown) 0V/24V (Blue) 0V/24V (Blue) AUX (Red) MUTE B (Pink) MUTE A (Gray) RESET/EDM (Yellow)
*3
S1: Test switch
S2:
Lockout reset switch, override switch or override cancel switch
S3, S4: Muting sensor
PLC: Programmable logic controller (Used for monitoring only.
NOT related to safety system.)
MUTE A
MUTE B
Timing chart
Beam state: Unblocked
Blocked
Test switch (S1)
OSSD
Intelligent Tap
Needed *9
*1. Reverse the polarity of the power supply when using in the NPN
system.
*2. Connect the line to 0 VDC if Operating Range Selection is used
in Short Mode.
*3. Also used as OVERRIDE INPUT line.
*4. Make sure to connect an override cancel switch to the RESET
line when using the override function. Otherwise the override
state may not be released by the override cancel switch,
resulting in serious injury.
*5. When connecting to the PLC, the output mode must be
changed with the SD Manager 3 according to your application.
For the setting this function, refer to the User's Manual
(Man.No.Z405).
*6. Refer to page 75 for more information.
*7. The safety controller and the F3SG-SR must share the power
supply or be connected to the common terminal of the power
supply.
*8. This is the case for a PELV circuit.
*9. Set the function with the SD Manager 3, restore the settings to
the F3SG-SR, and perform wiring according to the wiring
diagram.
*10.This wiring example shows light emission stop when connected
to 24 VDC with PNP setting, and light emission stop when
connected to 0 VDC with NPN setting. If TEST switch is not
needed, refer to the User's Manual (Man. No. Z405).
 : Indicates a switch position.
Function
Setting
DIP switch SD Manager 3
EDM
EDM Disabled (factory default setting)
- [External device monitoring] : Disable *9
Interlock
Auto Reset (factory default setting)
-
[Start interlock] : Disable
[Restart interlock] : Disable *9
Operating Range Selection
Long : Open the OPERATING RANGE SELECT INPUT line of the emitter or connect the line to 24 VDC.
- [Operating Range Selection] : Long mode *9
Standard Muting Mode
When not using the Intelligent Tap or the SD Manager 3, perform wiring according to the wiring diagram.
(factory default setting)
N/A
[Muting] : Enable
[Muting mode] : Standard Muting (Installation
Example1/2) *9
Exit-Only Muting Mode N/A
[Muting] : Enable
[Muting mode] : Exit-Only Muting *9
External Test used
Connect the TEST line of the emitter to 24V/0V of the emitter via a test switch (NO contact). *10
N/A [External test signal inversion] : Disable
Optical Synchronization Open the COM(+) and COM(-) lines of the emitter.
