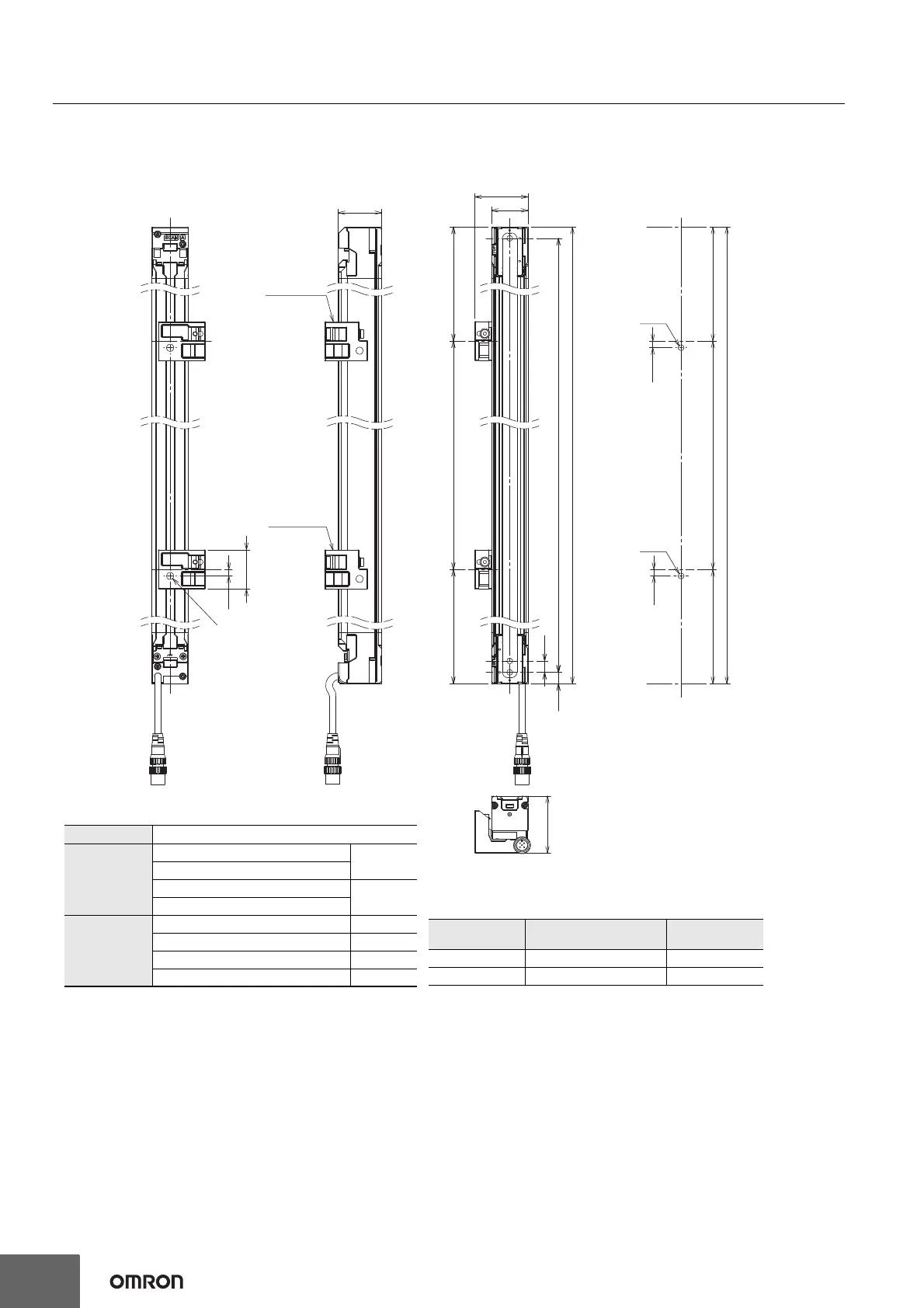

Dimensions (Unit: mm)
F3SG-SR Series
Mounted with Side-Mount Brackets (Intermediate Brackets) (F39-LSGF)
Backside Mounting
250 max. 250 max. F
10
P
D
250 max. F 250 max.
C
5.7
5.7
<Screw: M5 or M6>
50
38
5.7
34.4
6.3 dia.
C(Protective height)
32
46.7
Side-Mont
Bracket
(F39-LSGF)
Side-Mont
Bracket
(F39-LSGF)
2-M5
or M6
2-M5
or M6
* The number of brackets required to mount either one of emitter and receiver. The side-mount brackets (intermediate brackets)
are included with the light curtain.
Dimension C 4-digit number of the type name (Protective height:  )
Dimension D
F3SG-SR-14
C-20
F3SG-SR-25
F3SG-SR-45
C-40
F3SG-SR-85
Dimension P
F3SG-SR-14 10
F3SG-SR-25 20
F3SG-SR-45 40
F3SG-SR-85 80
Protective height
(Dimension C)
Number of Side-Mount
Bracket *
Dimension F
0160 to 1440 2 1000 mm max.
1520 to 2480 3 1000 mm max.
