Omron F3SG-SR Series User Manual

No. Product name Appearance Model Cable length Remarks
❶
Root-Straight Cable
F39-JG□C-L 3, 7, 10 m
For emitter, gray
❷
F39-JG□C-D 3, 7, 10 m
For receiver, black
❸
Root-Plug Cable
for Extended
F39-JGR3K-L 30 cm
For emitter, gray
❹
F39-JGR3K-D 30 cm
For receiver, black
❺
Extended
Plug-Socket Cable
F39-JG□B-L 3, 10, 20 m
For emitter, gray
❻
F39-JG□B-D 3, 10, 20 m
For receiver, black
❼
Extended
Socket-Straight Cable
F39-JG□A-L 3, 10 m
For emitter, gray
❽
F39-JG□A-D 3, 10 m
For receiver, black
❾
Side-by-side
Cascading Cable
F39-JGR12L 12 cm
For emitter and receiver,
two cables per set
➓
Cascading Cable
for Extended
F39-JGR3W 30 cm
For emitter and receiver,
two cables per set
⓫
Socket-Straight Cable
for IO-Link
F39-JG□B-L 3, 10, 20 m
For connection to
GX-ILM08C
⓬
Root-Straight Cable
for IO-Link
XS5F-D521-DJ0-IL 2 m
For connection to
NX-ILM400
⓭
Conversion Cable
F39-JGR3K-SJ 30 cm
For use of wiring for
F3SN, F3SJ-A/-B, or F3SR
F39-JGR3K-RE 30 cm
For use of wiring for F3SG-RE
F39-JGR3K-MS 30 cm
For use of wiring for MS4800
⓭
⓭
Intelligent Tap
F39-SGIT-IL3
CN4
CN1
CN3
IO-Link master
Safety
output
CN2
❸
❹
❺
❽
⓫
or
⓬
❸
❹
❺
❻
or
❽
❸
❹
❺
❻
❿
❿
❾
❾
❸
❹
❺
❻
❼
❽
❷
❶
Intelligent Tap
F39-SGIT-IL3
CN4
CN1
CN3
CN2
❸
❹
❼
❽
29

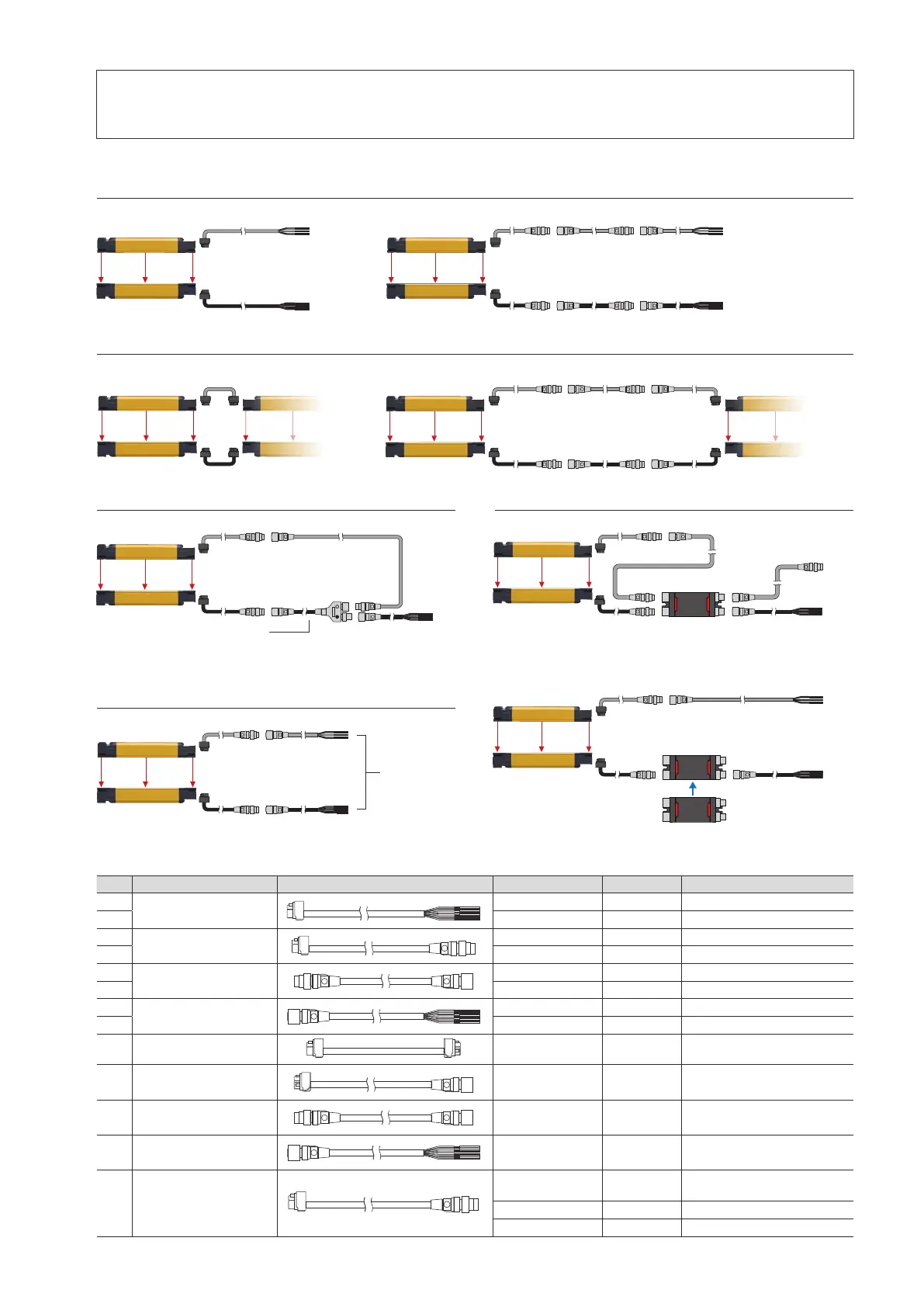

STEP 3 Choose a wiring method
See page 38 and following for details of cables.
Series-connected
One light curtain
Use of reduced wiring connector
Replacement of Omron light curtain
Use of Intelligent Tap
・Cable extension (up to 100 m)
・Cascading cable extension (up
to 10 m)
・Connected for setting (optical synchronization)
・Always connected
・Side-by-side cascading (12 cm)
Y-Joint Plug/
Socket Connector
F39-GCNY2
Connecting
cables of
existing
light curtain
