F3SG-SR/PG
37

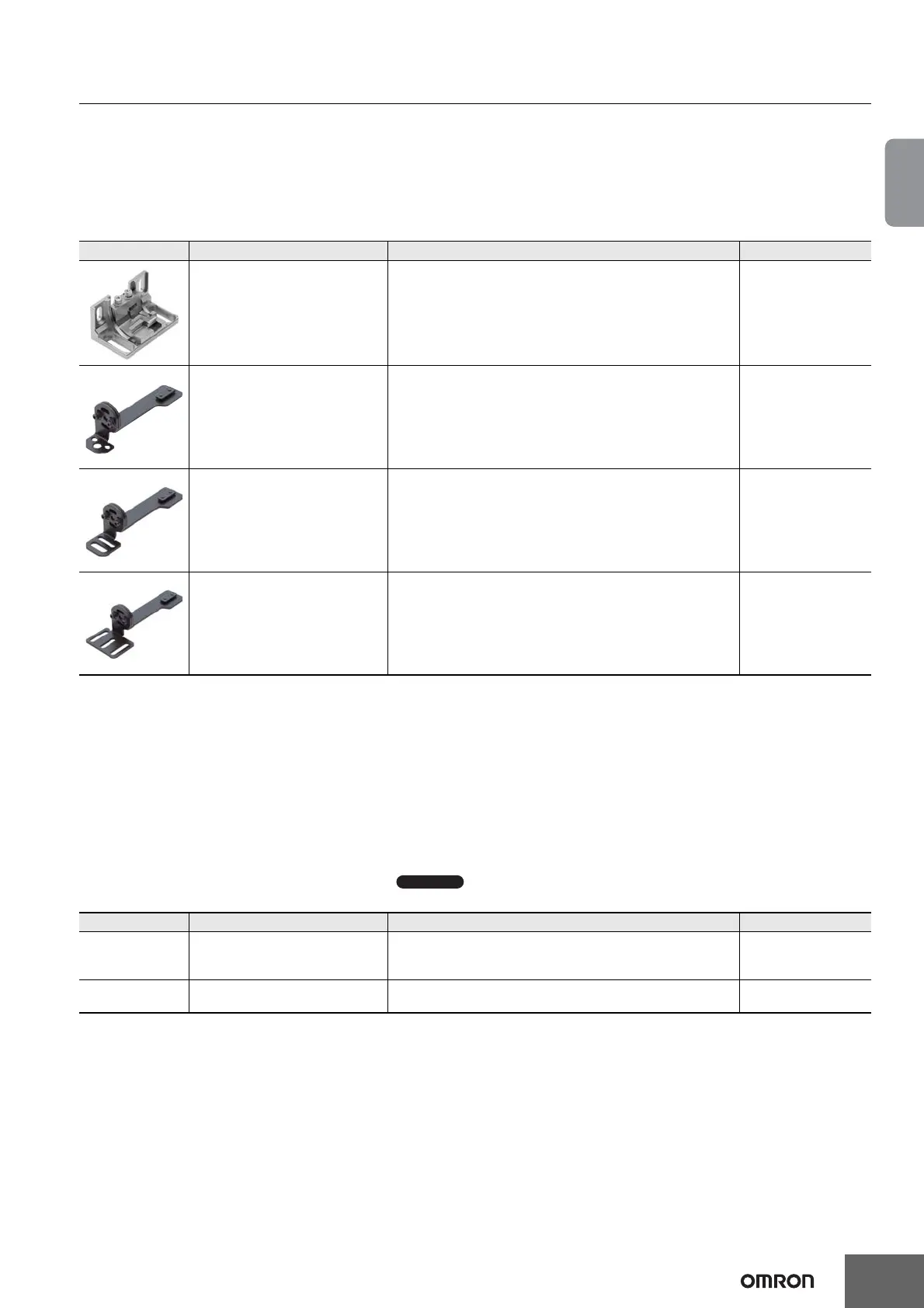

Accessories (Sold separately)
Safety Light Curtain/Safety Multi-Light Beam Mounting Bracket
The side-mount brackets (intermediate brackets) are included with the light curtain.
Order the brackets listed below when angle adjustment is required.
For F3SG-SR/PG (except for perimeter guarding deflect mirror)
The bracket allows beam adjustment after the F3SG-SR/PG (except for perimeter guarding deflect mirror) is mounted on it.
Side mounting and backside mounting are possible.
*1. Protective height of 160 to 1440: 2 sets (4 brackets), protective height of 1520 to 2480: 3 sets (6 brackets)
*2. Using Adjustable Top/Bottom Brackets with Side-Mount Brackets (Intermediate Brackets) or Adjustable Side-Mount Brackets (Intermediate
Brackets)
Protective height of 0840 or less:
The Side-Mount Bracket (Intermediate Bracket) or Adjustable Side-Mount Bracket (Intermediate Bracket) is not required. Use 2 sets of
Adjustable Top/Bottom Brackets.
Protective height of 0880 to 1680:
Use 2 sets of Adjustable Top/Bottom Brackets and 1 set of Side-Mount Brackets (Intermediate Brackets) or Adjustable Side-Mount Brackets
(Intermediate Brackets).
Protective height of 1760 to 2480:
Use 2 sets of Adjustable Top/Bottom Brackets and 2 sets of Side-Mount Brackets (Intermediate Brackets) or Adjustable Side-Mount Brackets
(Intermediate Brackets).
Refer to Dimensions on page 78 and following.
For F3SG-PG perimeter guarding deflect mirror
The bracket allows beam adjustment after the F3SG-PG (perimeter guarding deflect mirror) is mounted on it.
Appearance Type Application Model
Adjustable Side-Mount Bracket
(Intermediate Bracket)
The angle adjustment range is ±15°.
Two brackets per set (See *1 below for the number of sets
required for each model.)
F39-LSGA
Adjustable Top/Bottom Bracket
F3SJ, F3SN Adapter
Use this bracket at the top and bottom positions of the F3SG-
SR/PG.
The angle adjustment range is ±22.5°.
Use this bracket when replacing an existing F3SJ or F3SN
Safety Light Curtain.
Two brackets per set (See *2 below for the number of sets
required for each model.)
F39-LSGTB-SJ
Adjustable Top/Bottom Bracket
F3SG-RA/RE Adapter
Use this bracket at the top and bottom positions of the F3SG-
SR/PG.
The angle adjustment range is ±22.5°.
Use this bracket when replacing an existing F3SG-RA/RE
Safety Light Curtain.
Two brackets per set (See *2 below for the number of sets
required for each model.)
F39-LSGTB-RE
Adjustable Top/Bottom Bracket
MS4800, F3SR Adapter
Use this bracket at the top and bottom positions of the F3SG-
SR/PG.
The angle adjustment range is ±22.5°.
Use this bracket when replacing an existing MS4800 or F3SR
Safety Light Curtain.
Two brackets per set (See *2 below for the number of sets
required for each model.)
F39-LSGTB-MS
Appearance Type Application Model
---
Adjustable Side-Mount Bracket
(Intermediate Bracket) For Deflect
Mirror
The angle adjustment range is ±15°. F39-LSGA-C
---
Adjustable Top/Bottom Bracket
For Deflect Mirror
The angle adjustment range is ±22.5°. F39-LSGTB-C
To Next Page
