F3SG-SR/PG
38

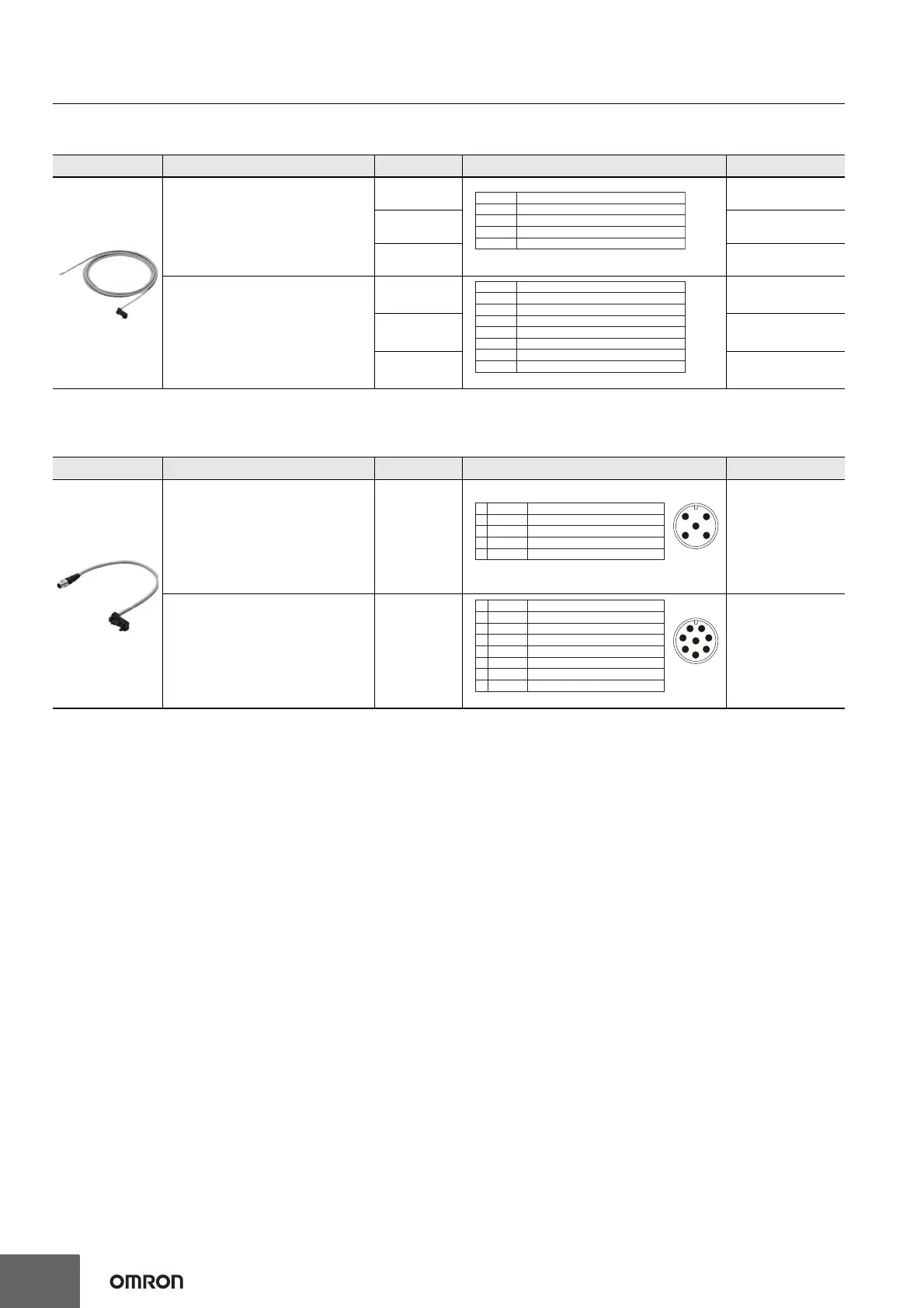

Safety Light Curtain/Safety Multi-Light Beam Connecting Cable
Root-Straight Cable
Note: Cables are not included with the safety light curtain/safety multi-light beam.
Order the F39-JG@C Root-Straight Cable or F39-JGR3K Root-Plug Cable for Extended.
Root-Plug Cable for Extended
Note: 1. Cables are not included with the safety light curtain/safety multi-light beam.
Order the F39-JG@C Root-Straight Cable or F39-JGR3K Root-Plug Cable for Extended.
2. Use with the F39-JG@A Extended Socket-Straight Cable or F39-JG@B Extended Plug-Socket Cable.
Appearance Type Cable length Specifications Model
For emitter
To sensors: dedicated connector,
To external: open-ended type 5 wires
Color: Gray
3 m F39-JG3C-L
7 m F39-JG7C-L
10 m F39-JG10C-L
For receiver or emitter/receiver
To sensors: dedicated connector,
To external: open-ended type 8 wires
Color: Black
3 m F39-JG3C-D
7 m F39-JG7C-D
10 m F39-JG10C-D
Appearance Type Cable length Specifications Model
For emitter
To sensors: dedicated connector,
To external: M12 connector type (8-pin)
Color: Gray
0.3 m F39-JGR3K-L
For receiver or emitter/receiver
To sensors: dedicated connector,
To external: M12 connector type (8-pin)
Color: Black
0.3 m F39-JGR3K-D
Brown
Black
Blue
White
Yellow
IP67 and IP67G (JIS C 0920 Annex 1) rated when mated.
24V/0V
TEST
0V/24V
COM(+)
OPERATING RANGE SELECT INPUT/COM(-)
Brown 24V/0V
Blue 0V/24V
Black OSSD 1
White
OSSD 2
Yellow RESET/EDM
Red AUX
Gray MUTE A/PRE-RESET/PSDI/COM(+)
Pink MUTE B/COM(-)
IP67 and IP67G (JIS C 0920 Annex 1) rated when mated.
Brown
Black
Blue
White
Yellow
24V/0V
TEST
0V/24V
COM(+)
OPERATING RANGE SELECT INPUT/COM(-)
1
2
3
4
5
5
4
12
3
Male
IP67 and IP67G (JIS C 0920 Annex 1) rated when mated.
5
8
6
7
1
2
3
4
Male
Brown 24V/0V2
Blue 0V/24V7
Black OSSD 15
White
OSSD 2
6
Yellow RESET/EDM1
Red AUX8
IP67 and IP67G (JIS C 0920 Annex 1) rated when mated.
Gray MUTE A/PRE-RESET/PSDI/COM(+)3
Pink MUTE B/COM(-)4
