Omron F3SG-SR Series User Manual

F3SG-SR/PG
90
Spatter Protection Cover
Spatter Protection Cover (F39-HSG, sold separately)
Connecting cable
Root-Straight Cable
Root-Straight Cable for Emitter (F39-JGC-L, sold separately)
Root-Straight Cable for Receiver (F39-JGC-D, sold separately)
Root-Plug Cable for Extended
Root-Plug Cable for Extended for Emitter (F39-JGRK-L, sold separately)
Root-Plug Cable for Extended for Receiver (F39-JGRK-D, sold separately)
Emitter cable (Gray) Receiver cable (Black) Length (L)
F39-JG3C-L F39-JG3C-D 3 m
F39-JG7C-L F39-JG7C-D 7 m
F39-JG10C-L F39-JG10C-D 10 m
Emitter cable (Gray) Receiver cable (Black) Length
F39-JGR3K-L F39-JGR3K-D 0.3 m
L = @@@@
Material: PC resin (Transparent cover)
ABS resin (Side wall)
L
34.2
11.1
34.2
42.8

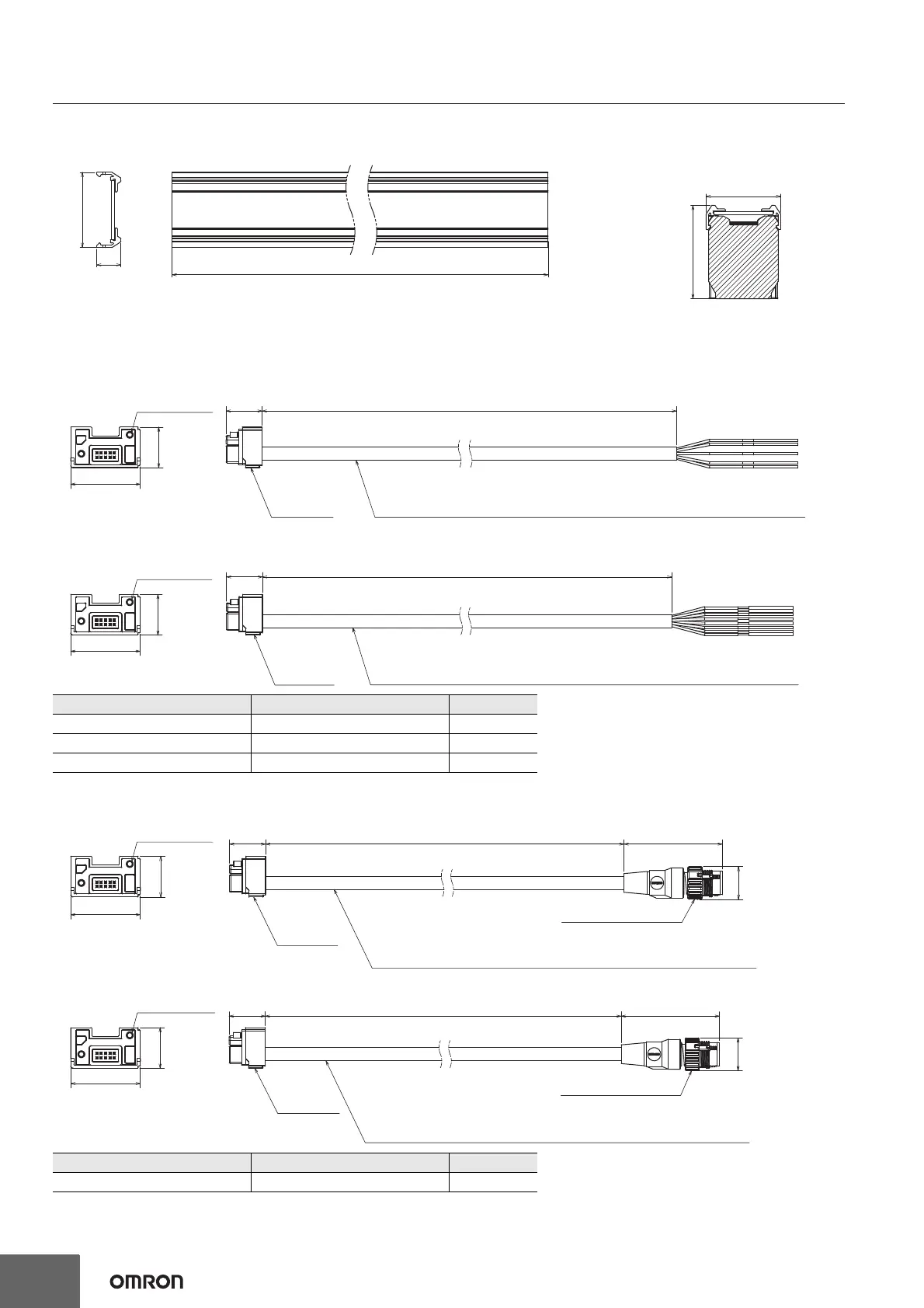

Assembly Dimensions
Connector
L
16.4
2-M2.5 screw
31.6
18.5
Oil-resistant PVC-insulated round cable, dia. 6
minimum bending radius R5, 5-wire
(Cross section of conductor: 0.3 mm
2
/insulator diameter: dia. 1.1 mm/AWG24)
31.6
18.5
2-M2.5 screw
Connector
L
16.4
Oil-resistant PVC-insulated round cable, dia. 6
minimum bending radius R5, 8-wire
(Cross section of conductor: 0.3 mm
2
/insulator diameter: dia. 1.1 mm/AWG24)
Connector
M12 IP67 Connector
Oil-resistant PVC-insulated round cable, dia. 6
minimum bending radius R5, 5-wire
(Cross section of conductor: 0.2 mm
2
/insulator diameter: dia. 1.1 mm)
44.7
14.9 dia.
300
31.6
18.5
2-M2.5 screw
16.4
Connector
M12 IP67 Connector
14.9 dia.
2-M2.5 screw
31.6
18.5
44.7
300
16.4
Oil-resistant PVC-insulated round cable, dia. 6
minimum bending radius R5, 8-wire
(Cross section of conductor
: 0.2 mm
2
/insulator diameter: dia. 1.1 mm)
