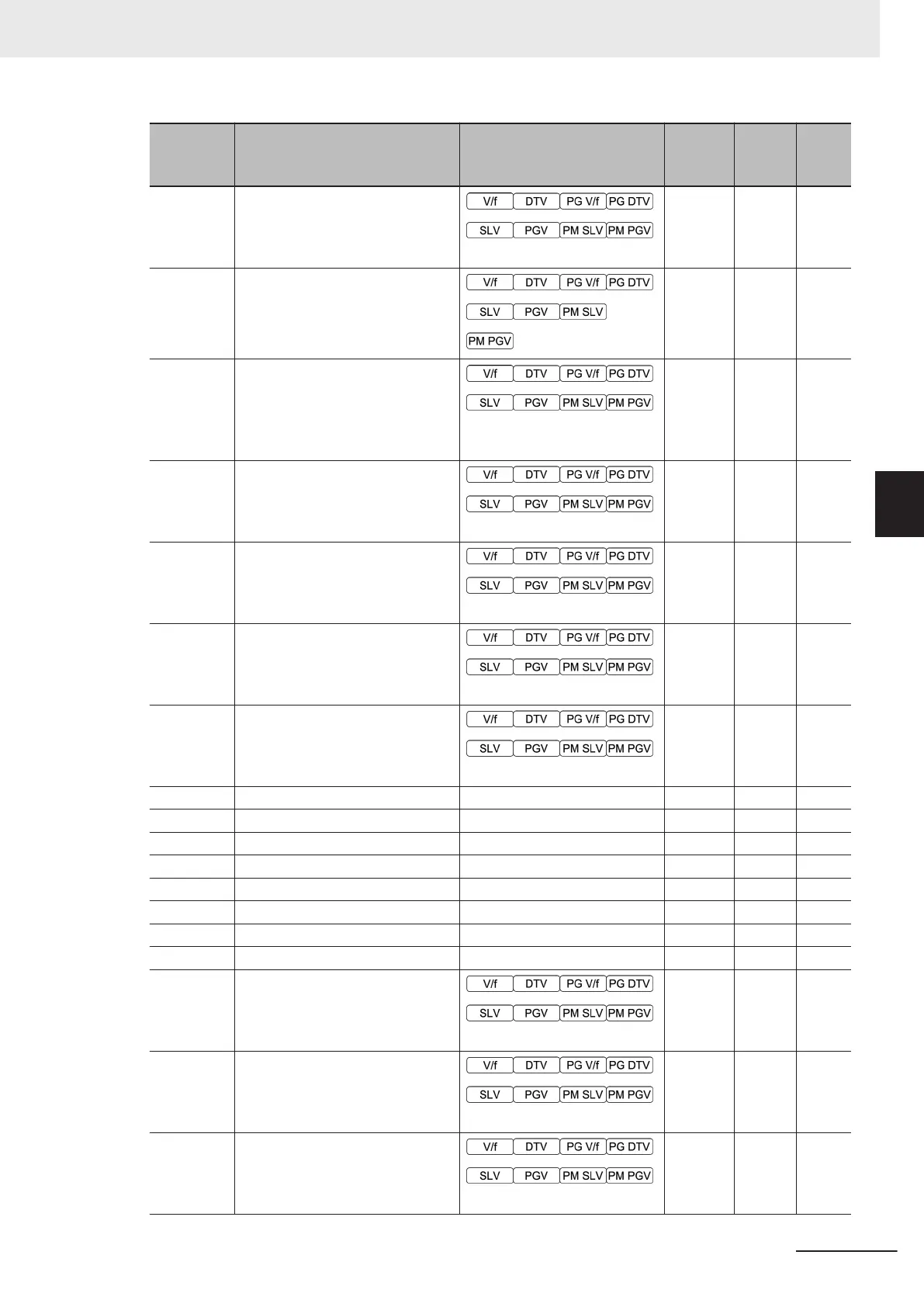

Omron M1 Series User Manual

Parameter
No.
Function name Monitor or Data Range
Default
data
Setting
during
RUN
Unit
W48
Output Terminal [AO]PO Output
Frequency
0 to 32,000 p/s
0 - p/s
W49
Input Terminal [AI2] Input Voltage
(AIV)
-0.0 to 12.0 V
0 - V
W50
Output Terminal [AO]AOI Output
Current
0.0 to 30.0 mA
999: Disable
32767 - mA
W53
Pulse Input (A/B Phase of Ch1
Side)
ー
0 - kp/s
W54
Pulse Input (Z Phase of Ch1
Side)
ー
0 - p/s
W55 Reserved
-327.68 to 327.67
0 - kp/s
W56 Reserved
0 to 16,000 p/s
0 - p/s
W57 Do not use - - - -
W58 Do not use - - - -
W59 Do not use - - - -
W60 Do not use - - - -
W61 Do not use - - - -
W62 Do not use - - - -
W63 Do not use - - - -
W66 Do not use - - - -
W67
Cumulative Run Time of Capaci-
tors on Printed Circuit Boards
0 to 9999 (in 10 hours)
0 -
10
hex
W68
Cumulative Run Time of Cooling
Fan
0 to 9999 (in 10 hours)
0 -
10
hex
W70 Total Power ON Time Monitor
0 to 655350 hour
0 - h
4 Parameter List
4-35
M1 Series Standard Type User's Manual (I669)
4-1 List of Monitors by Group
4
4-1-2 Parameter W (Monitor 2)

Omron M1 Series Specifications

General

Input Voltage	200-240V AC
Output Voltage	3-phase 200 to 240 VAC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus RTU
Enclosure	IP20
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
Frequency Range	0.5-400 Hz
Storage Temperature	-20°C to +65°C
