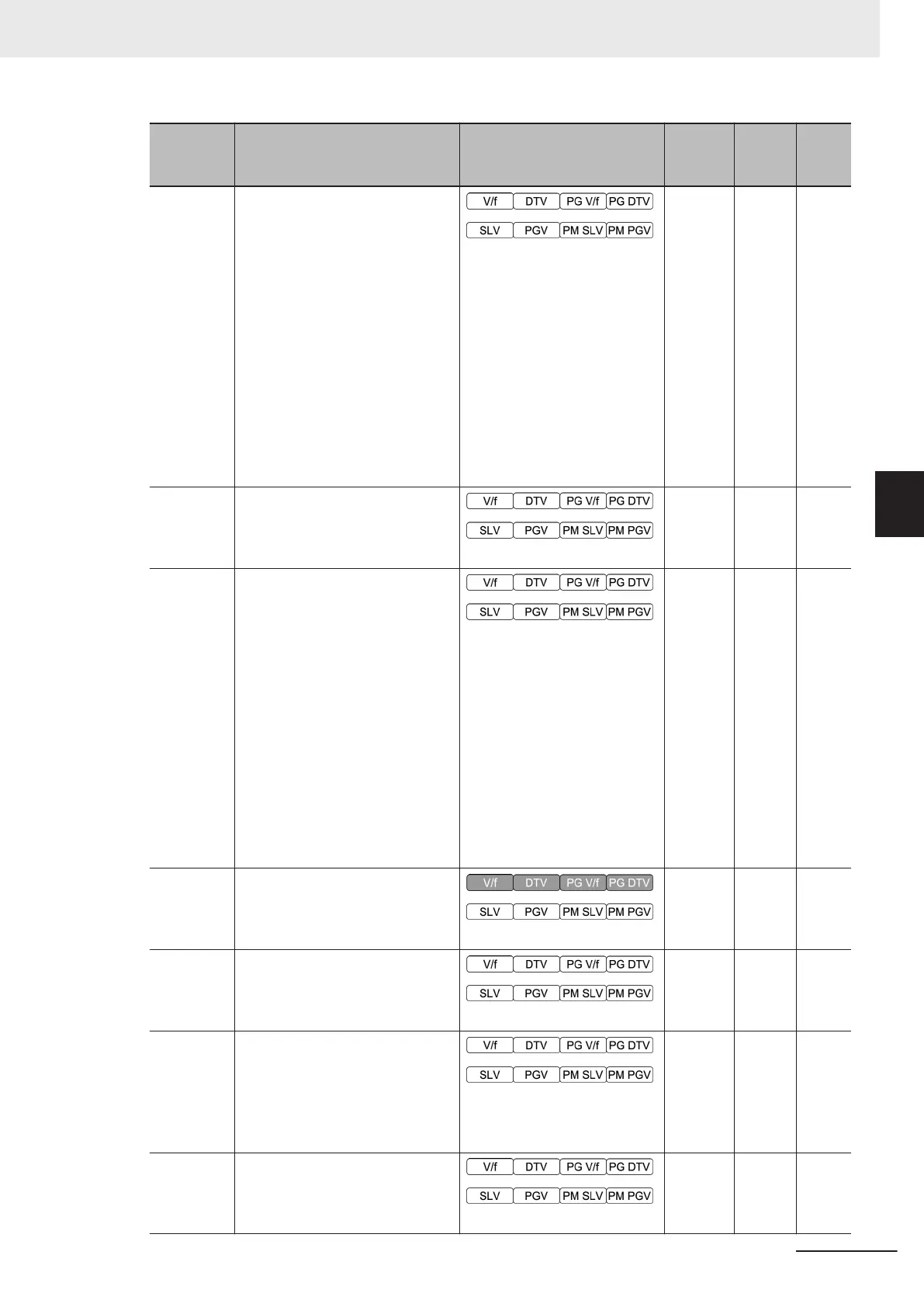

Omron M1 Series User Manual

Parameter
No.
Function name Monitor or Data Range
Default
data
Setting
during
RUN
Unit
W84 Contents of Operator Comm error
0 to 127 1: Improper FC [RTU]
2: Improper address (function
code error) [RTU]
3: Improper data (range error)
[RTU]
7: NAK (link priority ; no right ;
write disabled) [R
TU]
71: Checksum error ; CRC er-
ror
72: Parity error
73: Framing error ; overrun er-
ror ; buffer full
0 - -
W85 Number of RS-485 Errors
0 to 9999
0 - -
W94 Contents of RS-485 Error
1: Improper FC [RTU]
2: Improper address (function
code error) [RTU]
3: Improper data (range error)
[RTU]
7: NAK (link priority
, no right,
write disabled) [RTU]
71: Checksum error, CRC er-
ror
72: Parity error
73: Framing error, overrun er-
ror, buffer full
0 - -
W118 Torque Bias Monitor
-999 to 999
0 - %
W131 PIC Control PID Deviation
-999.00 to 0.00 to 9990.00
0 - -
W132 PIC Control PID Deviation
-32768 to 32767
-20000 = -100%
+20000 = +100%
0 - -
W135 Input Power Monitor
0.0 to 6553.5 kW
0 - kW
4 Parameter List
4-37
M1 Series Standard Type User's Manual (I669)
4-1 List of Monitors by Group
4
4-1-2 Parameter W (Monitor 2)

Omron M1 Series Specifications

General

Input Voltage	200-240V AC
Output Voltage	3-phase 200 to 240 VAC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus RTU
Enclosure	IP20
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
Frequency Range	0.5-400 Hz
Storage Temperature	-20°C to +65°C
