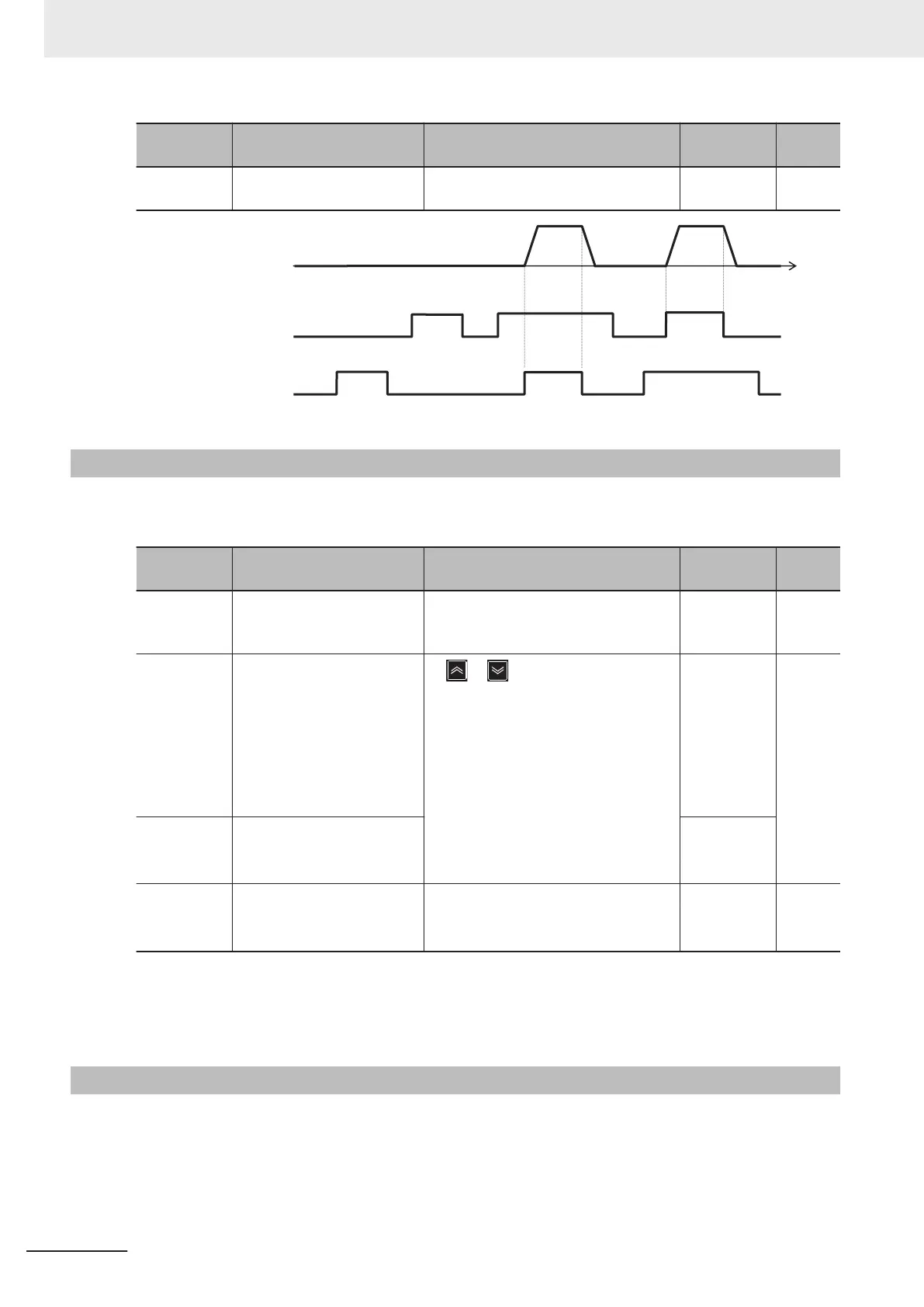

Parameter
No.
Function name Data Default data Unit
E01 to E05,
E98, E99
Input Terminal [DI1] to [DI7]
Function Selection
38: ROK (Permission of Run com-
mand)
- -
Output frequency
ROK input
RUN command
FW/RV input
7-9-8
Frequency Calculation Function
When “13: Calculation result” is set to Frequency Reference Selection (F01/C30), two frequency refer-
ences are calculated.
Parameter
No.
Function name Data Default data Unit
F01/C30
1st Frequency Reference
Selection/2nd Frequency
Reference Selection
13: Calculation result 0 -
E131
Frequency Calculation Oper-
ation Target 1
0: or keys on Operator
1
-
1: Voltage input to terminal [AI1] (0 to
10 VDC)
2: Current input to terminal [AI2](AII)
(4(0) to 20 mA DC)
3: Voltage input to terminal [AI2](AIV)
(0 to 10 VDC)
E132
Frequency Calculation Oper-
ation T
arget 2
5: Pulse train input
2
6: RS-485 (terminal block)
7: Do not set
E133
Frequency Calculation Oper-
ator Selection
0: Addition (E131 + E132)
0 -1: Subtraction (E131 - E132)
2: Multiplication (E131 x E132)
Note 1. The same setting can be made in E131/E132.
Note 2. If the calculation results exceed 1st Maximum Output Frequency (F03)/2nd Maximum Output Frequency
(A01), the limit is set at the maximum frequency. Similarly, if the calculation results are below 0.0 Hz, the
limit is set at 0.0 Hz.
7-9-9
Frequency Addition Function
Use this function to add or subtract the value set at Frequency Addition Amount (E134) to or from the
selected frequency reference.
If “161: ADD” is not allocated to the multifunction input terminal, or if the ADD terminal is ON, add or
subtract E134. If the ADD terminal is turned OFF, the addition or subtraction of Frequency Addition
Amount (E134) is canceled, and the inverter returns to the status of the selected frequency reference.
7 Other Functions
7-118
M1 Series Standard Type User's Manual (I669)
