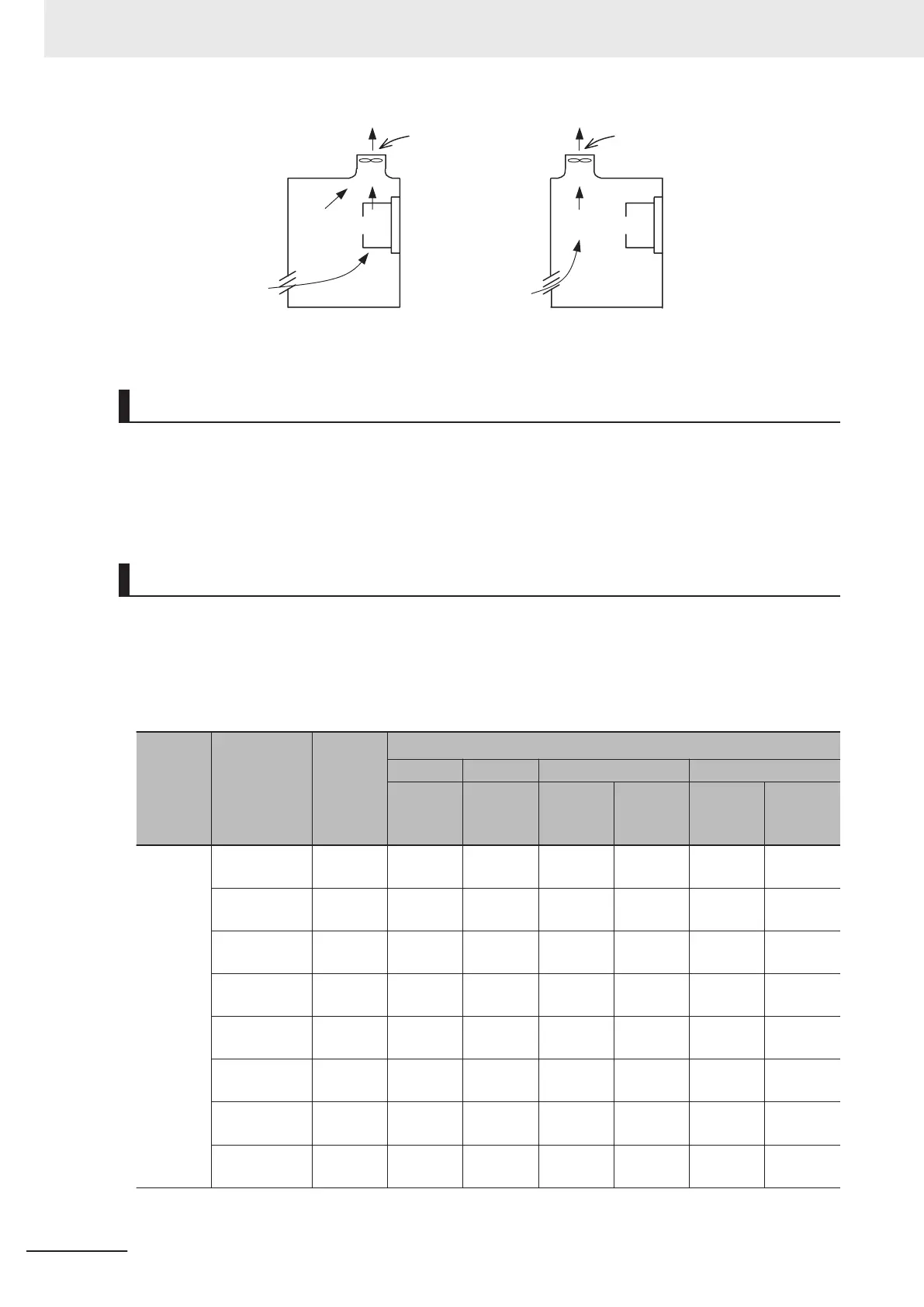

Ventilation fan
(Correct example) (Incorrect example)
Ventilation fan
Inverter Inverter
Entry of Foreign Objects during Installation
Place a cover over the inverter or take other preventative measures to prevent foreign objects, such
as drill filings, from entering the inverter during installation.
Be sure to remove the cover after installation is complete. Using the inverter with the cover placed re-
sults in poor ventilation, which causes the inverter to overheat.
Heat generation by individual inverter model
The following table shows heat generation by individual inverter model for the calculation of heat radi-
ation from a cabinet. Inverter heat generation also changes as the rated current changes according to
the load mode.
Unit: W
Power
system
Inverter type
Standby
power
Carrier frequency (Parameter No.F26 (Object 3004Hex-1BHex)
*1
ND HD HND HHD
Factory
shipment
value
Factory
shipment
value
Factory
shipment
value
Maxi-
mum set
value
Factory
shipment
value
Maxi-
mum set
value
Three-phase 200 V
3G3M1-
A2001
13 - - 19 22 17 20
3G3M1-
A2002
13 - - 29 34 23 27
3G3M1-
A2004
13 - - 47 51 35 39
3G3M1-
A2007
13 - - 66 71 54 58
3G3M1-
A2015
17 - - 94 115 74 95
3G3M1-
A2022
17 - - 115 145 98 125
3G3M1-
A2037
17 - - 210 285 165 230
3G3M1-
A2055
31 - - 280 360 170 230
2 Design
2-4
M1 Series Standard Type User's Manual (I669)

Omron M1 Series Specifications

General

Input Voltage	200-240V AC
Output Voltage	3-phase 200 to 240 VAC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus RTU
Enclosure	IP20
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
Frequency Range	0.5-400 Hz
Storage Temperature	-20°C to +65°C
