3. New configuration screen is displayed.

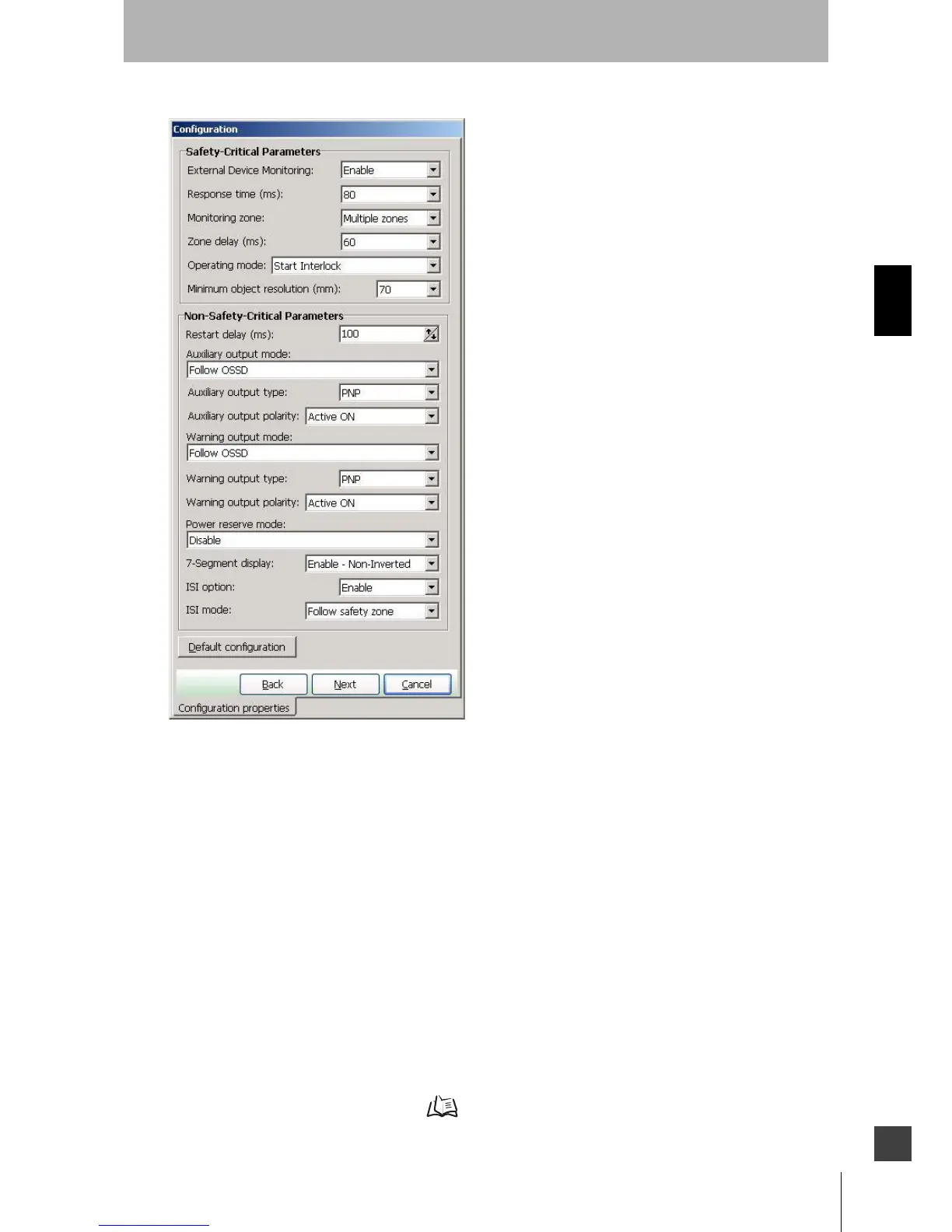

Fig. 3-18 New Configuration Parameters
• Safety Critical Parameters
1. External Device Monitoring (EDM) : When enabled the OS32C can monitor the N.C. contacts of the
external control relays. These relays are controlled by the
OSSD safety outputs.
2. Response Time : Configures a time period for OS32C safety output from ON to
OFF. The available range is from 80ms to 680ms in increments
of 40ms.
3. Monitoring Zone : To configure only one zone set, select Single zone. To
configure more than one zone, select Multiple zone.
4. Zone Delay : Select the desired Zone Delay. The available range is 20ms to
320ms in increments of 20ms.
5. Operating Mode : A user can select from Automatic Start, Start Interlock, or
Start/Restart Interlock.
6. Minimum Object Resolution : Select the minimum object size to be detected by the scanner.
Select from 30mm, 40mm, 50mm, and 70mm.
The minimum object resolution is displayed on the seven
segment display for 5 seconds on power up. Refer to "Status/
Diagnostic Display" in Chapter 2 for more detail.
