OS32C
User’s Manual
Chapter3
Basic Operation of Configuration Software
E
5. To enable Reference Bounding Monitoring (RBM), select the desired zone for RBM and then click the
Start RBM Sculpting button.
6. The scanner will then take approximately 50 seconds to measure the boundary. It is important not to
change the boundary during this time since the scanner will be re-scanning the area and taking an
average of the distances.

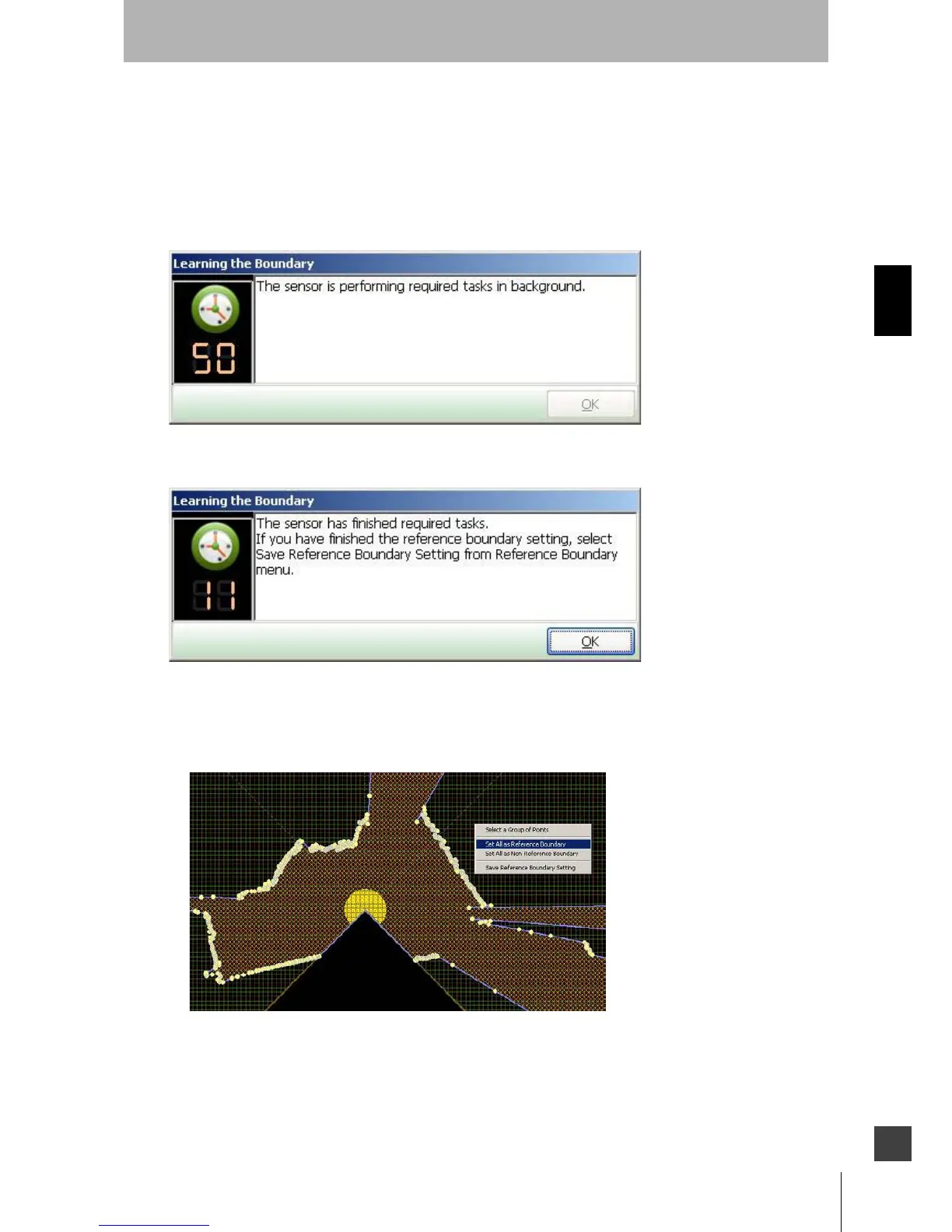

Fig. 3-62 Learning the Boundary
Fig. 3-63 Learning the Boundary Complete
7. Select the points to be used for RBM:
a. To select all the points in the zone for RBM
•Right-click on the display screen and select Set All as Reference Boundary.
Fig. 3-64 Set All as Reference Boundary
