7 Tag Data Link Functions
7-60
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
3

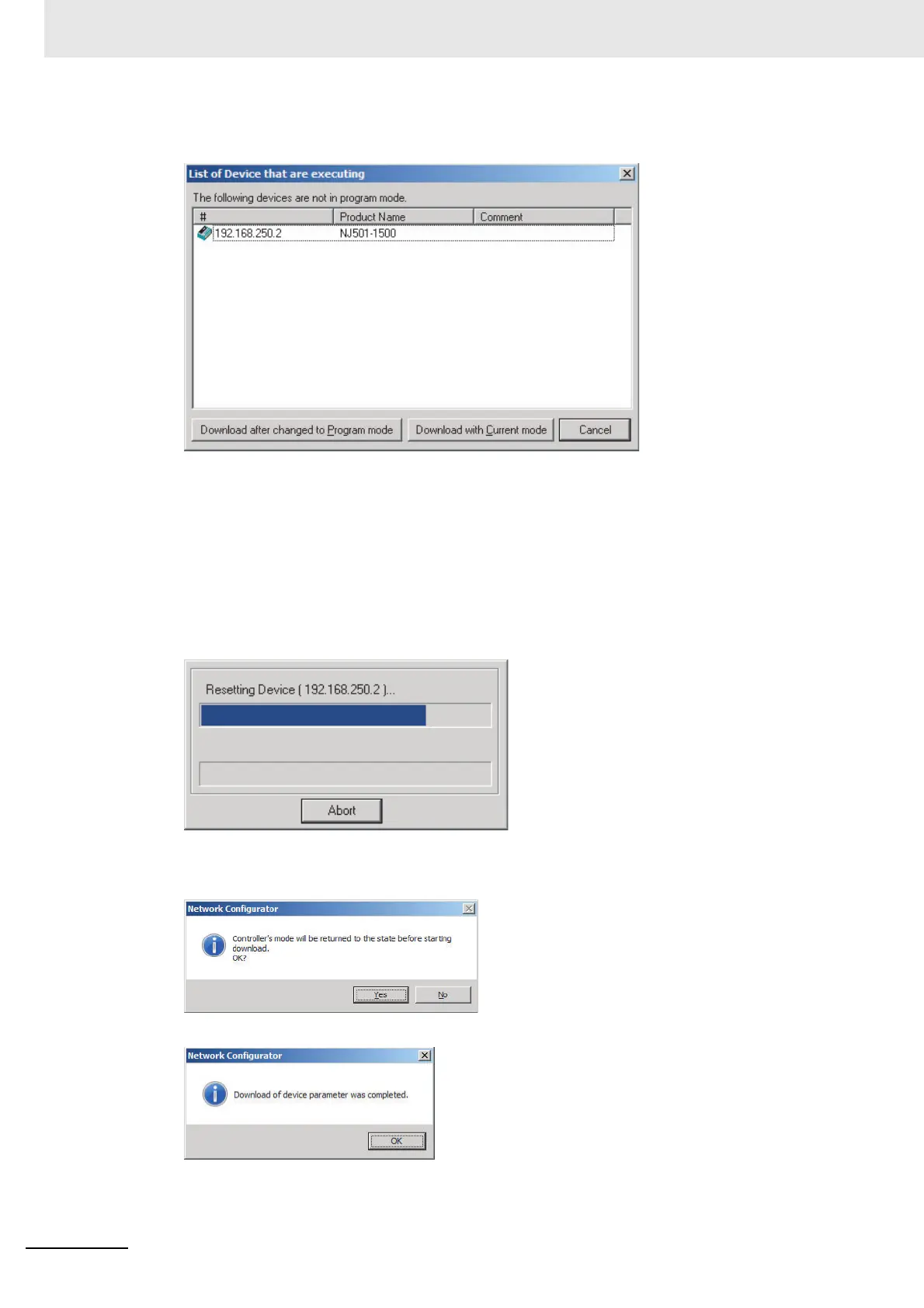

Click the Yes Button to download the tag data link parameters to the EtherNet/ IP Unit. The fol-
lowing dialog box is displayed if any of the CPU Units is not in PROGRAM mode.
If the Download after changed to Program mode Button is clicked, all CPU Units are changed
to PROGRAM mode and the parameters are downloaded. Confirm safety for all controlled
equipment before you change the CPU Units to PROGRAM mode. You can restore the operat-
ing modes after the parameters are downloaded.
You can click the Download with Current mode Button to download the parameters even
when one or more CPU Units is in RUN mode. The Download with Current mode Button is
disabled if the EtherNet/IP Unit does not support this function (e.g., revision 1 of CJ1W-EIP21 or
CS1W-EIP21).
During the download, the following progress monitor is displayed to show the progress of the
download.
If the operating mode of one or more CPU Units was changed to download the parameters, you
can return the CPU Units to the previous operating modes. If the No Button is clicked, the CPU
Units remain in PROGRAM mode.
4
The following dialog box is displayed to show that the download was completed.
