7 Tag Data Link Functions
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
7-2 Setting Tag Data Links
7
7-2-10 Uploading Tag Data Link Parameters
Uploading Individually from Particular Devices
1

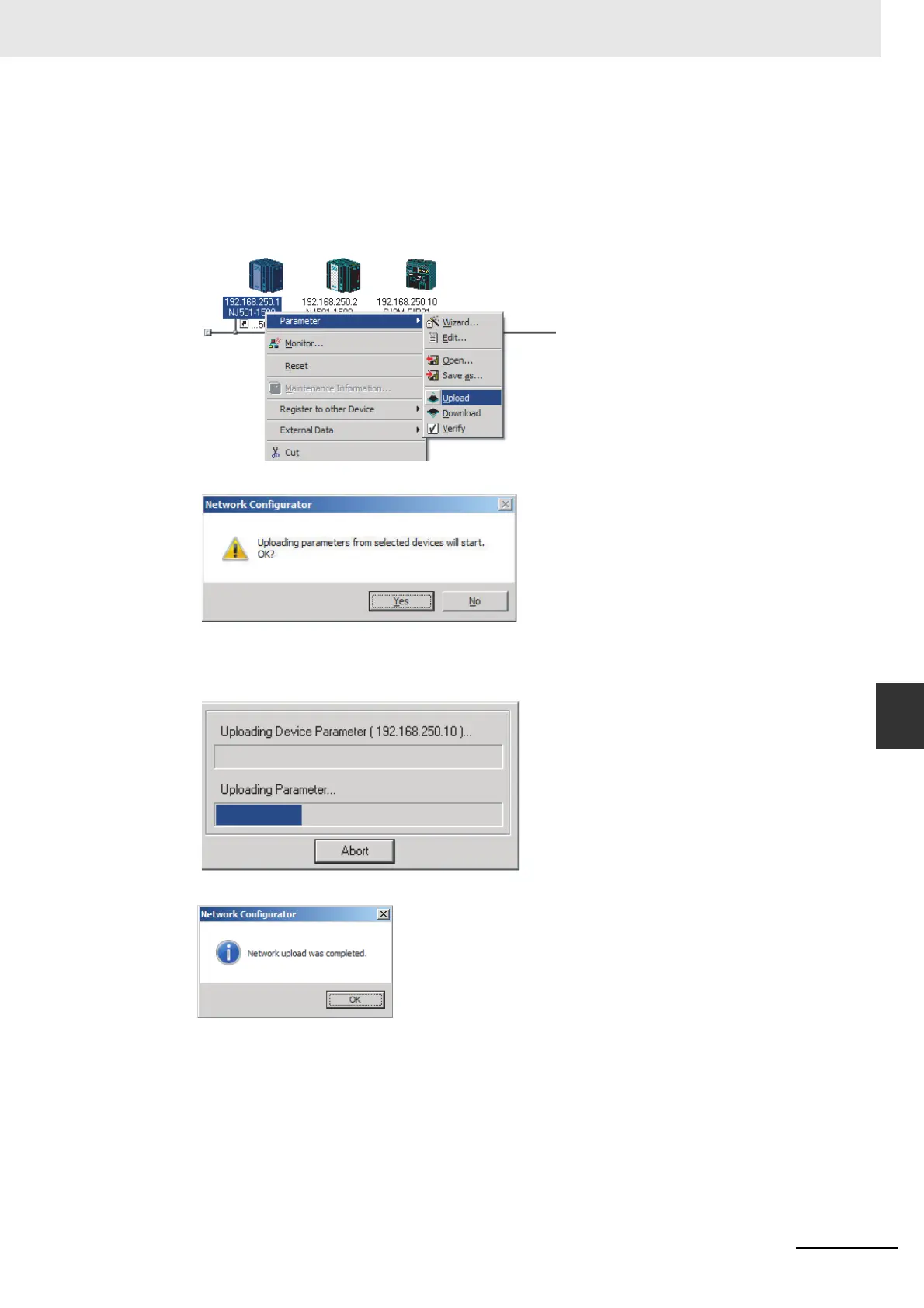

Connect the Network Configurator online and select the icon of the EtherNet/IP Unit from which
you want to upload the parameters. To select multiple nodes, press and hold the Shift Key or
the Ctrl Key while you select additional icons. (In the following example, 2 nodes are selected:
192.168.250.1 and 192.168.250.2.)
Right-click the icon to display the pop-up menu, and select Parameter - Upload.
2
The following dialog box is displayed.
Click the Yes Button or the No Button.
3
During the upload, the following progress monitor is displayed to show the progress of the
upload.
4
The following dialog box is displayed to show that the upload was completed.
