Versions
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
The view will change between the production information details and outline.
The information that is displayed is different for the Outline View and Detail View. The Detail
View displays the unit version, hardware version, and software versions. The Outline View dis-
plays only the unit version.
Note The hardware revision is separated by “/” and displayed on the right of the hardware version. The hardware
revision is not displayed for the Unit that the hardware revision is in blank.
 Checking the Unit Version of an EtherCAT Slave
You can use the Production Information while the Sysmac Studio is online to check the unit version
of an EtherCAT slave. Use the following procedure to check the unit version.
1 Double-click EtherCAT under Configurations and Setup in the Multiview Explorer. Or, right-
click EtherCAT under Configurations and Setup and select Edit from the menu.
The EtherCAT Tab Page is displayed.
2 Right-click the master on the EtherCAT Tab Page and select Display Production Information.
The Production Information Dialog Box is displayed.
The unit version is displayed after “Rev.”
 Changing Information Displayed in Production Information Dialog Box
1 Click the Show Detail or Show Outline Button at the lower right of the Production Information
Dialog Box.
The view will change between the production information details and outline.

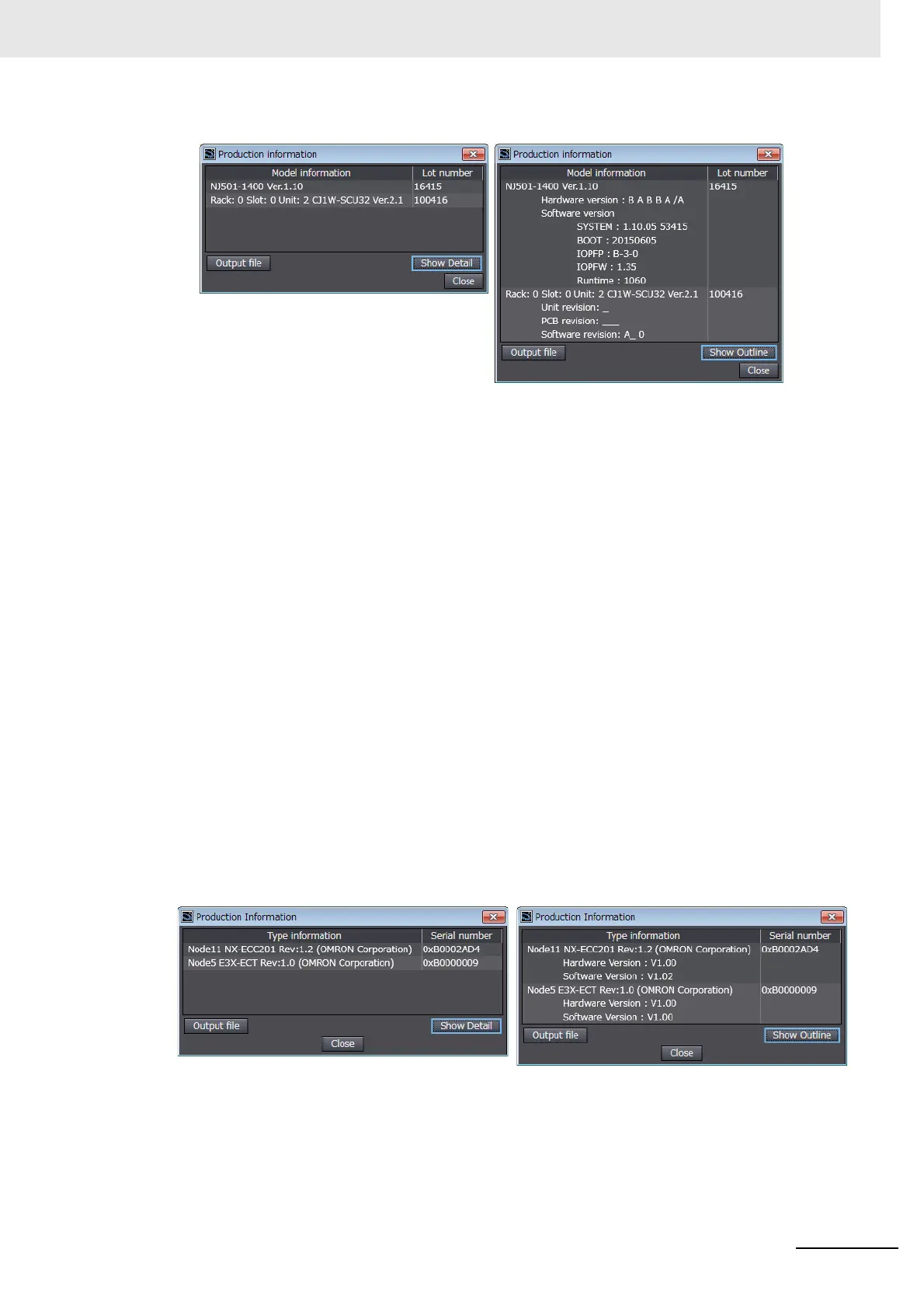

Outline View Detail View
Outline View Detail View
