Omron Sysmac NJ-series User Manual

8 CIP Message Communications
8-8
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
• Regardless of to which communications port (EtherNet/IP port 1 or 2) the data is actually input, you
can access both CPU Units (CPU#00 and CPU#01) that control the EtherNet/IP ports, via backplane
port.

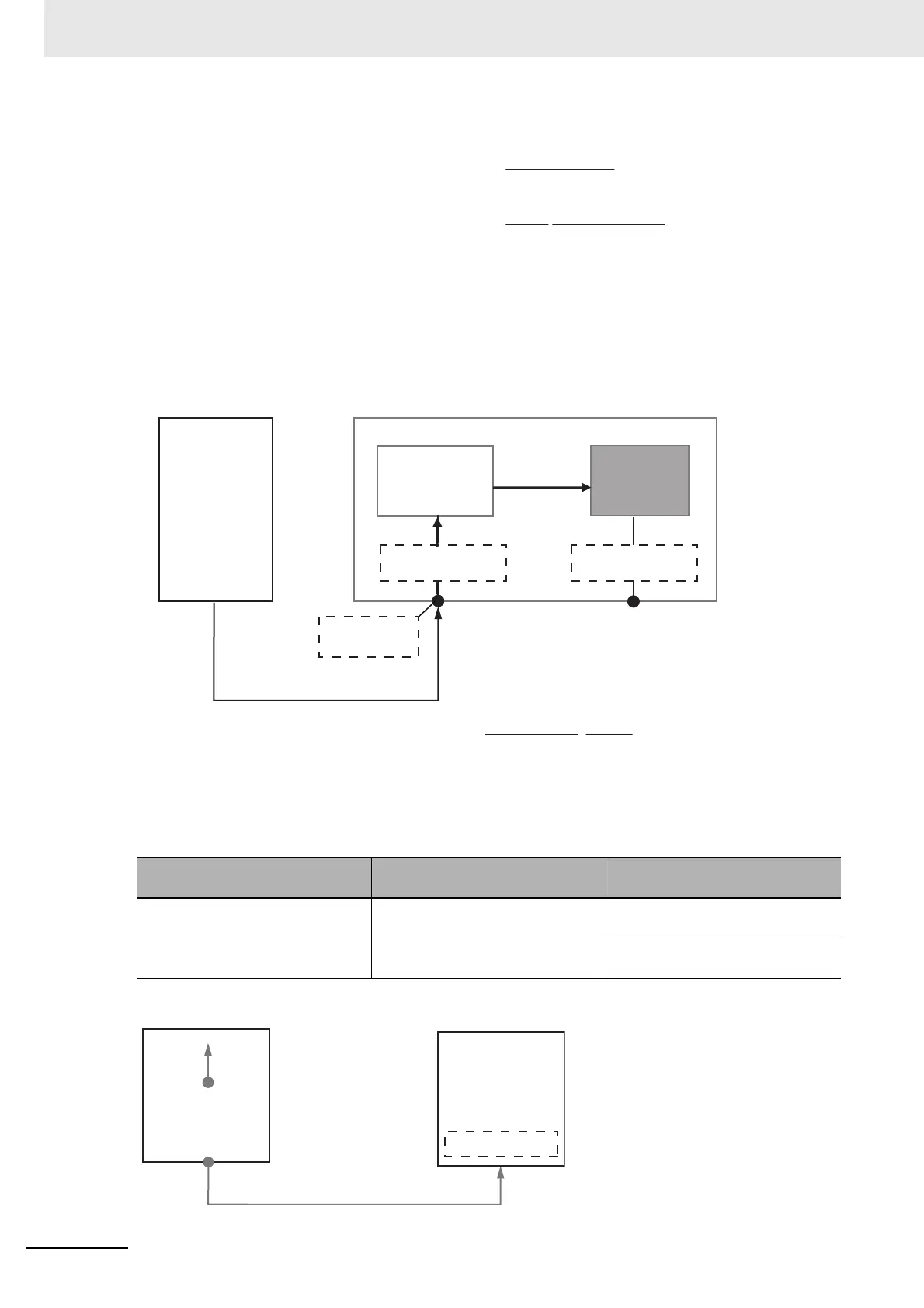

Example:
Inputting an Ethernet Link object (class ID: F6 hex) through built-in EtherNet/IP port 1 of the destina-
tion NX701 CPU Unit, and reading the settings and status of built-in EtherNet/IP port 2
 NX1P2 CPU Unit
The network type number and the remote address are determined as shown in the following table
according to whether the route type is (1) a Unit on the CPU Rack or (2) a communications port on a
Communications Unit.
Route
Network type number
(hexadecimal)
Remote address
(hexadecimal)
1. Output to Unit on CPU Rack #01 (backplane port) Remote Unit address (Refer to
Additional Information below.)
2. Output from communications
port on Communications Unit
#02 (Built-in EtherNet/IP port) IP address
Route Path
Output from built-in EtherNet/IP port 1 : 02\192.168.250.2
(a)
(b) (c)
Output from built-in EtherNet/IP port 2 : 01\#01 \02\192.168.251.2
(a)
(b)
Route Path : 02\192.168.250.1 \01\#01
(a) (b)
NX701 CPU Unit
Backplane
port (#01)
CPU#00
(Unit address 00 hex)
CPU#01
(Unit address 01 hex)
( * )
Built-in EtherNet/IP
port 1
Built-in EtherNet/IP
port 2
IP address :
192.168.250.1
Communications
port (#02)
Communications
port (#02)
IP address
Communications
port (#02)
BackPlane
Port (#01)
(1)
NX1P2
CPU Unit
(2)
