Omron Sysmac NJ-series

8 CIP Message Communications
8-12
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
• Destination address: ”#01” (CPU#01)
*1
*1 This is in order to output using the sender IP address of built-in EtherNet/IP port 2.
(b) Local CPU #01 to destination IP address
• Network type number: ”02” (Output to communication port)
• Destination address: Specify the destination IP address
(c) Destination CPU #01 to destination CPU #00
• Network type number: ”01” (Output to Backplane port)
• Destination address: ”#00” (CPU#00)

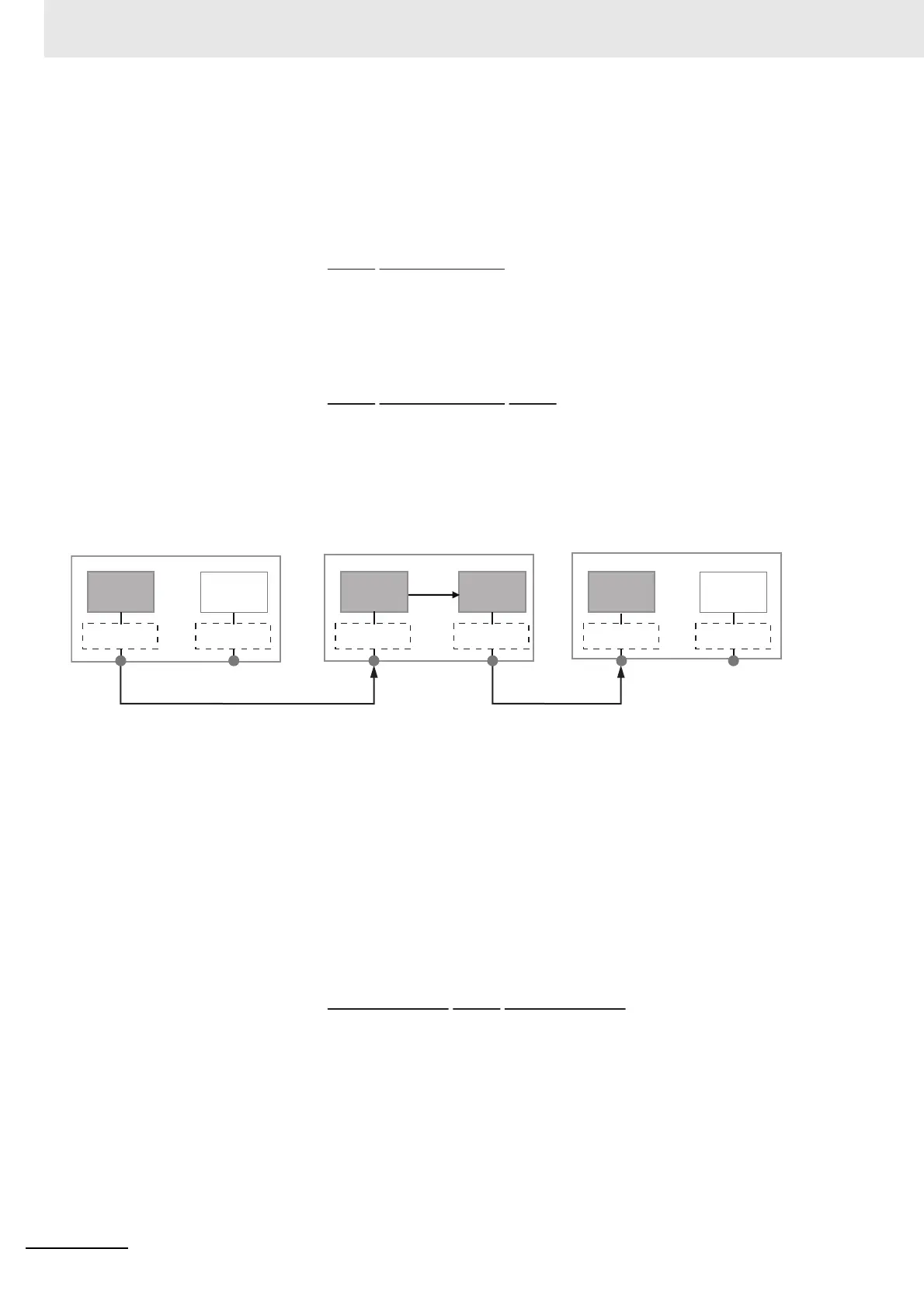

(5) Using an NX701 CPU as a relay unit (built-in EtherNet/IP port 1 to built-in EtherNet/IP
port 2)
(Local CPU #00 to destination CPU #00 via relay CPU #00 and relay CPU #01)
(a) Local CPU #00 to relay IP address
• Network type number: ”02” (Output to communication port)
• Destination address: Specify the relay IP address
(b) Relay backplane to relay CPU #01
• Network type number: ”01” (Output to Backplane port)
• Destination address: ”#01” (CPU#01)
*1
*1 This is in order to output using the sender IP address of built-in EtherNet/IP port 2.
(c) Relay CPU #01 to destination IP address
• Network type number: ”02” (Output to communication port)
• Destination address: Specify the destination IP address
Route Path : 01\#01 \02\192.168.251.2
(a) (b)
Route Path : 01\#01 \02\192.168.251.2\01\#00
(a) (b) (c)
(a)
(b)
(c)
Communications
port (#02)
Communications
port (#02)
Communications
port (#02)
Communications
port (#02)
Communications
port (#02)
Communications
port (#02)
Backplane
port (#01)
NX701 CPU Unit NX701 CPU Unit (Relay unit) NX701 CPU Unit
CPU#00
(Unit address
00 hex)
CPU#01
(Unit address
01 hex)
CPU#00
(Unit address
00 hex)
CPU#01
(Unit address
01 hex)
CPU#00
(Unit address
00 hex)
CPU#01
(Unit address
01 hex)
Built-in EtherNet/IP
port 1
Built-in EtherNet/IP
port 2
Built-in EtherNet/IP
port 1
Built-in EtherNet/IP
port 2
Built-in EtherNet/IP
port 1
Built-in EtherNet/IP
port 2
IP address :
192.168.250.2
IP address :
192.168.252.3
Route Path : 02\192.168.250.2\01\#01\02\192.168.252.3
(a) (b) (c)
