A-2 Use the Sysmac Studio to Set the Tag Data Links (EtherNet/IP Connections)
A
A-2-3 EtherNet/IP Connection Settings

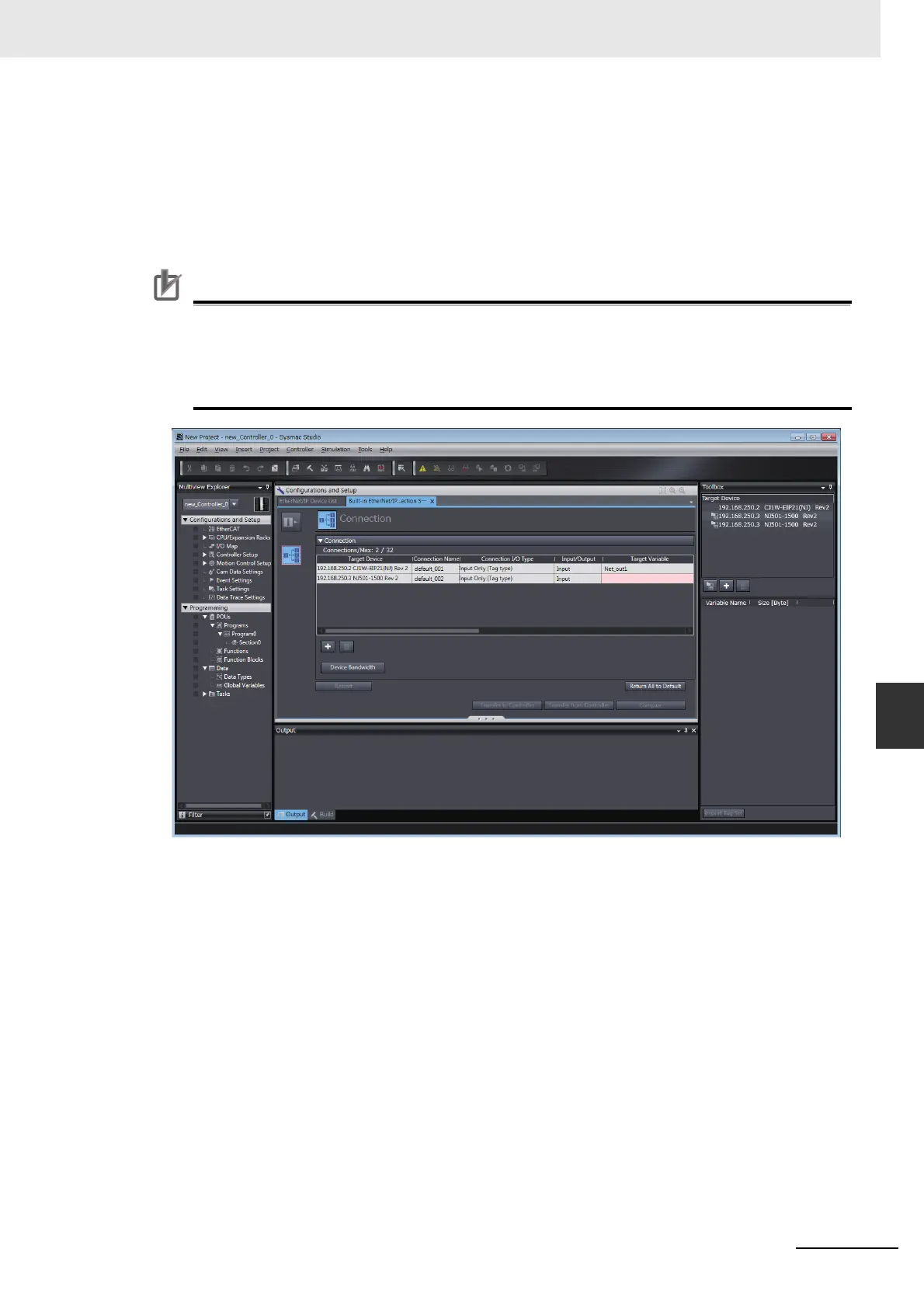

 EtherNet/IP Connection Settings (Connection Display) (Refer to Setting
Connections for the Originator Device on page A-17.)
Specify the target devices and set their connections.
For each connection, set the following information: Connection Name, Connection I/O Type, I/O, tar-
get device tag set (target variable), originator device tag set (originator variable), Packet Interval
(RPI), and Timeout Value.
Precautions for Correct UsePrecautions for Correct Use
If you changed the IP address, model or revision of the target device after making the connection
settings, perform the following.
With the Sysmac Studio version 1.11 or higher, change the connection settings entirely.
With the Sysmac Studio version 1.10 or lower, create the connections again.
