Appendices
A-8
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)

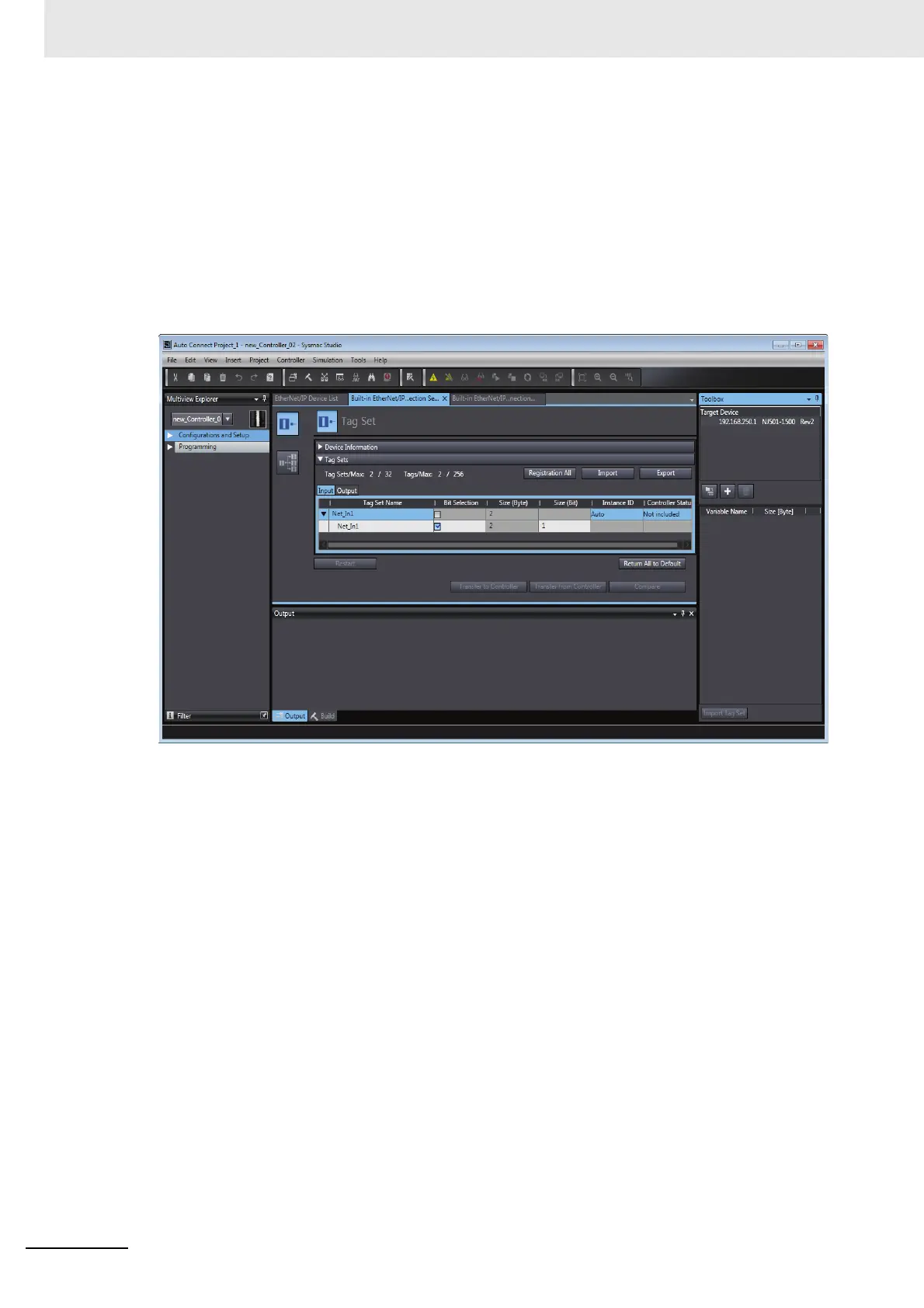

 EtherNet/IP Connection Settings (Tag Set Display) (Refer to Registering the
Tag and Tag Set on page A-14.)
Register tag sets required to create connections. Each tag set represents the data that is sent and
received through a connection. You can register up to eight tags in one tag set.
The name and size of the tag must be the same as those of the network variable
*1
.
Set whether to include the Controller status information in tags for the tag sets. You can also set the
data output operation at a fatal error occurrence for output tags.
*1 Variables with its Network Publish attribute set to Output or Input in the Global Variable Table are called net-
work variables.
