Appendices
A-14
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
Register the required tag and tag set for the EtherNet/IP connections.
You can register tags and tag sets in the EtherNet/IP Connection Setting Tab Page.
Precautions for Correct UsePrecautions for Correct Use
Make the following settings to refresh all of the tag data in the same tag set at the same time.
• Use the Sysmac Studio, in advance, to specify the same refreshing task for all of the variables
that are assigned to tags in the tag set.
• If you use the NJ-series CPU Unit, do not place tag variables that have AT specifications in I/O
memory and tag variables that do not have AT specifications in the same tag set.
1

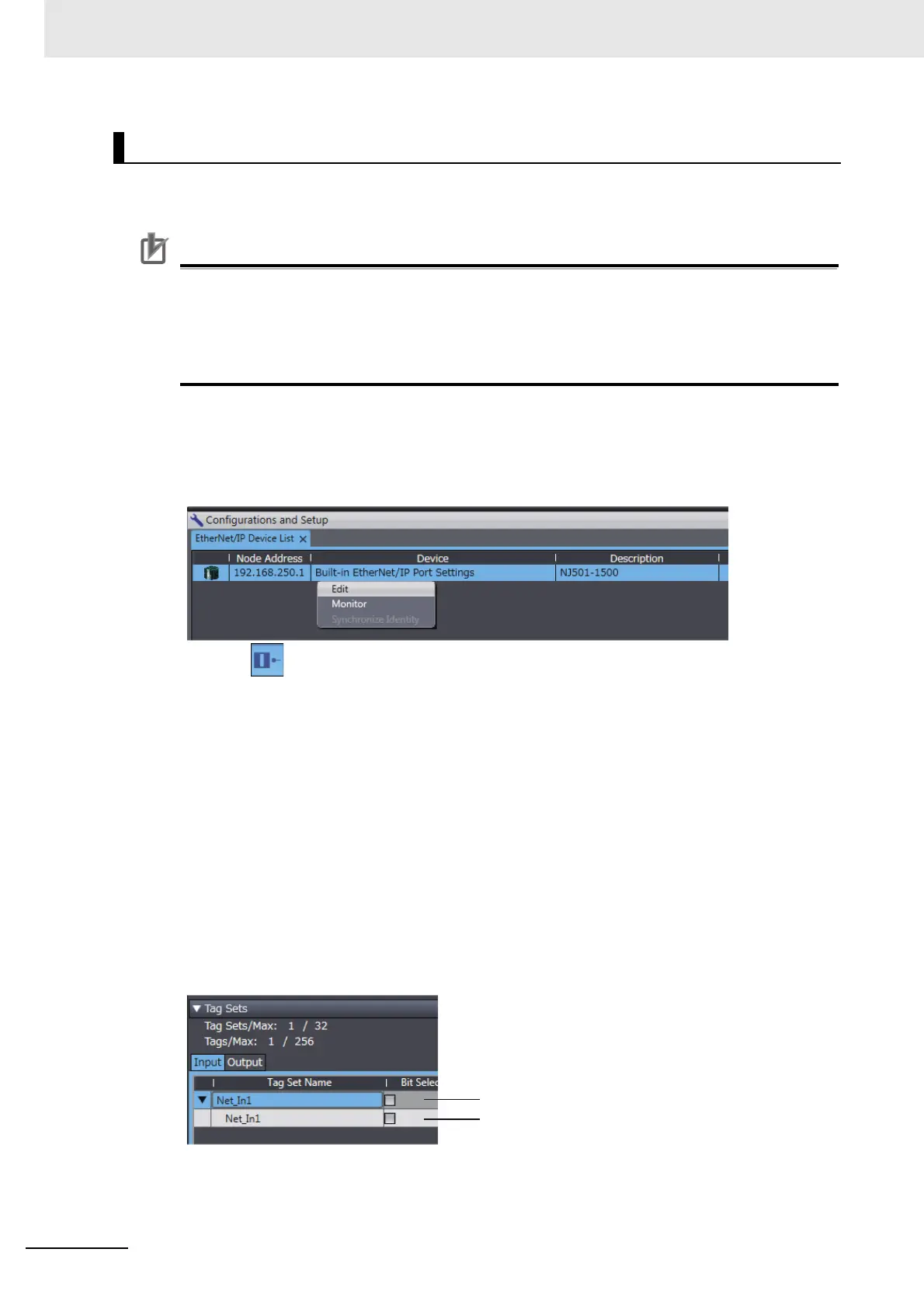

Select EtherNet/IP Connection Settings from the Tools Menu.
The EtherNet/IP Device List Tab Page is displayed.
2
In this example, right click Built-in EtherNet/IP Port Settings for the originator device and select
Edit from the menu to open the EtherNet/IP Connection Setting Tab Page.
3
Click the (Show Tag Set Display) icon in the EtherNet/IP Connection Setting Tab Page.
4
Click the Input tab to switch to the Input Tab Page. Register the tag set and the tag.
Use one of the following methods to register the tag set and the tag.
5
Register tags and tag sets independently.
(1) Right-click anywhere in the Input Tab Page of the EtherNet/IP Connection Setting Tab
Page and select Create New Tag Set from the menu.
(2) Enter tag set name Net_In1 directly into the list in the Input Tab Page.
(3) Right-click anywhere in the Input Tab Page and select Create New Tag from the
menu.
(4) Enter tag name Net_In1.
Registering the Tag and Tag Set
• Independent registration : Manually registers network variables in the Controller
as tags.
• Batch registration : Registers all network variables in the Controller as tags
at the same time.
Tag set name
Tag name
To Next Page
