Appendices
A-20
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
8

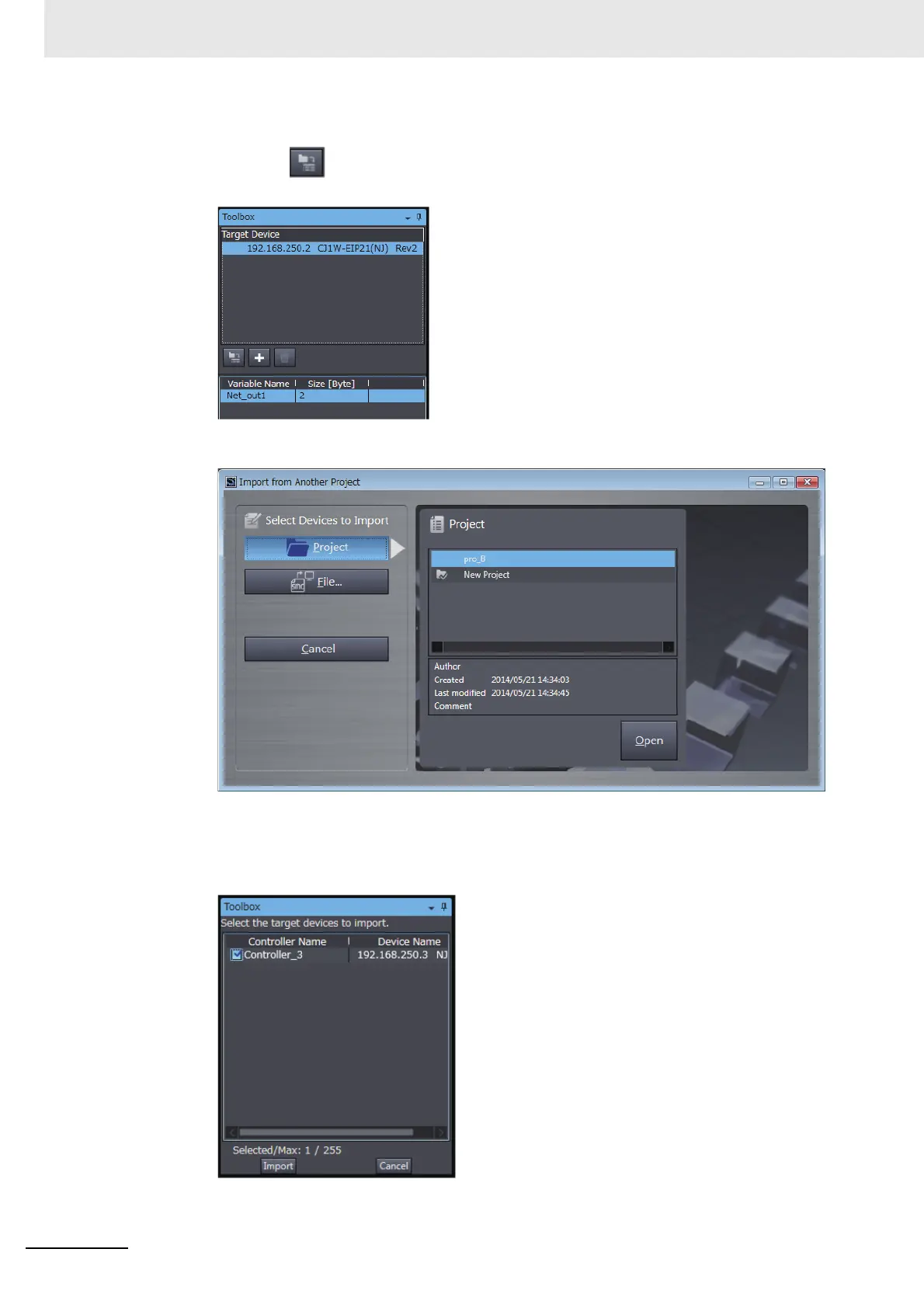

Import devices that are registered in another project.
(1) Click the (Import a device from another project) Button in the Toolbox on the
right of the EtherNet/IP Connection Setting Tab Page.
(2) The Import from Another Project Dialog Box is displayed. Click the Project Button,
select a project to import and click the Open Button.
(3) The list of EtherNet/IP devices registered in the selected project will be displayed.
Select the target devices to import, and click the Import Button.
Note Only the project for which the EtherNet/IP connection settings are set will be displayed.
The imported EtherNet/IP devices are added to the Target Device List in the Toolbox.
