A-21
Appendices
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
A-2 Use the Sysmac Studio to Set the Tag Data Links (EtherNet/IP Connections)
A
A-2-4 Making the EtherNet/IP Connection Settings with the
Sysmac Studio
9
Register devices as required.
(1) Click the + Button under the Target Device List in the Toolbox.

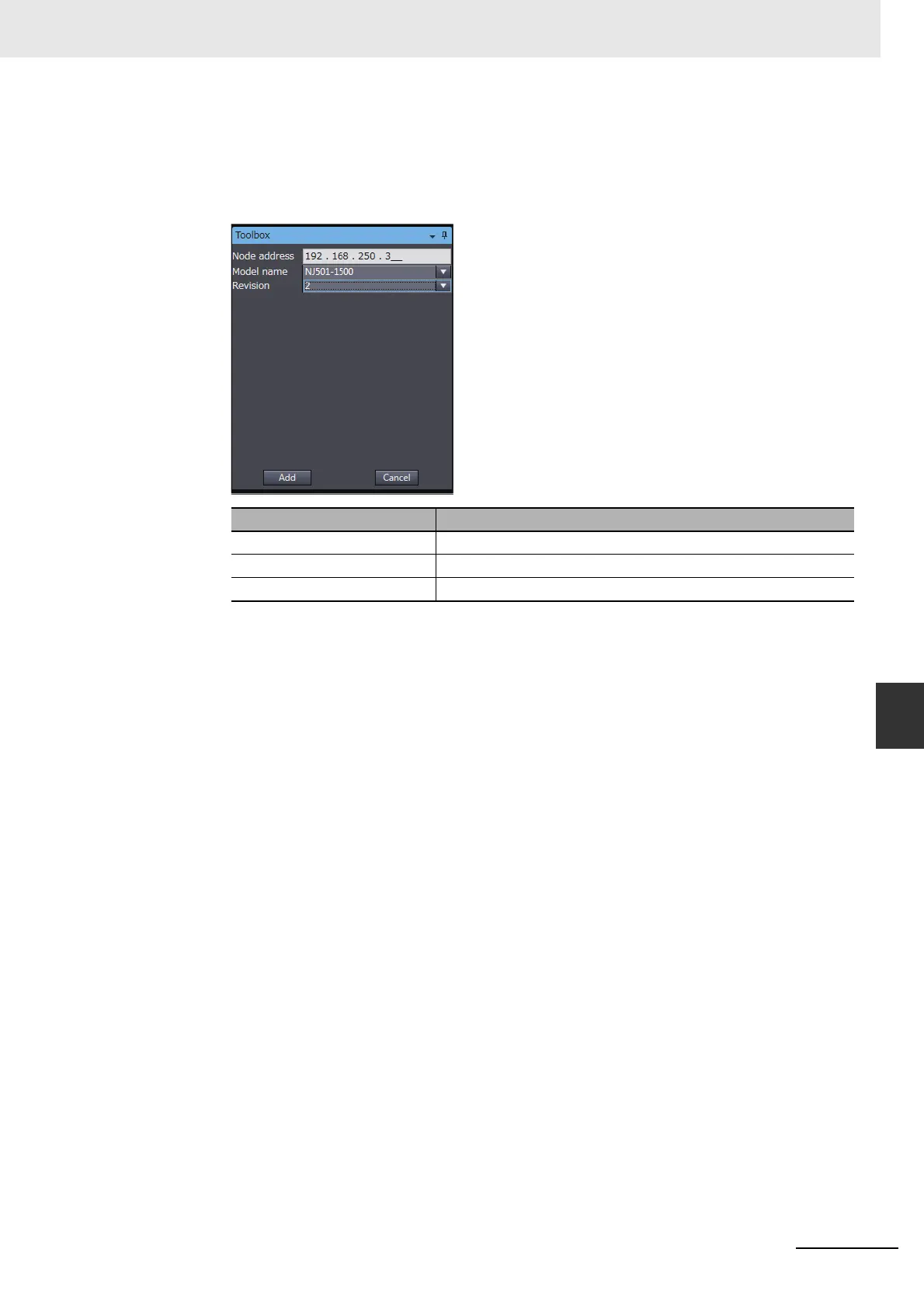

The Add Target Device Pane is displayed.
(2) Enter relevant items for the target devices to add.
(3) Here, set the following items for Controller 3 and click the Add Button.
The target device is added to the Target Device List in the Toolbox.
Node address: 192.168.250.3
Model name: NJ501-1500
Revision: 2
(4) You can click the Import Tag Set Button to import the tag sets that are set in the Net-
work Configurator to the target devices.
Select Export to File from the To/From File Button in the Tag Sets Tab Page of the Edit
Device Parameters Dialog Box to generate CSV files to import.
Menu Description
Node address Enter the target device IP address.
Model name Select the target device model.
Revision Select the revision of the target device.
To Next Page
