Adding EDS Files
Note The Modular EDS device is supported by the Sysmac Studio version 1.11 or higher.
1

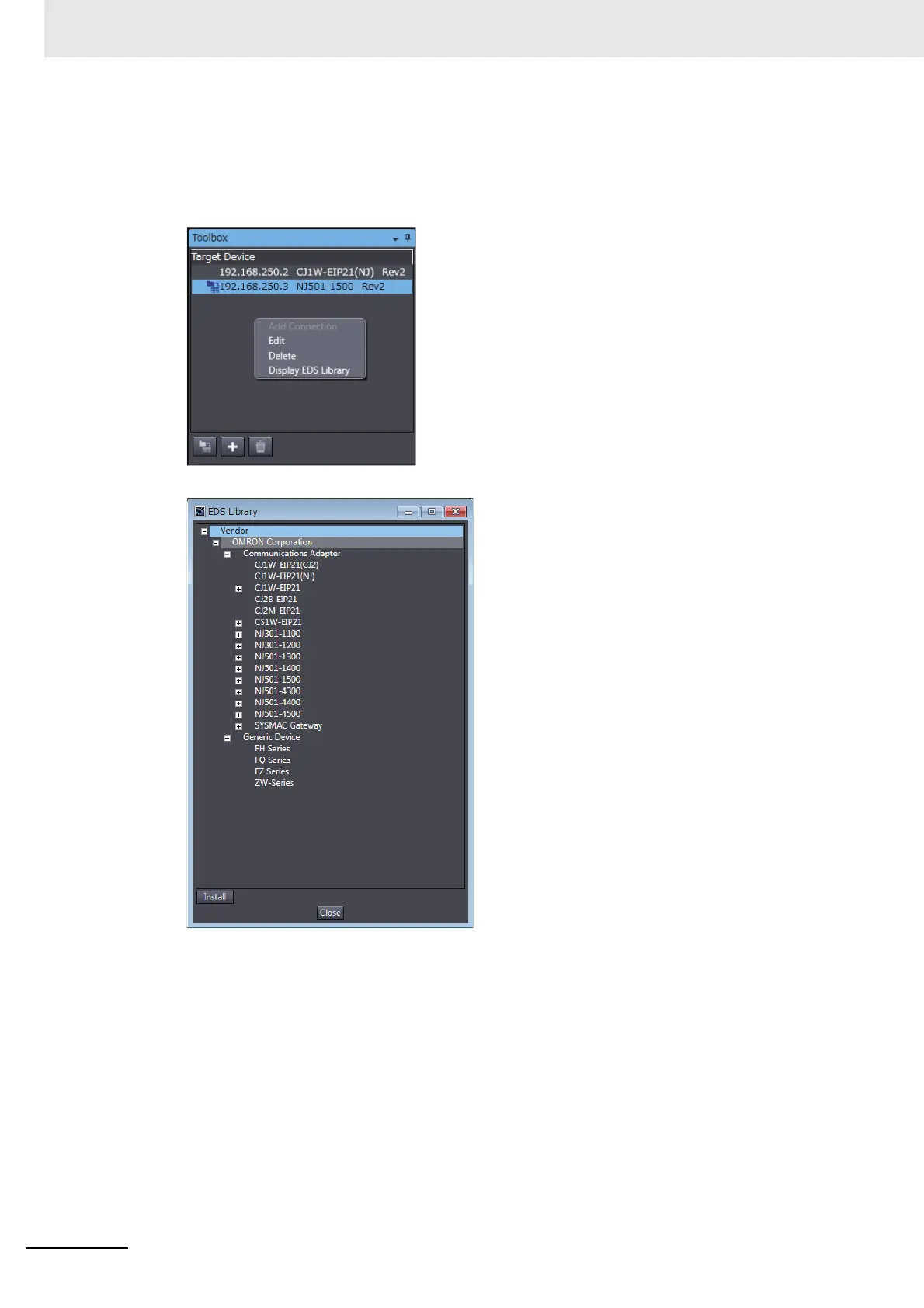

Right-click anywhere in the Target Device List in the Toolbox of the EtherNet/IP Connection Set-
ting Tab Page and select Display EDS Library from the menu.
2
The EDS Library Dialog Box is displayed. Click the Install Button.
3
Select the EDS file to add, and then click the Open Button.
The EDS file is added.
4
The EtherNet/IP device with the EDS file installed is added to the EDS Library.
Devices listed in the EDS Library are used as a candidate device list when adding devices to the
Target Device List in the Toolbox of the EtherNet/IP Connection Setting Tab Page.
