Omron VARISPEED F7 User Manual

5-24
5

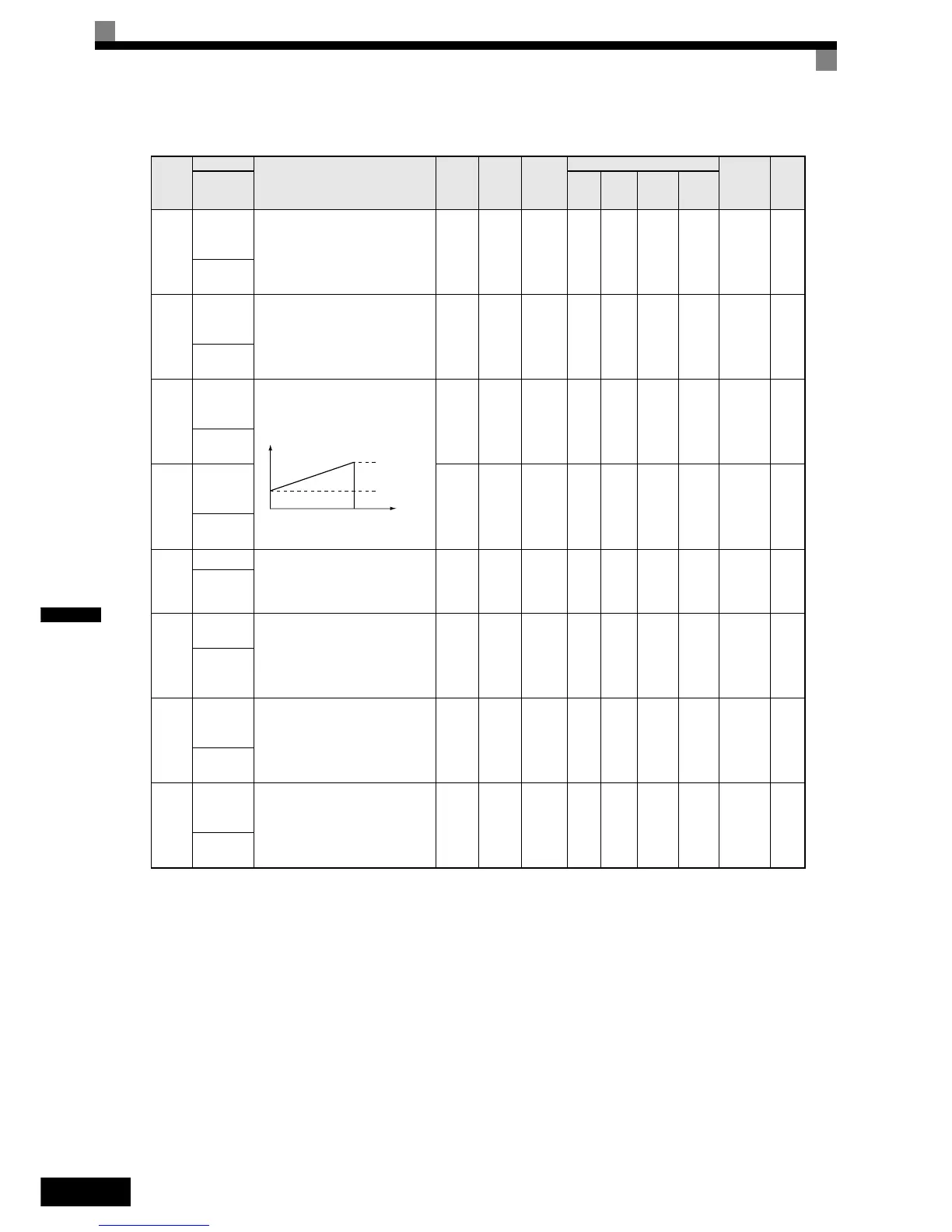

Speed Control (ASR): C5
Param
eter
Num-
ber
Name
Description
Set-
ting
Range
Fac-
tory
Setting
Change
during
Opera-
tion
Control Methods
MEMO-
BUS
Register
Page
V/f
V/f
with
PG
Open
Loop
Vector
Closed
Loop
Vector
Display
C5-01
ASR pro-
portional
(P) gain 1
Sets the proportional gain of the
speed loop (ASR)
0.00 to
300.00
* 1
* 1. The setting range is 1.00 to 300.00 if Closed Looop Vector control is used.
20.00
* 2
* 2. When the control method is changed, these values are reset to factory setting for the selectred control mode. (The Closed Loop Vector control
factory settings are given.)
Yes No A N o A 21 BH 6-39
ASR P
Gain 1
C5-02
ASR inte-
gral (I)
time 1
Sets the integral time of the speed
loop (ASR).
0.000
to
10.000
0.500 s
*2
Yes No A N o A 21 CH 6-39
ASR I
Time 1
C5-03
ASR pro-
portional
(P) gain 2
Usually changing this setting is not
necessary.
0.00 to
300.00
*1
20.00
*2
Yes No A N o A 21D H 6-39
ASR P
Gain 2
C5-04
ASR inte-
gral (I)
time 2
0.000
to
10.000
0.500 s
*2
Yes No A N o A 21E H 6-39
ASR I
Time 2
C5-05
ASR limit Sets the upper limit for the compen-
sation frequency for the speed con-
trol loop (ASR) as a percentage of
the maximum output frequency.
0.0 to
20.0
5.0% No No A No No 21FH 6-39
ASR Limit
C5-06
ASR delay
time
Sets the filter time constant; the time
from the speed loop to the torque
command output. Usually changing
this setting is not necessary.
0.000
to
0.500
0.004
ms
No No No No A 220H 6-39
ASR
Delay
Time
C5-07
ASR
switching
frequency
Sets the frequency for switching
between Proportion Gain 1, 2 and
Integral Time 1, 2.
0.0 to
150.0
* 3
* 3. The given setting range is valid if Heavy Duty is selected (C6-06=0, default setting). If Normal Duty 1 or 2 is selected (C6-01= 1 or 2) the setting
range will be 0.0 to 400.0Hz.
0.0 Hz No No No No A 221H 6-39
ASR Gain
SW Freq
C5-08
ASR inte-
gral (I)
limit
Set the parameter to a small value to
prevent any radical load change. A
setting of 100% is equal to the maxi-
mum output frequency.
0 to
400
400% No No No No A 222H 6-39
ASR I
Limit
P, I
0 E1-04
P=C5-01
I=C5-02
P=C5-03
I=C5-04
Motor
speed (Hz)
