Omron ZX Series User Manual

RUN Mode Section 4-3
114
n Incident Level Display
The incident level is displayed.
n Resolution Display
The resolution of the linear output is displayed.
This display cannot be selected in Intensity Mode.
POINT

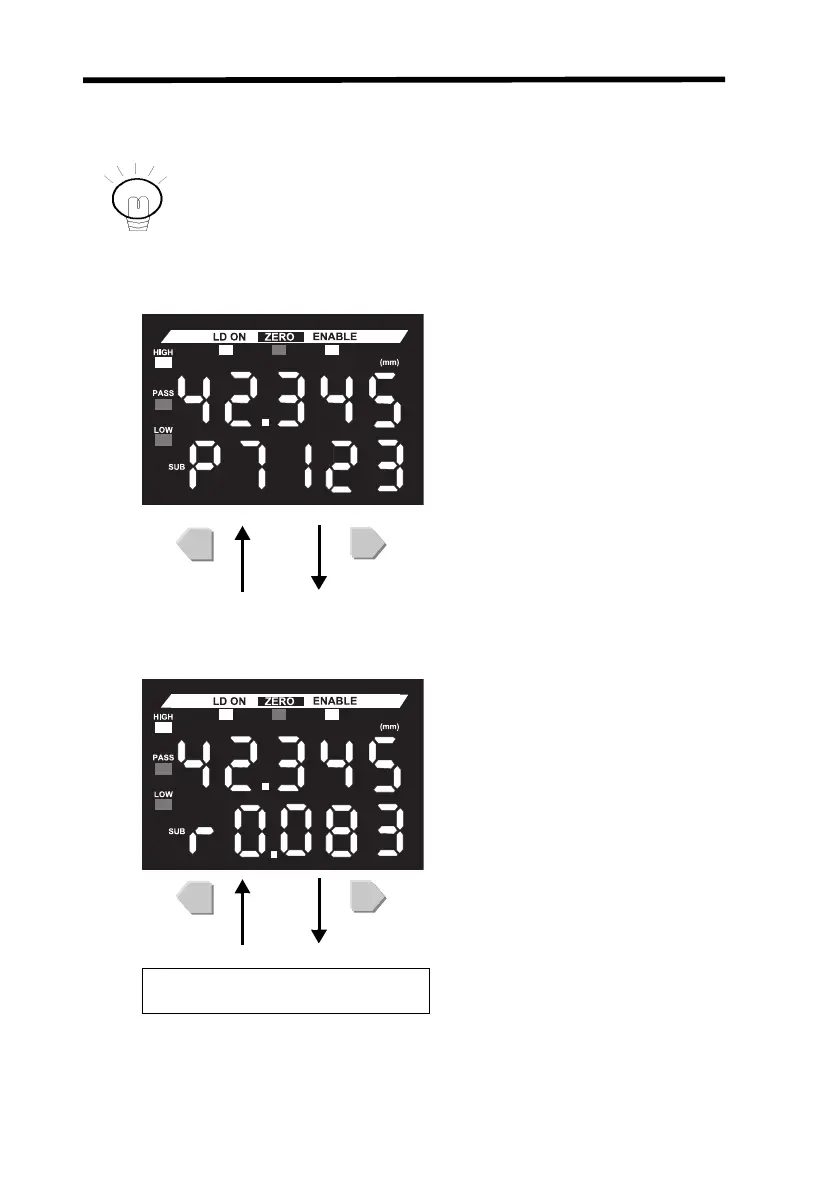

The measured value is displayed on the
main display.
The incident level is displayed on the
sub-display. The display range is 0 to
9999. “P” is displayed in the leftmost
digit. The decimal point is not displayed.
LEFT Key RIGHT Key
The measured value is displayed on the
main display.
The resolution is displayed on the sub-
display.
“r” is displayed in the leftmost digit.
The display is updated at an approxi-
mately 1-second interval.
LEFT Key RIGHT Key
The threshold value display is resumed.

Omron ZX Series Specifications

General

Power Supply Voltage	12 to 24 VDC ±10%
Protection Rating	IP67
Output Type	NPN or PNP
Protection Circuit	Reverse polarity protection, short-circuit protection
Operating Temperature	-25 to 55°C (-13 to 131°F)
