Omron ZX Series User Manual

Names of Sensor Parts Section 1-1
3

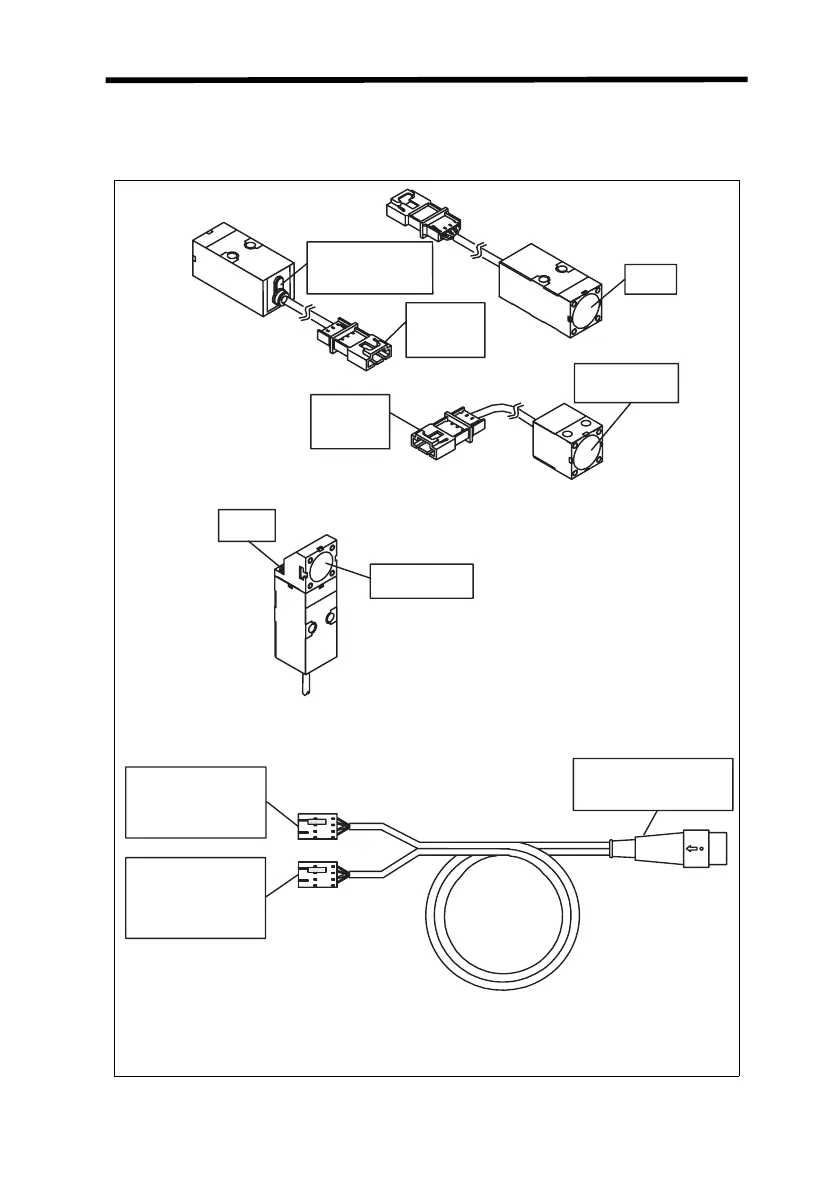

1-1-2 Through-beam Sensor Heads
A Through-beam Sensor Head is used for length measurements and con-
sists of two main parts: An Emitter and a Receiver.
Emitter
Emitter
Laser ON indicator
(green)
Lit when light is emitted.
Emitter-side
Sensor Head
connector
Receiver-side
Sensor Head
connector
Light
emitter
Light receiver
(optical filter)
Receiver
Side-view Attachment
Mounting
screw
Emitting/receiving
section
Sensor Head to Amplifier Unit
Connecting Cable (1.5 m)
Emitter-side Sensor
Head connector
Cable color: Gray
Receiver-side
Sensor Head
connector
Cable color: Black
Amplifier Unit
connector

Omron ZX Series Specifications

General

Power Supply Voltage	12 to 24 VDC ±10%
Protection Rating	IP67
Output Type	NPN or PNP
Protection Circuit	Reverse polarity protection, short-circuit protection
Operating Temperature	-25 to 55°C (-13 to 131°F)
