Omron ZX Series User Manual

Dimensions Section 6-2
164

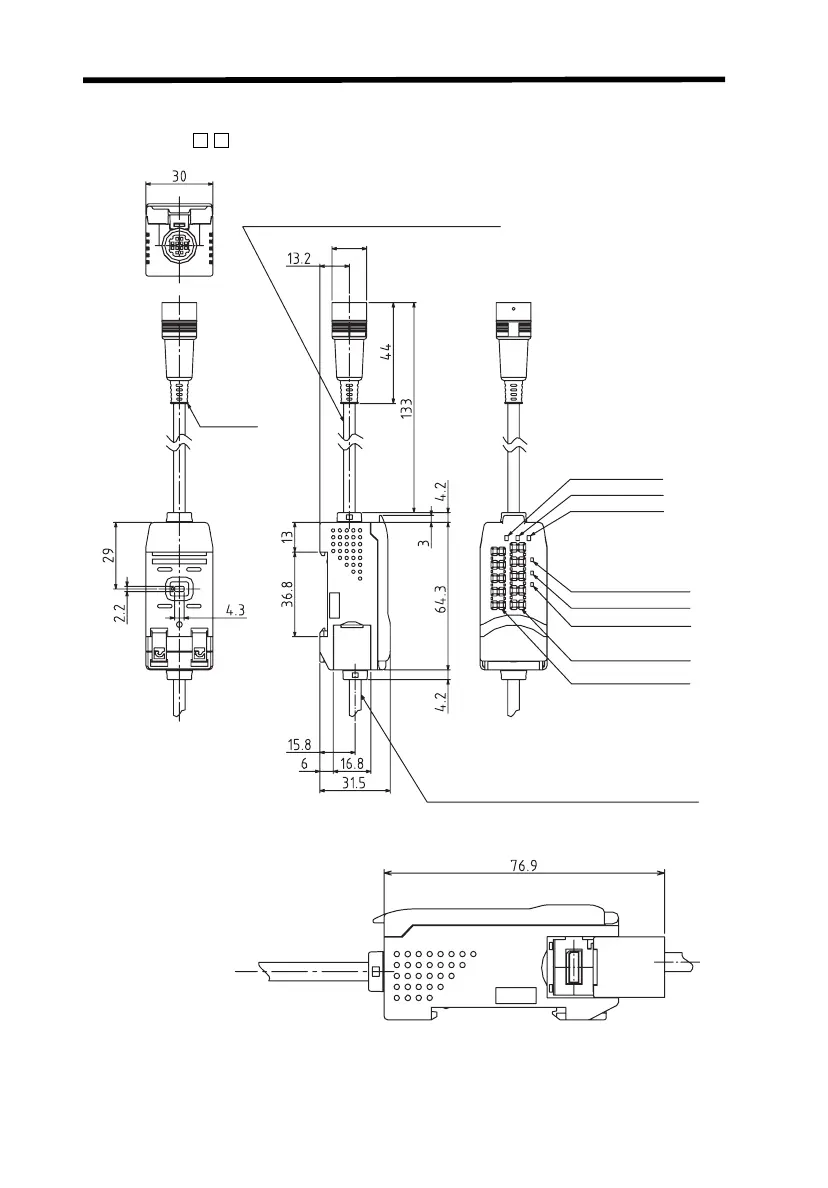

6-2-3 Amplifier Units
n ZX-LDA
Vinyl-insulated round cable, 5.1 dia., 9 conductors
(cross-sectional area of conductor: 0.09 mm
2
,
Insulator diameter: 0.7 mm)
Standard length: 0.1 m
Vinyl-insulated round cable, 5.2 dia., 10 conductors
(cross-sectional area of conductor: 0.09 mm
2
,
Insulator diameter: 0.7 mm)
Standard length: 2 m
Connector
LOW indicator
PASS indicator
HIGH indicator
Laser ON indicator
Zero reset indicator
Enable indicator
Main display
Sub-display
15.5 dia.
Connector Cover Dimensions when Open

Omron ZX Series Specifications

General

Power Supply Voltage	12 to 24 VDC ±10%
Protection Rating	IP67
Output Type	NPN or PNP
Protection Circuit	Reverse polarity protection, short-circuit protection
Operating Temperature	-25 to 55°C (-13 to 131°F)
