Omron ZX Series User Manual

I/O Circuit Diagrams Section 1-3
6

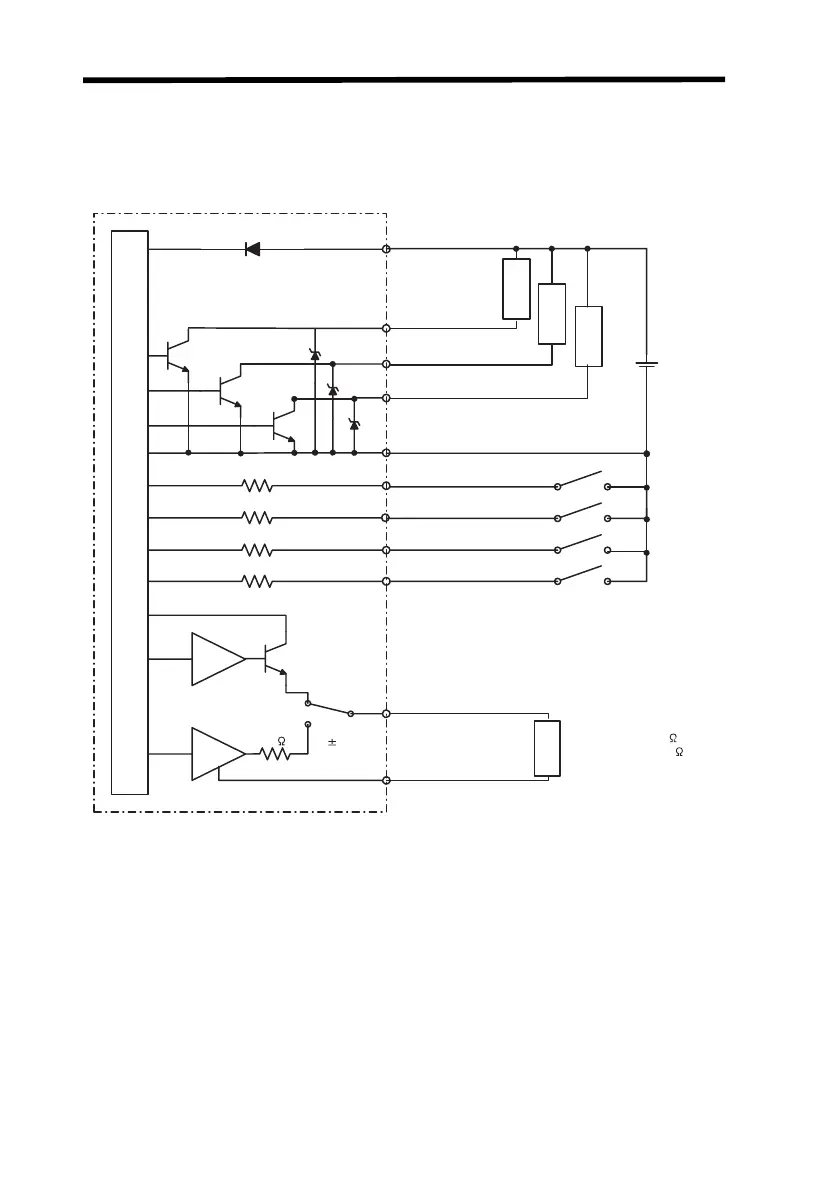

1-3 I/O Circuit Diagrams
1-3-1 NPN Amplifier Unit: ZX-LDA11
100
Load
Current output
4 to 20 mA
Voltage output
4 V
Load
Load
Load
12 to 24 VDC
Brown
Blue
White
Green
Gray
12 to 24 VDC
HIGH output
PASS output
LOW output
GND (0 V)
Pink
Purple
Orange
Red
Black
Shield
Laser OFF input
Zero reset input
Reset input
Linear output
Linear output GND
Current/voltage
switch
Current output: 300 max.
Voltage output: 10 min.k
Internal circuits
Timing input

Omron ZX Series Specifications

General

Power Supply Voltage	12 to 24 VDC ±10%
Protection Rating	IP67
Output Type	NPN or PNP
Protection Circuit	Reverse polarity protection, short-circuit protection
Operating Temperature	-25 to 55°C (-13 to 131°F)
