Omron ZX Series User Manual

T (Threshold) Mode Section 4-4
122
4-4-2 Inputting Threshold Values Directly
The threshold values can be input directly without using the teaching func-
tion. Threshold values can also be fine-tuned after teaching. The mea-
sured value is displayed on the main display and the threshold value is
displayed on the sub-display.
n Changing the Numeric Value
Set the mode switch to T.
Select the threshold value that is to be
input directly using the threshold switch.
Press the UP, DOWN, RIGHT, or LEFT
Key.
Direct input will be started.
RUN T FUN
H L
The leftmost digit of the threshold value
will flash on the sub-display.

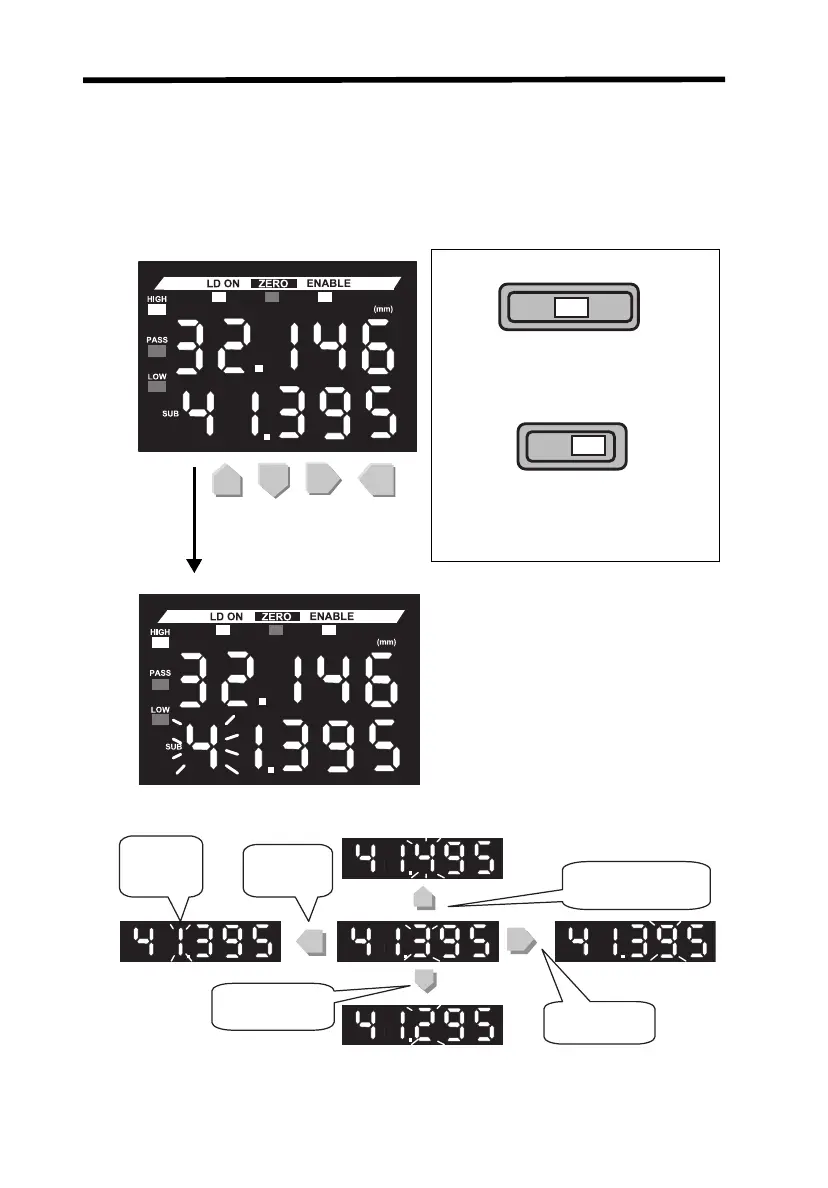

Change the numeric value using the
procedure shown in the following figure.
Press the UP, DOWN,
RIGHT, or LEFT Key.
The digit
being set
flashes.
Moves to a
higher digit.
Moves to a
lower digit.
Increments the
numeric value.
Decrements the
numeric value.

Omron ZX Series Specifications

General

Power Supply Voltage	12 to 24 VDC ±10%
Protection Rating	IP67
Output Type	NPN or PNP
Protection Circuit	Reverse polarity protection, short-circuit protection
Operating Temperature	-25 to 55°C (-13 to 131°F)
