Omron ZX Series User Manual

Installation Section 1-5
12

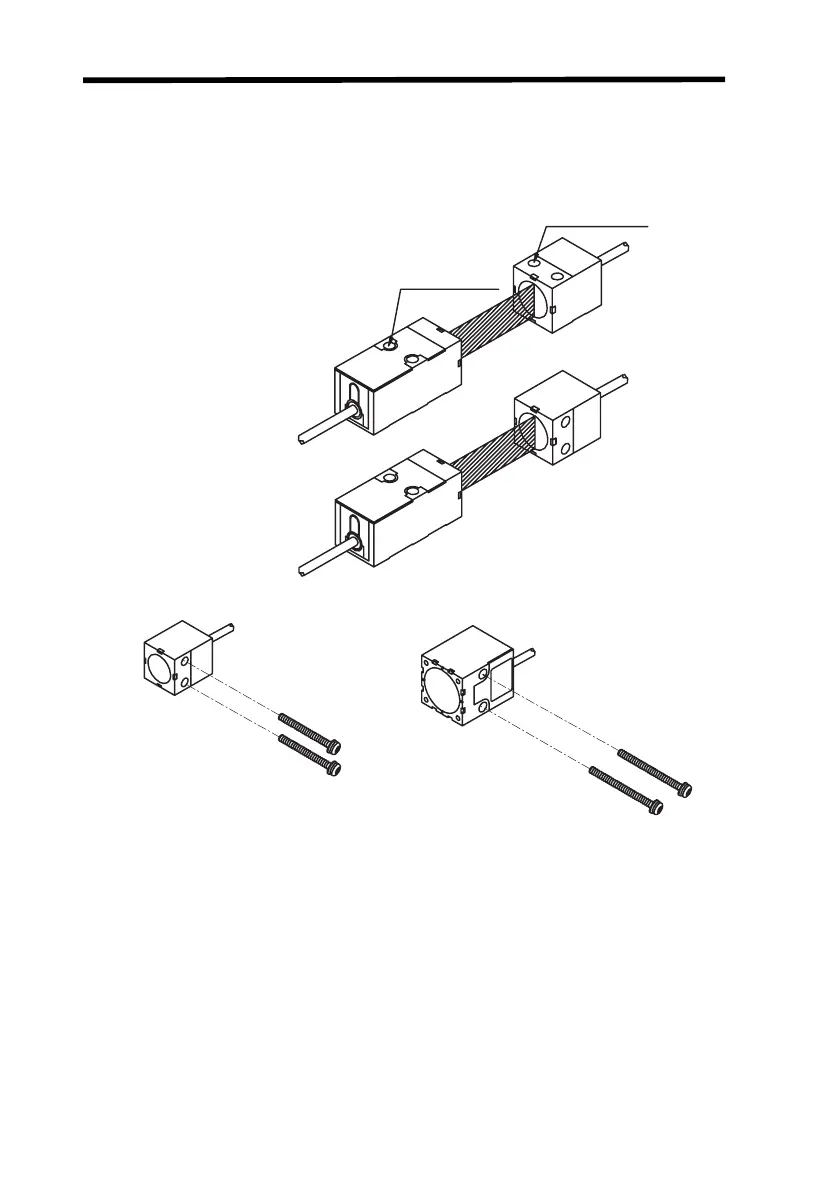

1-5-2 Through-beam Sensor Heads
Installation
• The Emitter and Receiver must be installed in the same direction to align
the laser beam.
• Tighten the screws to a torque of 0.3 N⋅m or less.
Emitter
Mounting hole
Receiver
Mounting hole
Correct
Incorrect
M3 screws
ZX-LT001/LT005
M3 screws
ZX-LT010

Omron ZX Series Specifications

General

Power Supply Voltage	12 to 24 VDC ±10%
Protection Rating	IP67
Output Type	NPN or PNP
Protection Circuit	Reverse polarity protection, short-circuit protection
Operating Temperature	-25 to 55°C (-13 to 131°F)
